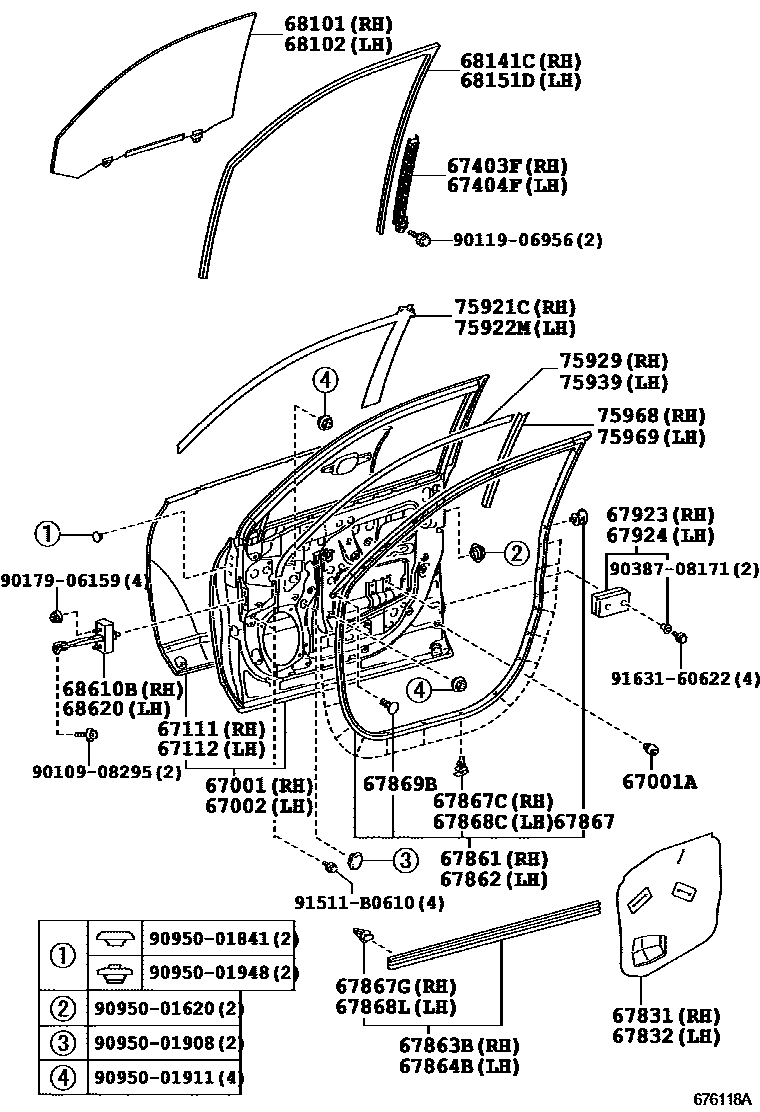

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*HSEA,T=4.0,S.GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*HSEA,T=4.0,S.GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
9010908295
main90109-08295
9011906956
main90119-06956
9017906159
main90179-06159
9038708171
main90387-08171
9095001620
main90950-01620
9095001841
main90950-01841
9095001908
main90950-01908
9095001911
main90950-01911
9095001948
main90950-01948
91511B0610
main91511-B0610
9163160622
main91631-60622
44 parts on this diagram · 2 diagrams in section
