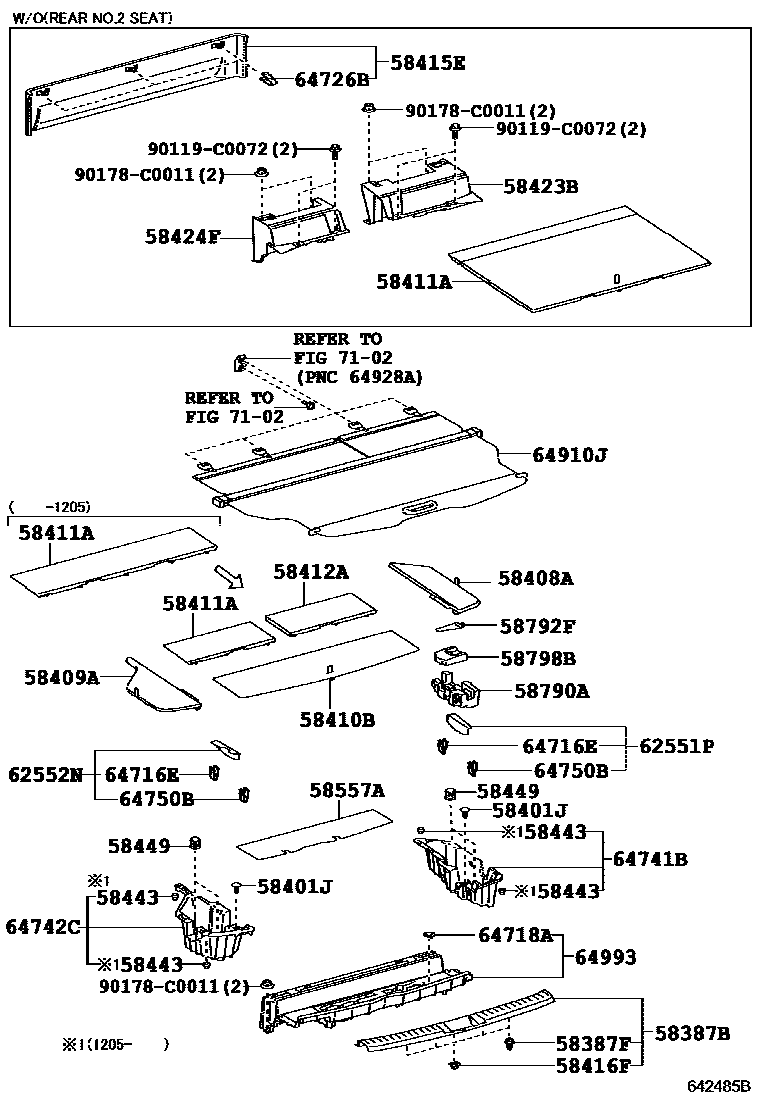

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main58387-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-10161iASU40,GSU45¥90200905-201205

58401JCLIP(FOR DECK BOAD)

main90467-06020-C0iASU40,GSU45200905-201503

BLACK

sub90467-06020¥190

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-0E020-C0iASU40,GSU45..LIMD,SPO200905-201304

BLACK,TRIM2#

sub58408-0E040

main58408-0E020-E0iASU40,GSU45200905-201304

SAND BEIGE,TRIM4#

sub58408-0E040

main58408-0E040-C0iASU40,GSU45..LIMD,SPO201305-201503

BLACK,TRIM2#

main58408-0E040-E0iASU40,GSU45201305-201503

SAND BEIGE,TRIM4#

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-0E020-C0iASU40,GSU45..LIMD,SPO200905-201304

BLACK,TRIM2#

sub58409-0E060

main58409-0E020-E0iASU40,GSU45200905-201304

SAND BEIGE,TRIM4#

sub58409-0E060

main58409-0E060-C0iASU40,GSU45..LIMD,SPO201305-201503

BLACK,TRIM2#

main58409-0E060-E0iASU40,GSU45201305-201503

SAND BEIGE,TRIM4#

58410BBOARD ASSY, DECK

main58410-0E030-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main58410-0E030-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

58411ABOARD, DECK, NO.1

main58411-0E010-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main58411-0E010-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

main58411-0E080-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58411-0E080-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

58412ABOARD, DECK, NO.2

main58412-0E040-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58412-0E040-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

58415EBOARD, REAR FLOOR, NO.1

58416FBRACKET, DECK BOARD, NO.1

main58416-33020-C0iASU40,GSU45200905-201503

BLACK

sub58416-33020¥400

58423BSPACER, REAR FLOOR BOARD, NO.2

58424FSPACER, REAR FLOOR BOARD, NO.3

58443CUSHION, DECK BOARD, NO.1

main58443-33010iASU40,GSU45¥80201205

58449CLIP, DECK BOARD

main90467-06147iASU40,GSU45¥80201205

main90467-06193-C0iASU40,GSU45200905-201205

BLACK

58557AMAT, REAR

main58557-0E010iASU40,GSU45200905-201205

sub58557-0E011

58790ACARRIER ASSY, JACK

main58790-0E030iASU40,GSU45200905-201205

58792FSUPPORT, JACK CARRIER

main58792-48010iASU40,GSU45¥570200905-201205

58798BCUSHION, JACK CARRIER

main58798-0E010iASU40,GSU45200905-201205

62551PCOVER, REAR SEAT SIDE, RH

main62551-0E070-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main62551-0E070-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

62552NCOVER, REAR SEAT SIDE, LH

main62552-0E040-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

main62552-0E040-E0iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-12080iASU40,GSU45¥60200905-201205

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-0E020iASU40,GSU45200905-201205

64726BCLIP, DECK REAR TRIM

64741BBOX, DECK SIDE TRIM, RH

main64741-0E030iASU40,GSU45200905-201205

sub64741-0E031

64742CBOX, DECK SIDE TRIM, LH

main64742-0E040iASU40,GSU45200905-201205

sub64742-0E041

64750BRETAINER(FOR DECK SIDE TRIM PANEL)

main55416-60030iASU40,GSU45¥80200905-201205

64910JCOVER ASSY, TONNEAU

main64910-0E030-C0iASU40,GSU45..SPO200905-201205

BLACK,TRIM2#

sub64910-0E031

main64910-0E030-E0iASU40,GSU45..SPO200905-201205

SAND BEIGE,TRIM4#

sub64910-0E031

main64910-0E030-E0iASU40,GSU45..SPO200905-201205

TONNEAU COVER-WITH,SAND BEIGE,TRIM4#

sub64910-0E031

main64910-0E040-C0iASU40,GSU45..LIMD200905-201205

BLACK,TRIM2#

sub64910-0E041

main64910-0E040-E0iASU40,GSU45..LIMD200905-201205

SAND BEIGE,TRIM4#

sub64910-0E041

64993BOX, DECK FLOOR, REAR

main64993-0E030iASU40,GSU45200905-201205

sub64993-0E031

main64993-0E100iASU40,GSU45201205

sub64993-0E101

7102

90119C0072

main90119-C0072

90178C0011

main90178-C0011

31 parts on this diagram · 2 diagrams in section
