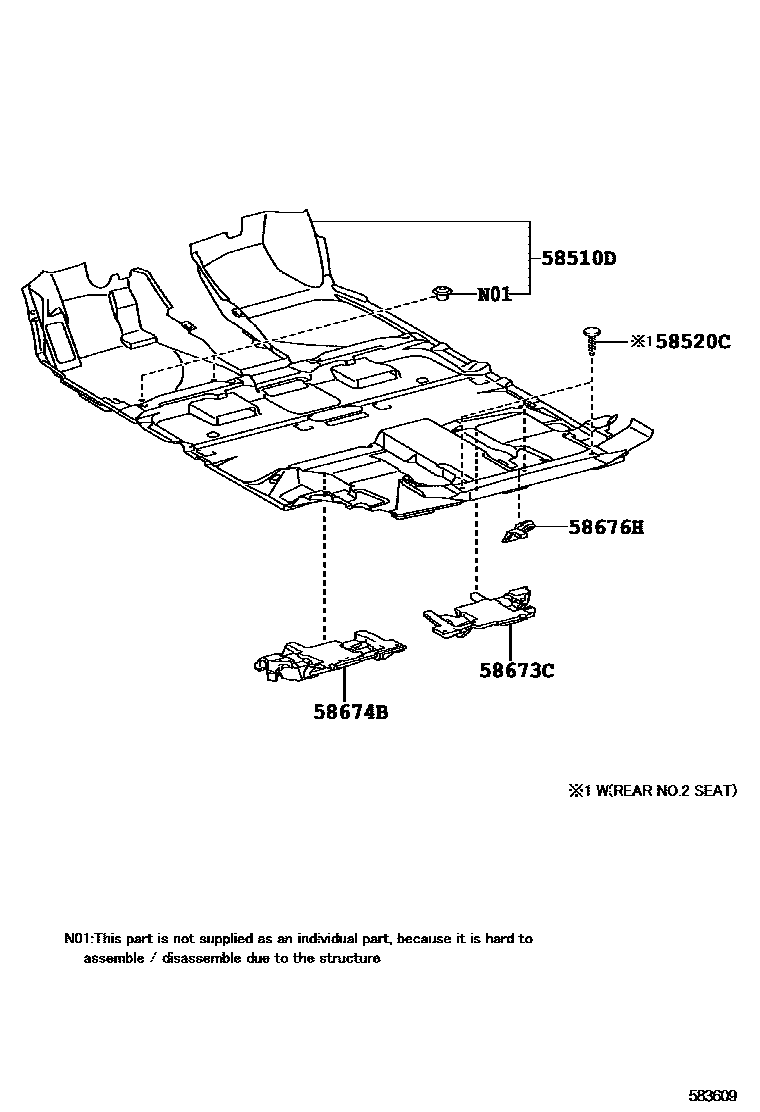

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-0E030-C1iASU40,GSU45..LIMD,SPO200905-201204

BLACK,TRIM2#

sub58510-0E031

main58510-0E030-E1iASU40,GSU45200905-201204

SAND BEIGE,TRIM4#

sub58510-0E031

main58510-0E031-C1iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58510-0E031-E1iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

main58510-0E040-C1iASU40..SPO200905-201204

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

sub58510-0E041

main58510-0E040-E1iASU40..D,SPO200905-201204

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

sub58510-0E041

main58510-0E041-C1iASU40..SPO201205-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main58510-0E041-E1iASU40..D,SPO201205-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0iASU40,GSU45..LIMD,SPO200905-201503

BLACK,TRIM2#

sub90467-07049

main90467-07049-E7iASU40,GSU45200905-201503

SAND BEIGE,TRIM4#

sub90467-07049

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-0E010iASU40,GSU45200905-201205

main58673-0E020iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-0E010iASU40,GSU45200905-201205

main58674-0E020iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

58676HPAD, REAR FLOOR SILENCER

main58675-0E010iASU40,GSU45200905-201205

5 parts on this diagram · 1 diagram in section
