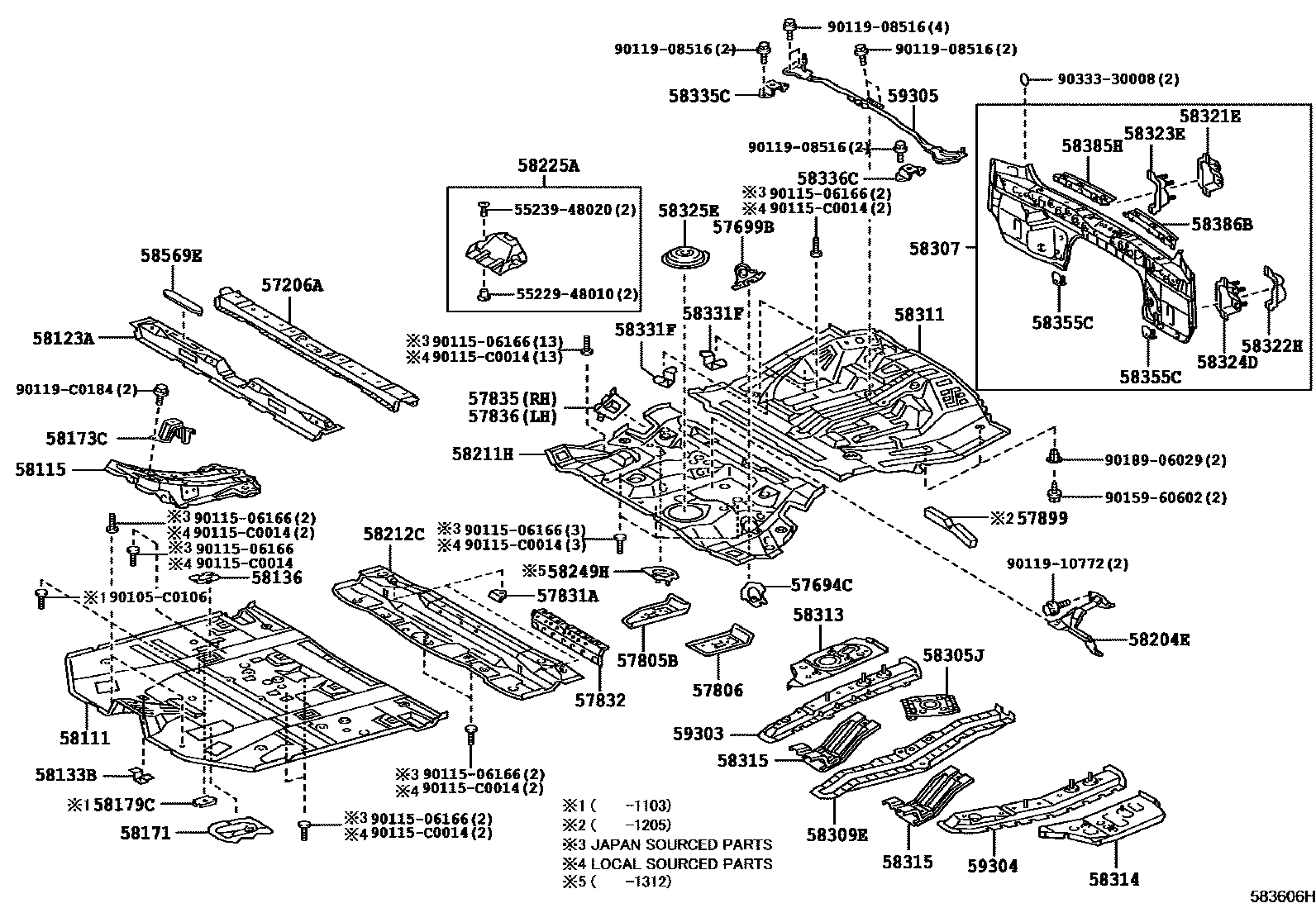

FLOOR PAN & LOWER BACK PANEL
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57899SEAL, REAR FLOOR, REAR
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58173CBRACKET, WIRING HARNESS PROTECTOR
58179CBRACKET, CLAMP FLOOR
58204EBRACKET SUB-ASSY, FRONT SEAT
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58225ABRACKET, CENTER MOUNTING
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58305JBRACKET, SPARE WHEEL CARRIER
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EXTENSION, REAR FLOOR PANEL
58321EPLATE, REAR BUMPER ARM SUPPORT, RH
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58335CPLATE, FLOOR SIDE, FRONT RH
WITHOUT(REAR NO.2 SEAT)
58336CPLATE, FLOOR SIDE, FRONT LH
WITHOUT(REAR NO.2 SEAT)
58355CBRACKET, REAR BUMPER ARM
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58569ECOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
59303PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH
59304PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH
59305MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS
5522948010PLATE, DASH PANEL INSULATOR, NO.4
5523948020SILENCER, STEERING COLUMN HOLE COVER
90105C0106
main90105-C0106
9011506166
90115C0014
main90115-C0014
9011908516
9011910772
90119C0184
main90119-C0184
9015960602
9018906029
9033330008
56 parts on this diagram · 3 diagrams in section
