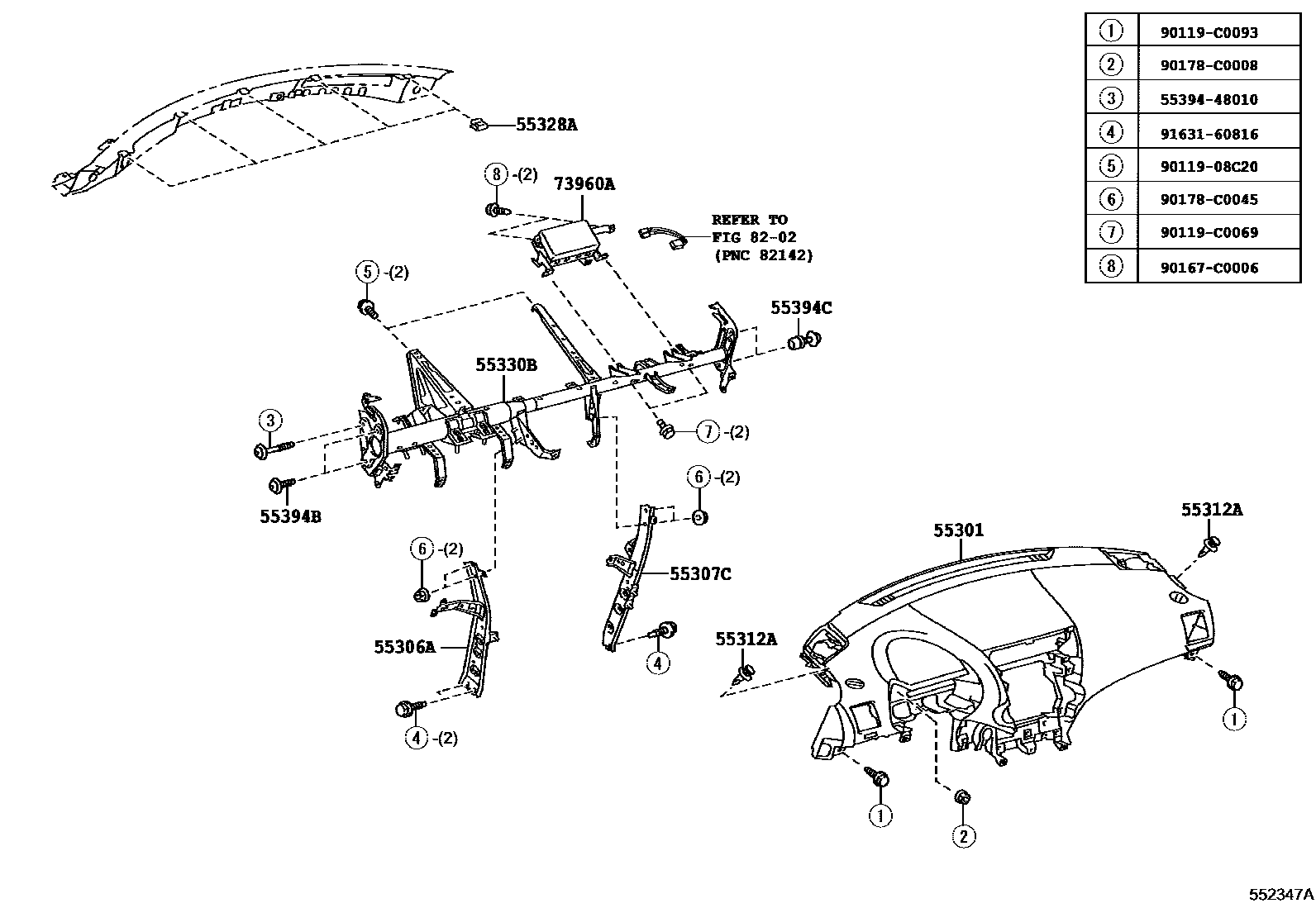

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0E010-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

sub55301-0E011

main55301-0E010-E0iASU40,GSU45200905-201205

DK. BROWN,TRIM4#

sub55301-0E011

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E030iASU40,GSU45201205

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E030iASU40,GSU45200905-201205

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iASU40,GSU45201205

sub52161-0K040

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-0E090×5iASU40,GSU45201308

main55328-50170×5iASU40,GSU45200905-201205

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E030iASU40,GSU45200905-201205

55394BBOLT, INSTRUMENT PANEL

main55394-06080×2iASU40,GSU45201011-201205

(L)

main55394-30021×2iASU40,GSU45200905-201011

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iASU40,GSU45201205

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E030iASU40,GSU45201205

8202

5539448010BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-48010

9011908C20

main90119-08C20

90119C0069

main90119-C0069

90119C0093

main90119-C0093

90167C0006

main90167-C0006

90178C0008

main90178-C0008

90178C0045

main90178-C0045

9163160816

main91631-60816

18 parts on this diagram · 4 diagrams in section
