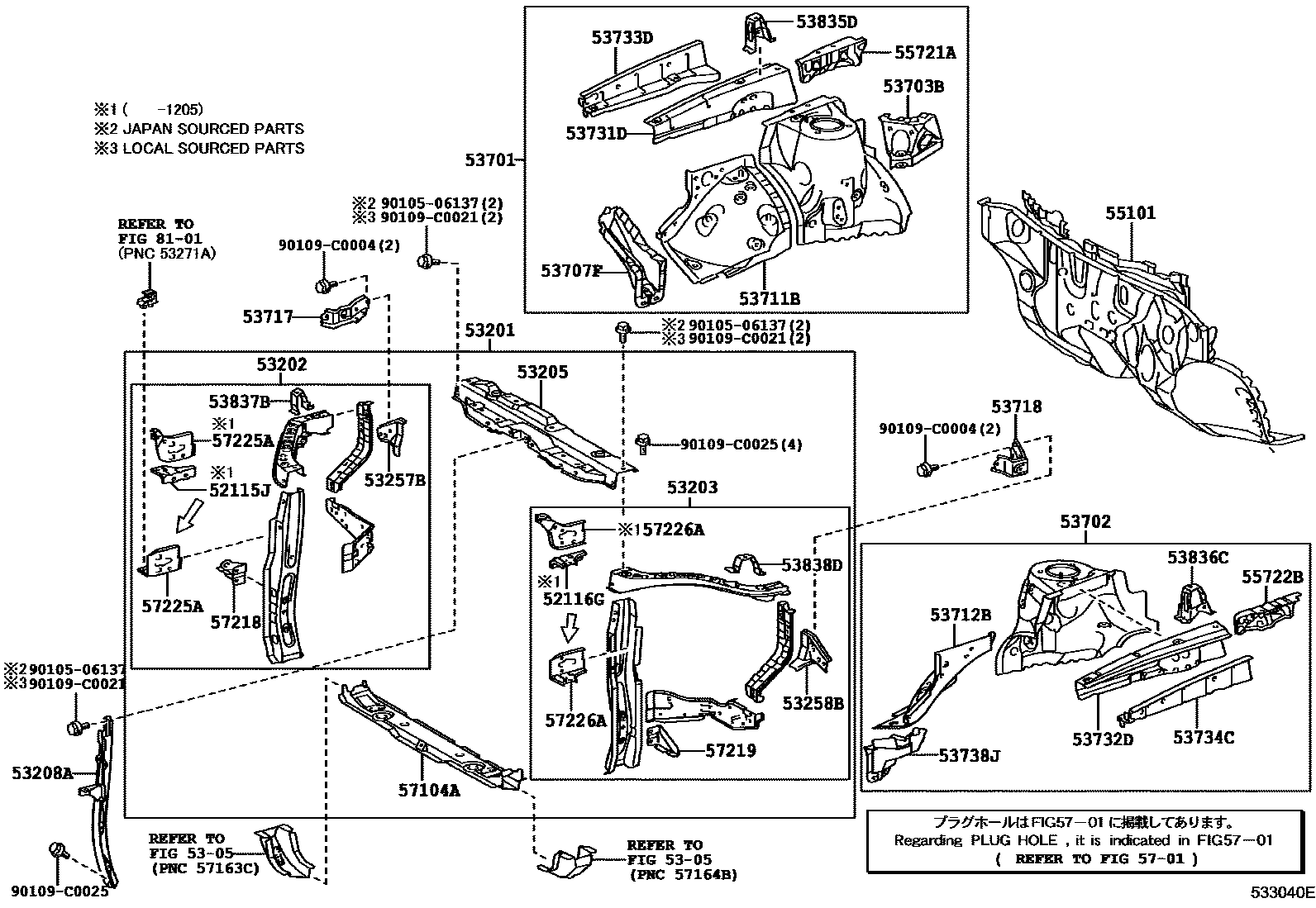

FRONT FENDER APRON & DASH PANEL
52115JSUPPORT, FRONT BUMPER SIDE, RH
52116GSUPPORT, FRONT BUMPER SIDE, LH
5305
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53703BRETAINER SUB-ASSY, FENDER APRON, RH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55721ABRACE, COWL TOP TO COWL, INNER NO.1
55722BBRACE, COWL TOP TO COWL, INNER NO.2
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57225ABRACE, FRONT MOUNTING BRACKET, RH
57226ABRACE, FRONT MOUNTING BRACKET, LH
8101
9010506137
main90105-06137
90109C0004
main90109-C0004
90109C0021
main90109-C0021
90109C0025
main90109-C0025
41 parts on this diagram · 2 diagrams in section
