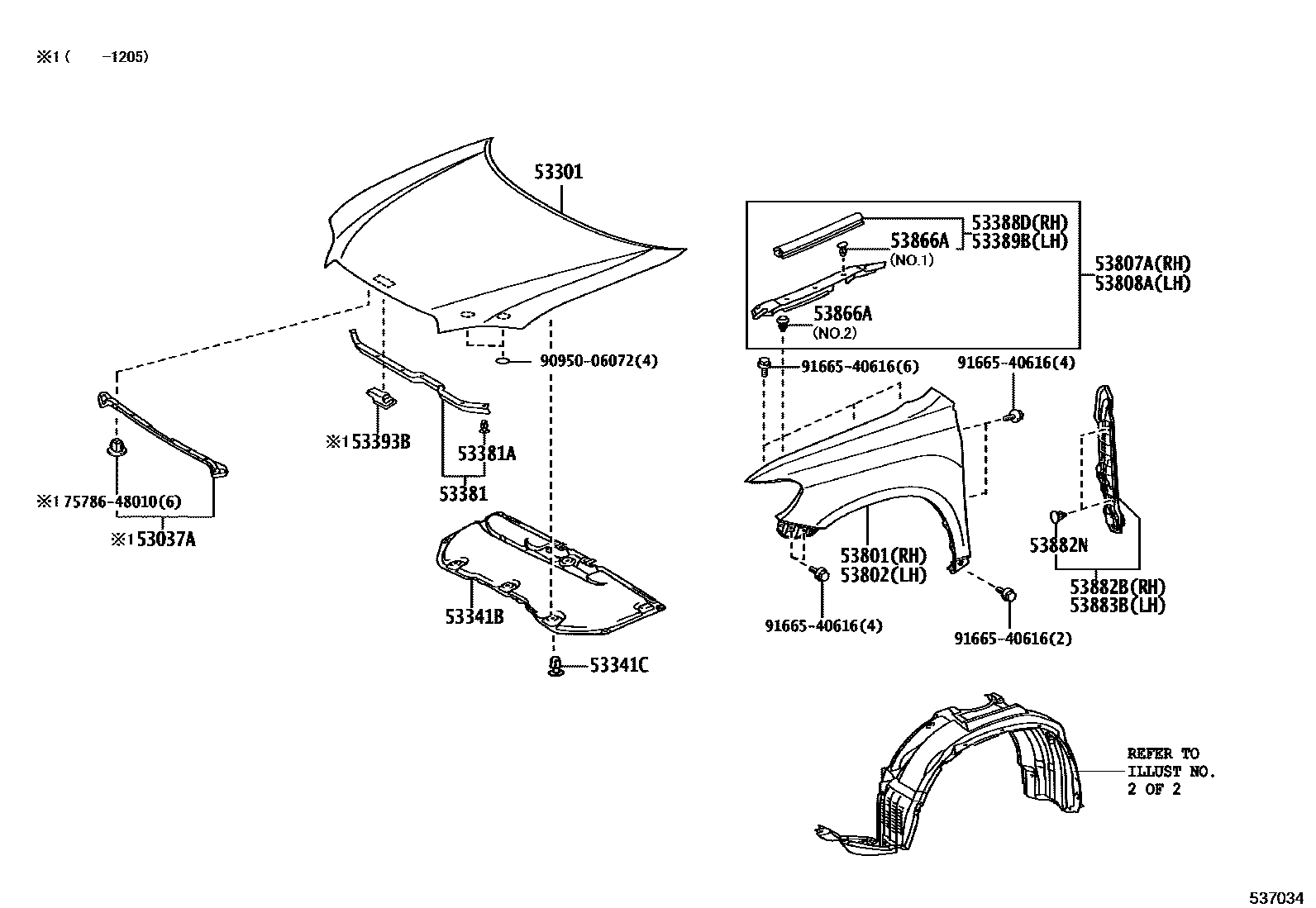

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53037ASEAL SUB-ASSY, RADIATOR

main53037-0E020iASU40,GSU45200905-201205

53301HOOD SUB-ASSY

main53301-0E040iASU40,GSU45200905-201205

main53301-0E100iASU40,GSU45201205

53341BINSULATOR, HOOD

main53341-0E030iASU40,GSU45200905-201103

sub53341-0E031

main53341-0E031iASU40,GSU45201104-201312

sub53341-0E032

main53341-0E032iASU40,GSU45201401

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASU40,GSU45¥120200905-201205

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0E040iASU40,GSU45200905-201205

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iASU40,GSU45¥100200905-201205

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0E040iASU40,GSU45200905-201205

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0E040iASU40,GSU45200905-201205

53393BPROTECTOR, HOOD, FRONT

main53393-0E030iASU40,GSU45200905-201205

53801FENDER SUB-ASSY, FRONT RH

main53801-0E090iASU40,GSU45..LIMD,SPO201205

main53801-0E100iASU40,GSU45..D201205

main53811-0E030iASU40,GSU45..LIMD,SPO200905-201205

main53811-0E040iASU40,GSU45..D200905-201205

53802FENDER SUB-ASSY, FRONT LH

main53802-0E090iASU40,GSU45201205

main53812-0E030iASU40,GSU45200905-201205

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-0E020iASU40,GSU45201205

main53807-0E030iASU40,GSU45200905-201205

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-0E020iASU40,GSU45201205

main53808-0E030iASU40,GSU45200905-201205

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-08108iASU40,GSU45¥70200905-201205

NO.1

main90467-10161iASU40,GSU45¥90200905-201205

NO.2

53882BSEAL, FRONT FENDER, RH

main53882-0E030iASU40,GSU45200905-201205

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iASU40,GSU45200905-201503

BLACK

53883BSEAL, FRONT FENDER, LH

main53883-0E030iASU40,GSU45200905-201205

7578648010MOULDING, QUARTER WINDOW, FRONT LH

main75786-48010¥120

9095006072

main90950-06072¥110

9166540616

main91665-40616¥70

20 parts on this diagram · 2 diagrams in section
