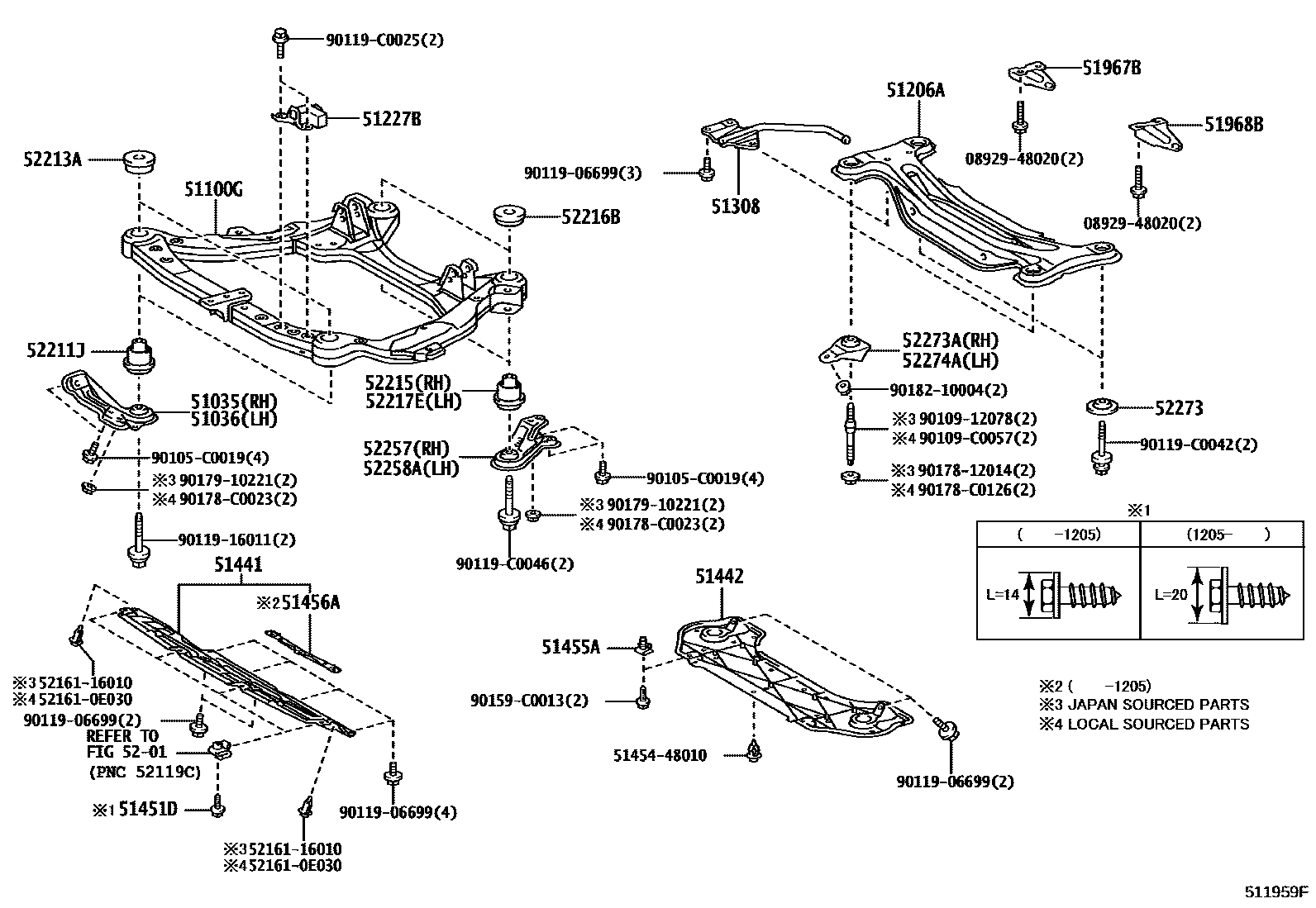

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0E020iASU40,GSU45201205

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0E020iASU40,GSU45200905-201205

51100GFRAME ASSY, FRONT

main51100-0E020iASU40,GSU45200905-200906

(L)

main51100-48071iASU40,GSU45200905-200906

(J)

sub51100-48072

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E050iGSU45200905-201205

main51270-0E010iASU40201205

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0E030iASU40,GSU45200905-201205

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-0E020iASU40200905-201205

51441COVER, ENGINE UNDER, NO.1

main51441-0E030iGSU45200905-201205

main51441-0E080iASU40,GSU45201205

main51441-48110iASU40200905-201205

51442COVER, ENGINE UNDER, NO.2

main51442-48020iASU40,GSU45200905-200907

main51442-48021iASU40,GSU45200908-201205

51451DSCREW, NO.1

main90159-60383×4iASU40,GSU45201205-201503

main90159-60444×4iASU40,GSU45200905-201205

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010×2iASU40,GSU45200905-201205

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-48010iASU40200905-201205

51967BHOOK, TRANSPORT, REAR RH

main51967-0E030iASU40,GSU45201205

51968BHOOK, TRANSPORT, REAR LH

main51968-0E030iASU40,GSU45200905-201205

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-0E020×2iASU40,GSU45200905-201205

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-0E020×2iASU40,GSU45200905-201205

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-0E010iASU40,GSU45200905-201205

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-0E010×2iASU40,GSU45200905-201205

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-0E020iASU40,GSU45200905-201205

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-0E020iASU40,GSU45200905-201205

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-0E020iASU40,GSU45200905-201205

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06030×2iASU40200905-201205

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-0E020iASU40200905-201205

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-0E020iASU40200905-201205

0892948020

main08929-48020

5145448010CLIP

main51454-48010

521610E030CUSHION, REAR BUMPER GUARD, NO.1

main52161-0E030

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

90105C0019

main90105-C0019

9010912078

main90109-12078

90109C0057

main90109-C0057

9011906699

main90119-06699

9011916011

main90119-16011

90119C0025

main90119-C0025

90119C0042

main90119-C0042

90119C0046

main90119-C0046

90159C0013

main90159-C0013

9017812014

main90178-12014

90178C0023

main90178-C0023

90178C0126

main90178-C0126

9017910221

main90179-10221

9018210004

main90182-10004

42 parts on this diagram · 2 diagrams in section
