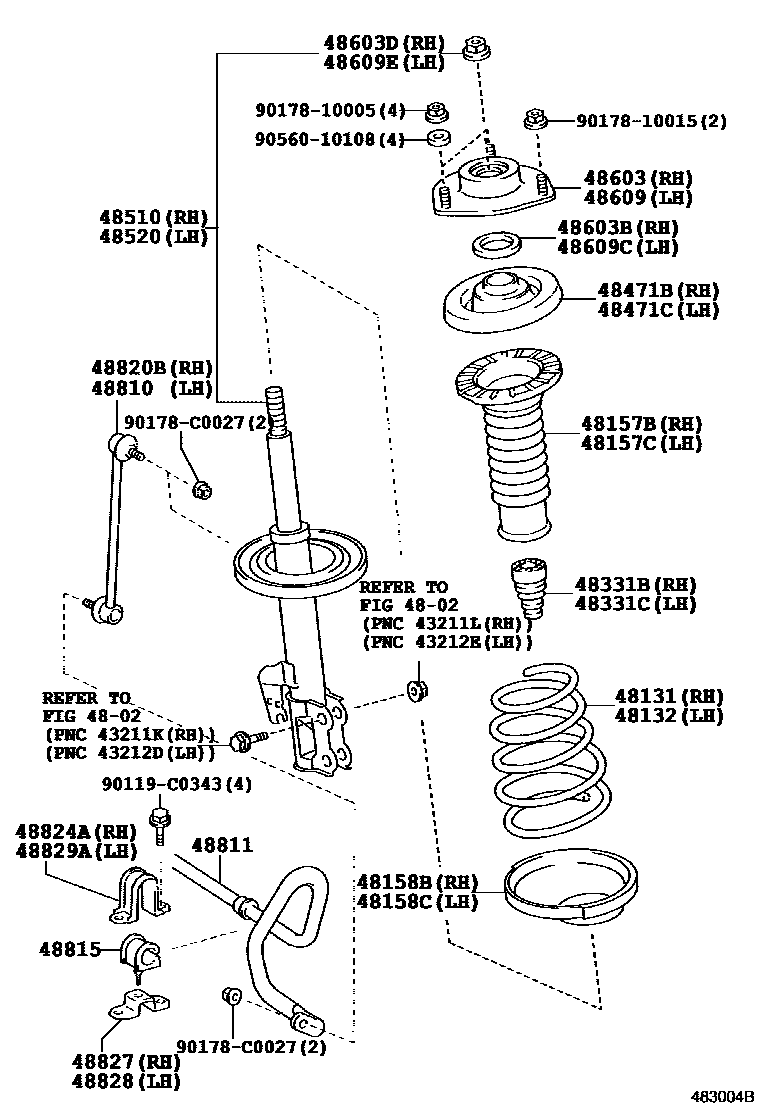

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0E051iGSU45200905-201205

main48131-0E061iASU40200905-201205

48132SPRING, FRONT COIL, LH

main48131-0E051iGSU45200905-201205

main48131-0E061iASU40201205

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0E020iASU40,GSU45201205-201302

sub48157-0E021

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0E020iASU40,GSU45200905-201205

sub48157-0E021

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0E030iASU40,GSU45200905-201205

main48158-0E031iASU40,GSU45201303

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0E030iASU40,GSU45200905-201205

main48158-0E031iASU40,GSU45201303

48331BBUMPER, FRONT SPRING, RH

main48331-48050iASU40,GSU45200905-201205

48331CBUMPER, FRONT SPRING, LH

main48331-48050iASU40,GSU45200905-201205

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41012iASU40,GSU45200905-201205

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41012iASU40,GSU45200905-201205

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09X50iGSU45200905-201111

MARK 48510-0E060

main48510-09X51iGSU45201111-201205

MARK 48510-0E061

main48510-09X60iASU40200905-201111

MARK 48510-0E100

main48510-09X61iASU40201111-201205

MARK 48510-0E101

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09Q50iGSU45200905-201111

MARK 48520-0E060

main48520-09Q51iGSU45201111-201205

MARK 48520-0E061

main48520-09Q60iASU40200905-201111

MARK 48520-0E100

main48520-09Q61iASU40201111-201205

MARK 48520-0E101

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0E030iASU40,GSU45201205

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90369-C0001iASU40,GSU45200905-201205

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-C0009iASU40,GSU45201310

(L)

main90179-14015iASU40,GSU45201310

(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0E030iASU40,GSU45200905-201205

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90369-C0001iASU40,GSU45200905-201205

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-C0009iASU40,GSU45201310

(L)

main90179-14015iASU40,GSU45200905-201205

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0E010iASU40,GSU45201205

48811BAR, STABILIZER, FRONT

main48811-48120iASU40200905-201205

main48811-48130iGSU45200905-201205

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0E020×2iASU40,GSU45200905-201205

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0E010iASU40,GSU45200905-201205

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0E030iASU40,GSU45200905-201205

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-0E020iASU40,GSU45200905-201205

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-0E020iASU40,GSU45200905-201205

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0E030iASU40,GSU45200905-201205

90119C0343

main90119-C0343

9017810005

main90178-10005

9017810015

main90178-10015

90178C0027

main90178-C0027

9056010108

main90560-10108

32 parts on this diagram · 1 diagram in section
