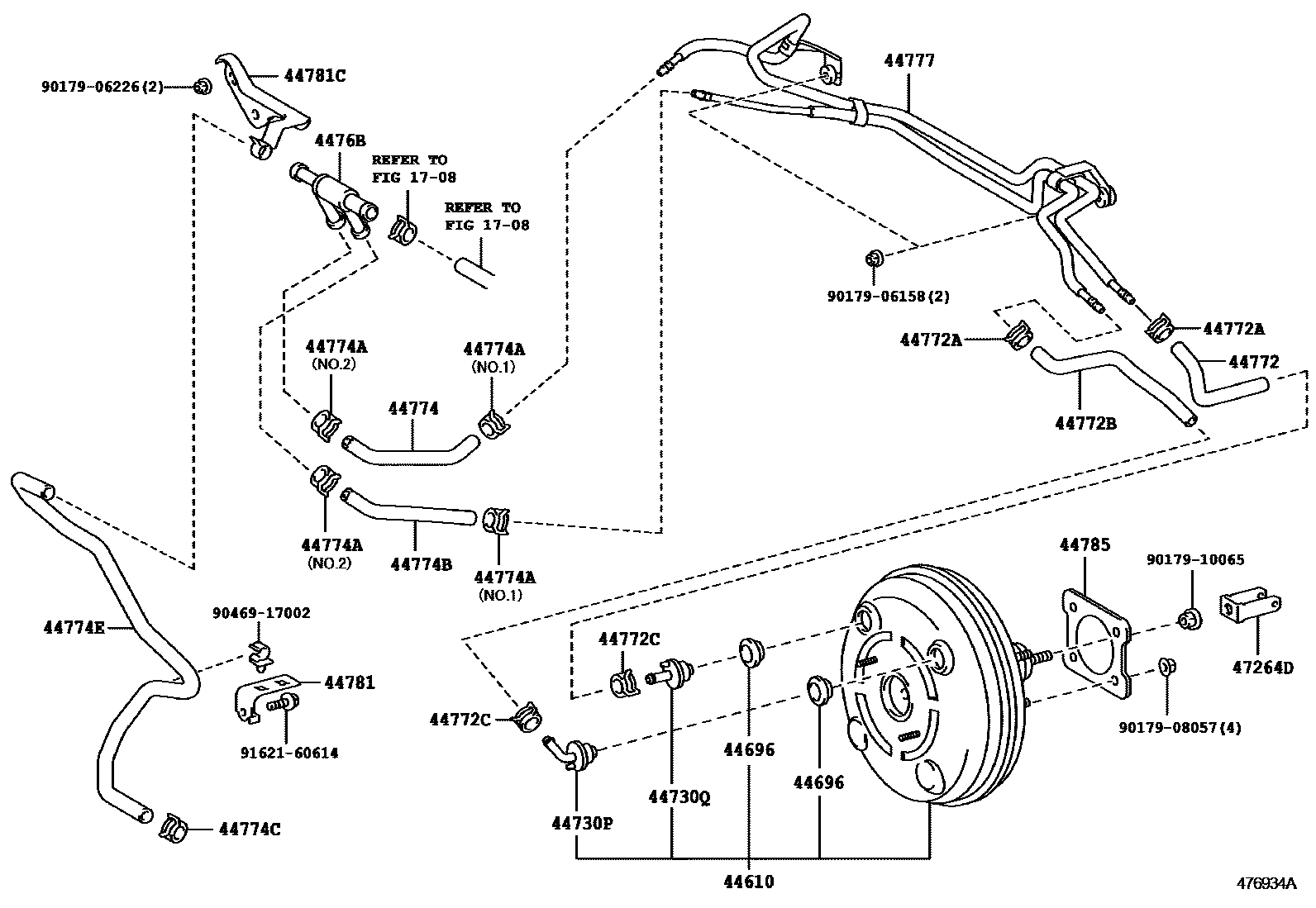

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1708

44610BOOSTER ASSY, BRAKE

main44610-0E040iGSU45201205-201209

main44610-0E041iGSU45201210

main44610-0E050iASU40200905-201111

main44610-0E051iASU40201205-201209

main44610-0E052iASU40201210

44696GROMMET, CHECK VALVE

main90080-48071×2iASU40200905-201111

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iASU40,GSU45201205

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-12040iASU40200905-201111

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-20080iASU40200905-201111

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iASU40200905-201111

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0E010iASU40200905-201205

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500×2iASU40200905-201111

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-0E020iASU40200905-201111

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014×2iASU40200905-201111

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0E020iASU40200905-201111

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iASU40200905-201111

NO.2

main96133-41500×2iASU40200905-201111

NO.1

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-0E010iASU40200905-201111

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-C0021iASU40201211

(L)

main96136-41801iASU40200905-201205

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-48070iASU40200905-201111

main44774-48071iASU40201111-201205

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-0E030iASU40200905-201111

main44770-0E031iASU40201111-201205

44781BRACKET, HOSE

main44447-48030iASU40200905-201205

44781CBRACKET, HOSE CLAMP, NO.2

main44781-48010iASU40200905-201111

44785GASKET, BRAKE BOOSTER

main44785-06020iASU40,GSU45200905-201205

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iASU40,GSU45200905-201205

9017906158

main90179-06158

9017906226

main90179-06226

9017908057

main90179-08057

9017910065

main90179-10065

9046917002

main90469-17002

9162160614

main91621-60614

27 parts on this diagram · 3 diagrams in section
