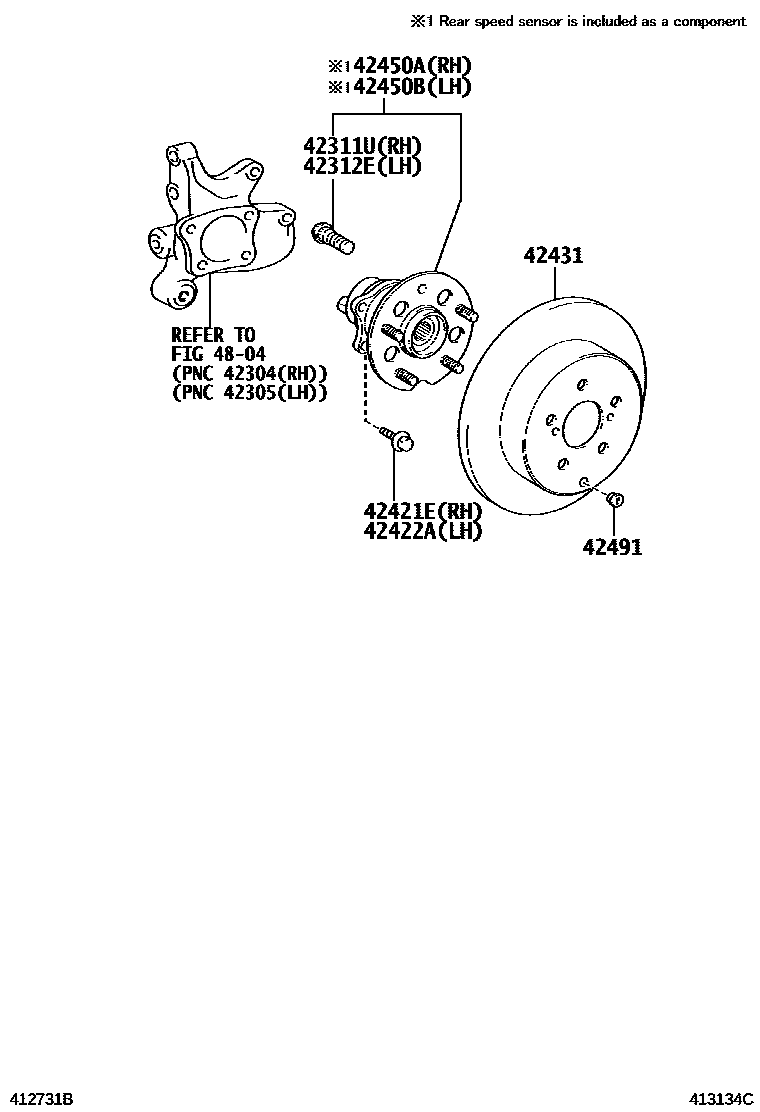

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iASU40,GSU45200905-201205

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iASU40,GSU45200905-201205

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12332iASU40,GSU45200905-201008

main90105-C0172iASU40,GSU45201009-201205

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12332iASU40,GSU45200905-201008

main90105-C0172iASU40,GSU45201009-201205

42431DISC, REAR

main42431-0E030iASU40,GSU45200905-201503

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0E030iASU40200905-201205

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-0E020iASU40200905-201205

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47493-06010iASU40,GSU45200905-201503

4804

9 parts on this diagram · 3 diagrams in section
