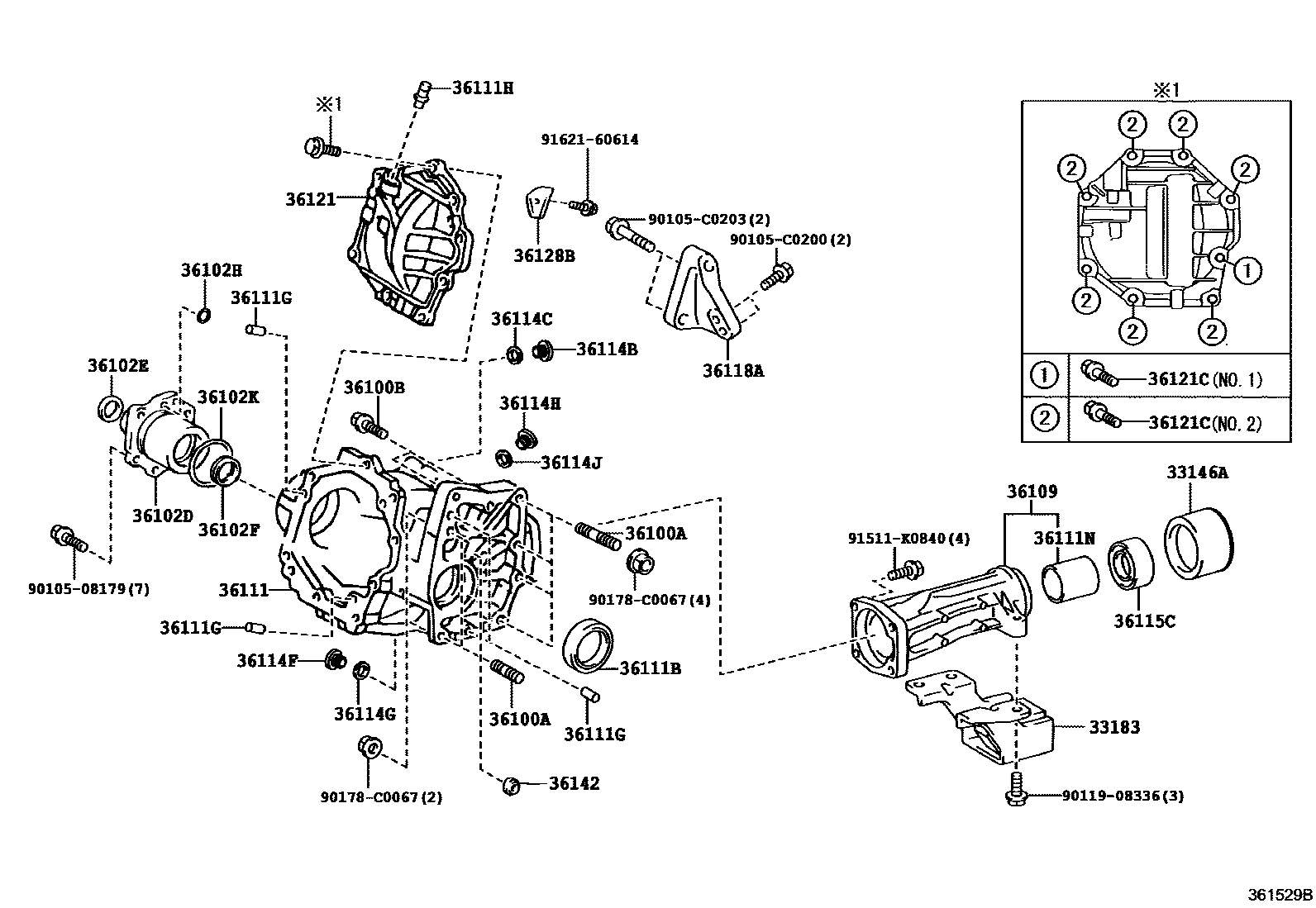

TRANSFER CASE & EXTENSION HOUSING

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iGSU45201205

33183DAMPER, TRANSFER DYNAMIC

main33183-33010iGSU45200905-201205

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12033×4iGSU45201205

S=15 & 27,L=58

main90116-12034×2iGSU45201205

S=19 & 19,L=47

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-C0198×2iGSU45200905-201205

*12-1.25PX32-24

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-48010iGSU45200905-201205

36102ESEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER)

main90311-34021iGSU45200905-201205

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90316-37001iGSU45201205

36102HRING, O (FOR TRANSFER RH BEARING RETAINER)

main90301-11018iGSU45201205

36102KRING, O

main90301-70002iGSU45200905-201205

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-33010iGSU45200905-201205

sub36109-48010

36111CASE, TRANSFER

main36111-48051iGSU45201205

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-58009iGSU45200905-201205

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-08046×2iGSU45200905-201205

L=16,OD=8

main90250-10017×2iGSU45200905-201205

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iGSU45200905-201205

36111NBUSH (FOR TRANSFER CASE)

main90999-73105iGSU45201205

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18055iGSU45200905-201105

main90341-18072iGSU45201105-201205

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iGSU45200905-201205

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iGSU45200905-201205

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iGSU45200905-201205

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18006iGSU45200905-201205

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iGSU45201205

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38090iGSU45200905-201205

36118APLATE, TRANSFER STIFFENER, RH

main36118-0E010iGSU45200905-201205

36121COVER, TRANSFER CASE, NO.1

main36121-48010iGSU45200905-201205

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main90105-08351iGSU45200905-201205

NO.1

main91511-J0820×7iGSU45200905-201205

NO.2

36128BDEFLECTOR, BREATHER OIL

main36128-21010iGSU45200905-201205

36142GASKET, TRANSFER COVER

main36141-21010iGSU45200905-201205

9010508179

main90105-08179

90105C0200

main90105-C0200

90105C0203

main90105-C0203

9011908336

main90119-08336

90178C0067

main90178-C0067

91511K0840

main91511-K0840

9162160614

main91621-60614

34 parts on this diagram · 1 diagram in section
