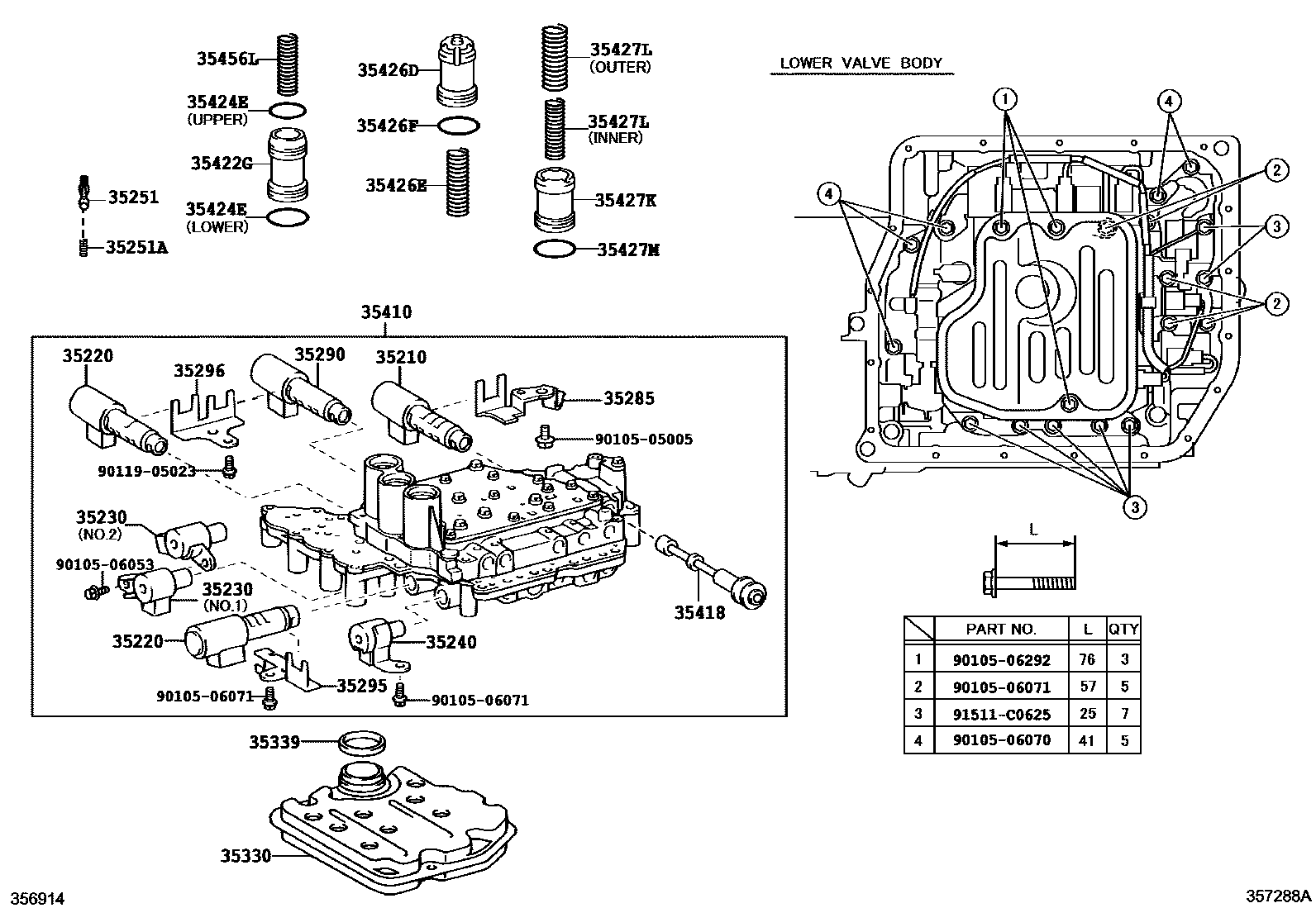

VALVE BODY & OIL STRAINER (ATM)
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
NO.1
NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35285PLATE, SOLENOID LOCK
*285
*284
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
*285
*284
35296PLATE, SOLENOID LOCK, NO.3
*285
*284
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35422GPISTON, REVERSE CLUTCH ACCUMULATOR
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
INNER
OUTER
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35456LSPRING, COMPRESSION (FOR C-2 CONTROL VALVE)
9010505005
main90105-05005
9010506053
main90105-06053
9010506070
main90105-06070
9010506071
main90105-06071
9010506292
main90105-06292
9011905023
main90119-05023
91511C0625
main91511-C0625
30 parts on this diagram · 4 diagrams in section
