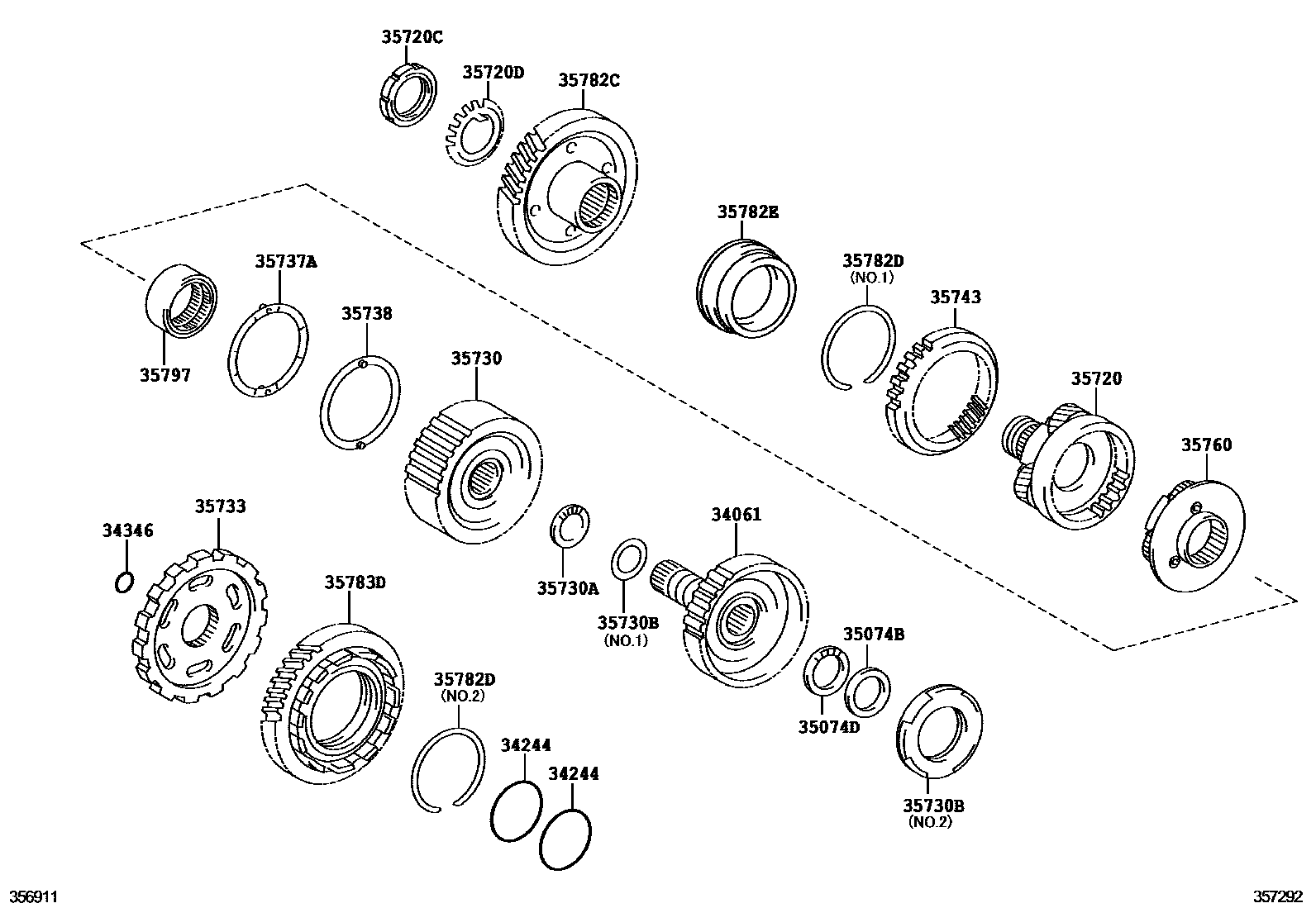

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34061HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35720GEAR ASSY, FRONT PLANETARY
*285
*284
35720CNUT (FOR FRONT PLANETARY GEAR)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
NO.1
NO.2,T=3.4
NO.2,T=3.7
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35760GEAR ASSY, REAR PLANETARY
35782CGEAR, COUNTER DRIVE
*284
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
NO.1
NO.2
35782EBEARING(FOR COUNTER DRIVE GEAR)
35783DGEAR, COUNTER DRIVEN
35797RACE, 1 WAY CLUTCH INNER
21 parts on this diagram · 2 diagrams in section
