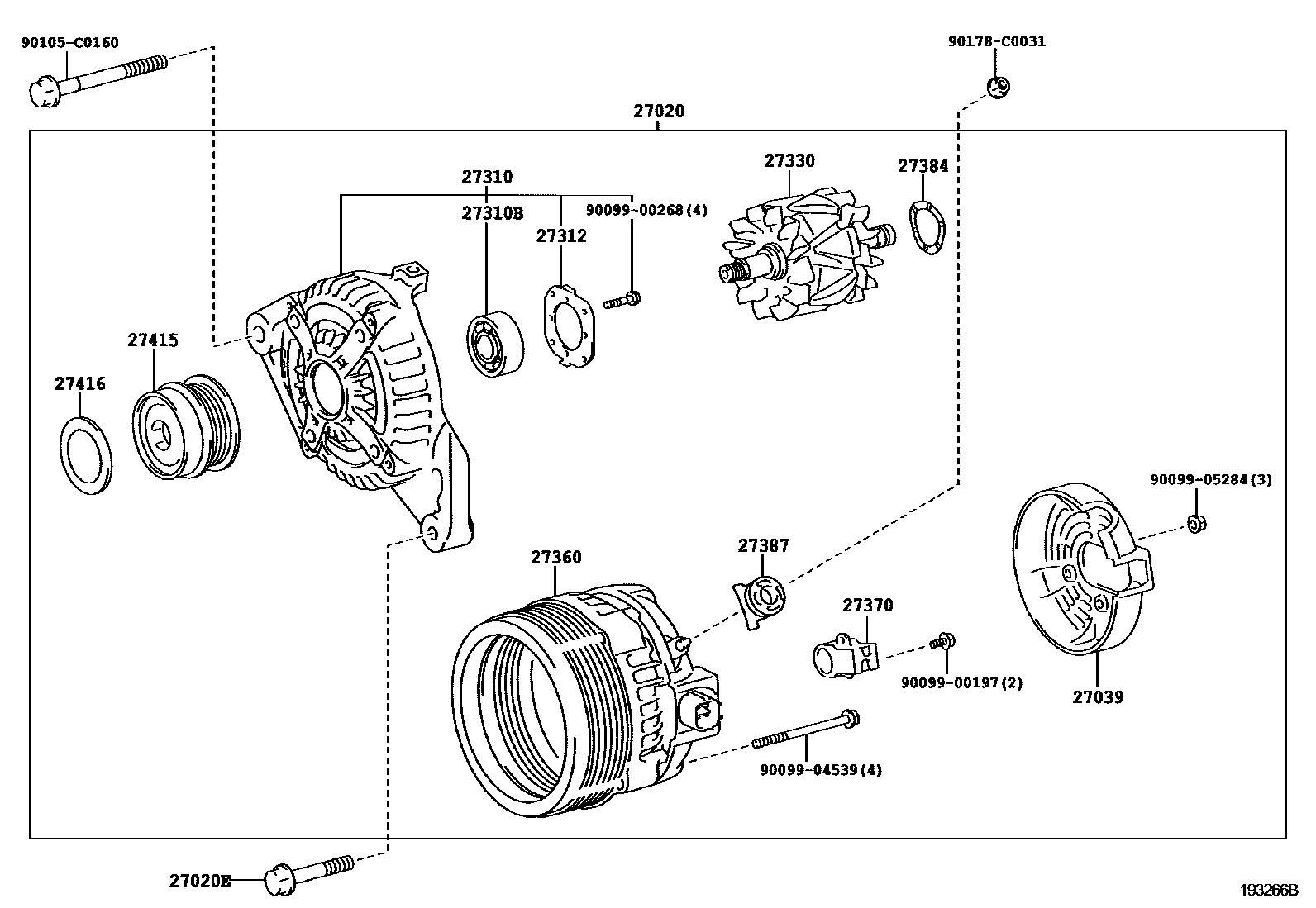

ALTERNATOR

0001 112V 130A,150A 0002 112V 150A

27020ALTERNATOR ASSY

main27060-0P041i2GRFE..GSU45200905-201205

12V 150A

main27060-0V050i1ARFE..ASU40201205

12V 150A

main27060-0V040i1ARFE..ASU40..D,SPO201205

12V 130A,WITHOUT(REAR NO.2 SEAT)

27020EBOLT(FOR ALTERNATOR)

main90105-C0098i2GRFE..GSU45200905-201205

main90105-C0202i1ARFE..ASU40200905-201205

27039COVER, ALTERNATOR REAR END

main27039-0P070i1ARFE,2GRFE..ASU40,GSU45201009-201205

main27039-0T030i1ARFE,2GRFE..ASU40,GSU45200905-201009

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P040i2GRFE..GSU45200905-201205

main27310-0V010i1ARFE..ASU40200905-201205

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1ARFE,2GRFE..ASU40,GSU45200905-201205

main90068-10042i1ARFE,2GRFE..ASU40,GSU45201212

27312PLATE, RETAINER

main27312-0M070i1ARFE,2GRFE..ASU40,GSU45201308

main27312-72100i1ARFE,2GRFE..ASU40,GSU45200905-201205

27330ROTOR ASSY, ALTERNATOR

main27330-0P180i1ARFE,2GRFE..ASU40,GSU45200905-201205

main27330-0V040i1ARFE..ASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

27360COIL ASSY, ALTERNATOR

main27360-0P040i2GRFE..GSU45201205

main27360-0V050i1ARFE..ASU40200905-201205

main27360-0V040i1ARFE..ASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i1ARFE,2GRFE..ASU40,GSU45200905-201205

27384WASHER

main27384-50030i1ARFE,2GRFE..ASU40,GSU45201205

27387INSULATOR, TERMINAL

main27387-0H110i1ARFE,2GRFE..ASU40,GSU45201205

main27387-0T030i1ARFE,2GRFE..ASU40,GSU45200905-201205

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W110i1ARFE..ASU40201205-201307

main27415-0W111i1ARFE..ASU40201308-201503

main27415-0W130i2GRFE..GSU45201205-201306

main27415-0W131i2GRFE..GSU45201307-201503

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1ARFE,2GRFE..ASU40,GSU45200905-201205

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105C0160

main90105-C0160

90178C0031

main90178-C0031

19 parts on this diagram · 2 diagrams in section
