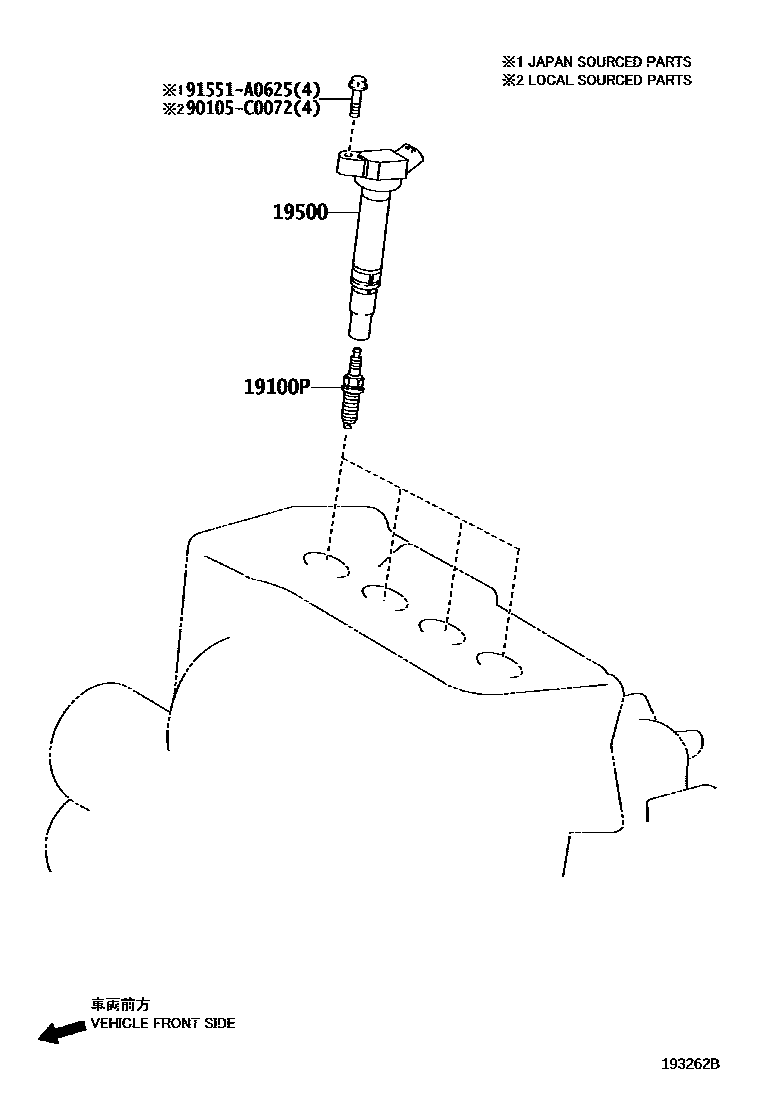

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01233i1ARFE..ASU40¥2,000200905-201111

SK16HR11

main90919-01233i1ARFE..ASU40¥2,000201412-201503

SK16HR11,(J)

main90919-01247i2GRFE..GSU45¥2,300200905-201205

FK20HR11

main90919-C1001i1ARFE..ASU40201111-201412

SK16HR11

sub90919-01233¥2,000

main90919-C1001i1ARFE..ASU40201412-201503

SK16HR11,(L)

sub90919-01233¥2,000

19500COIL ASSY, IGNITION

main90919-02255i2GRFE..GSU45¥8,200200905-201205

sub90919-02256¥7,500

main90919-02256i1ARFE..ASU40¥7,500200905-201111

main90919-C2004i1ARFE..ASU40201111-201205

90105C0072

main90105-C0072

91551A0625

main91551-A0625¥60

4 parts on this diagram · 2 diagrams in section
