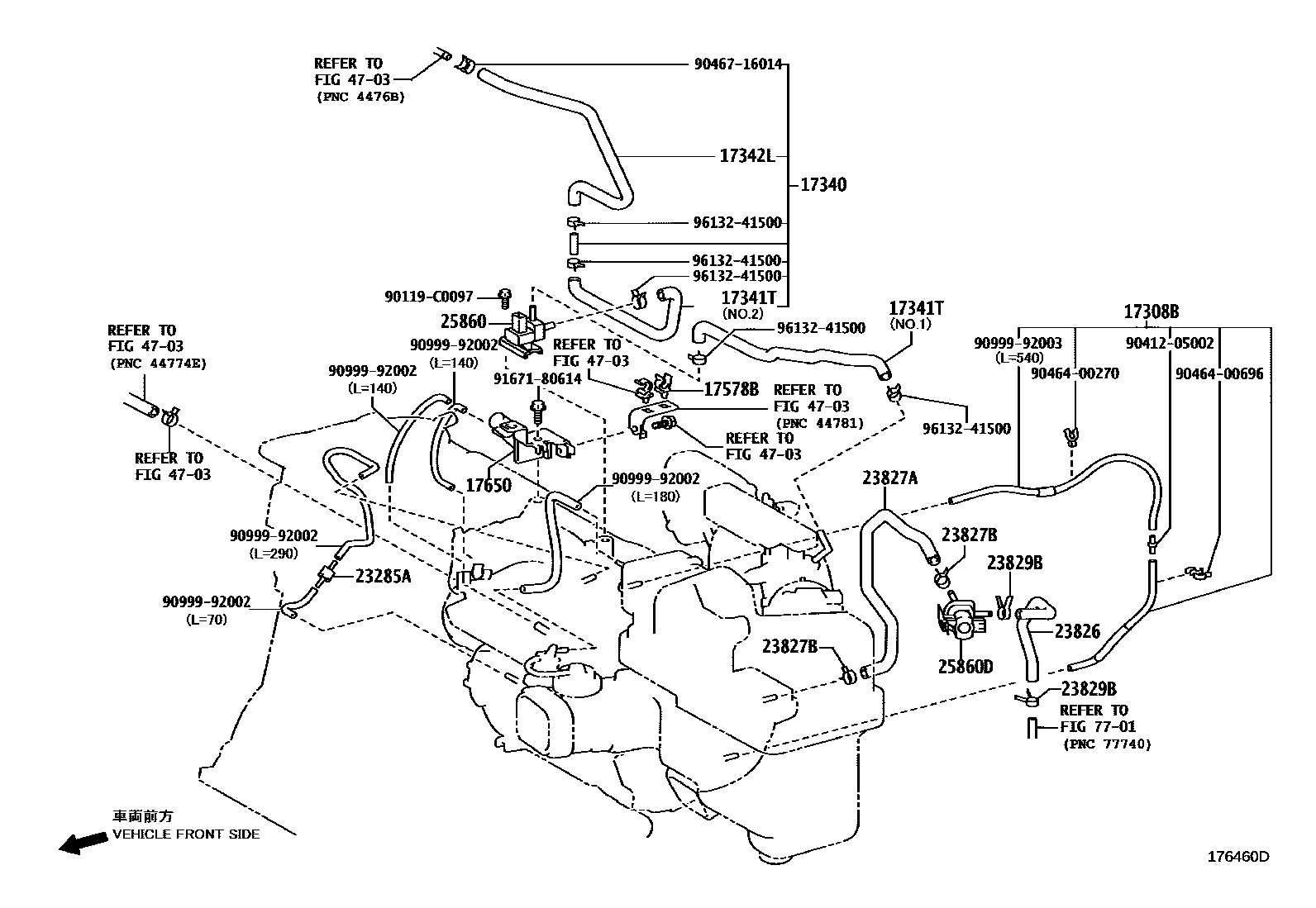

VACUUM PIPING
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308BHOSE SUB-ASSY, VACUUM
17340HOSE ASSY, VACUUM SWITCHING VALVE
17341THOSE, AIR, NO.1
NO.1
NO.2
17342LHOSE, AIR, NO.2
17578BCLAMP, PIPE
17650VALVE ASSY, VACUUM SWITCHING
23285AVALVE, CHECK, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703
7701
90119C0097
main90119-C0097
9041205002
main90412-05002
9046400270
main90464-00270
9046400696
main90464-00696
9046716014
main90467-16014
9099992002
main90999-92002
9099992003
main90999-92003
9167180614
main91671-80614
9613241500
main96132-41500
25 parts on this diagram · 3 diagrams in section
