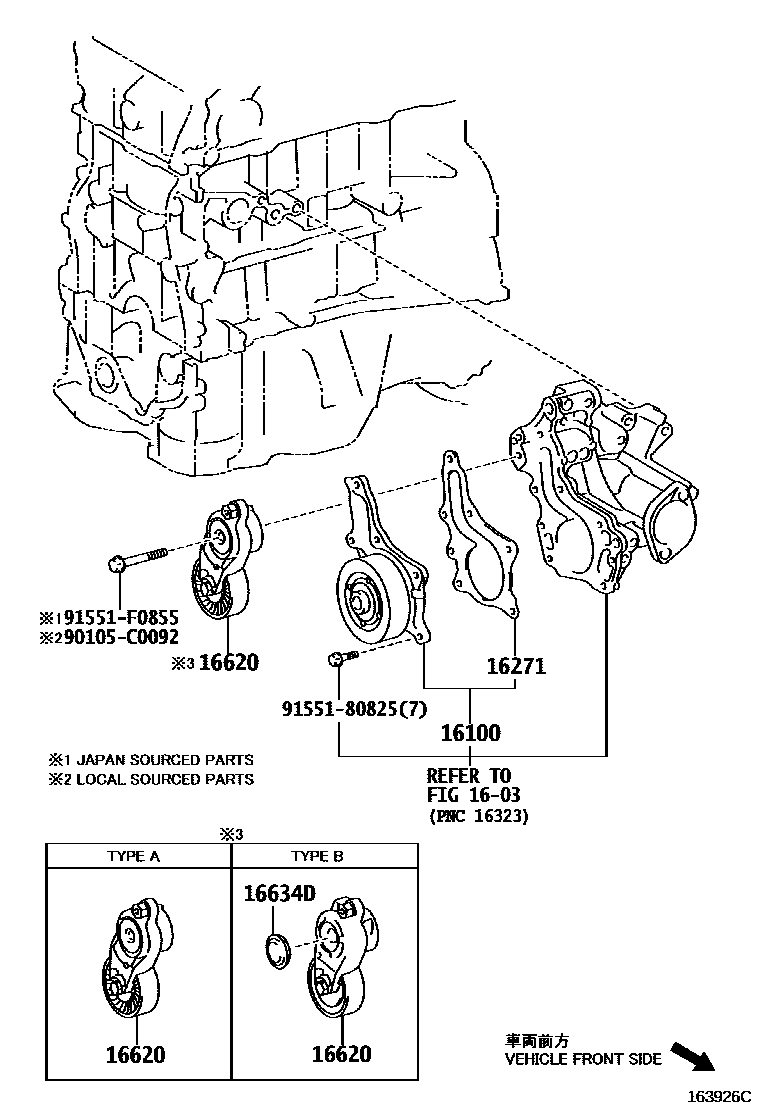

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09600i1ARFE..ASU40201111-201205

sub16100-09601

main16100-39456i2GRFE..GSU45200905-201205

main16100-39515i1ARFE..ASU40200905-201111

sub16100-39516

16271GASKET, WATER PUMP

main16271-31030i2GRFE..GSU45200905-201205

main16271-36010i1ARFE..ASU40200905-201205

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V040i1ARFE..ASU40201111-201305

TYPE A:REFER ILLUST.

sub16620-0V041

main16620-0V041i1ARFE..ASU40201305-201401

TYPE A:REFER ILLUST.

sub16620-0V042

main16620-0V042i1ARFE..ASU40201401

TYPE A:REFER ILLUST.

main16620-0V050i1ARFE..ASU40201410

TYPE B:REFER ILLUST.

sub16620-0V051

main16620-31040i2GRFE..GSU45200905-201205

main16620-36010i1ARFE..ASU40200905-201111

TYPE A:REFER ILLUST.

sub16620-36011

16634DCOVER, DUST

main16628-0V010i1ARFE..ASU40201410

90105C0092

main90105-C0092

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 2 diagrams in section
