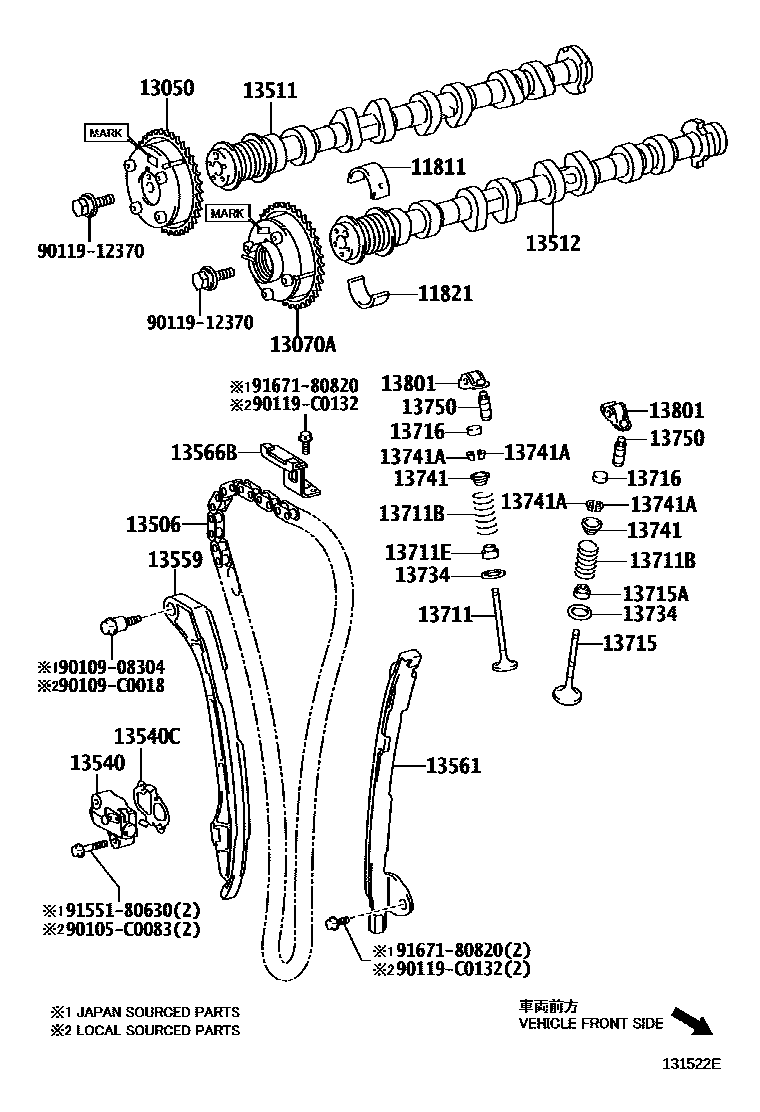

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13506CHAIN SUB-ASSY
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
90105C0083
main90105-C0083
9010908304
main90109-08304
90109C0018
main90109-C0018
9011912370
main90119-12370
90119C0132
main90119-C0132
9155180630
main91551-80630
9167180820
main91671-80820
30 parts on this diagram · 2 diagrams in section
