CRANKSHAFT & PISTON

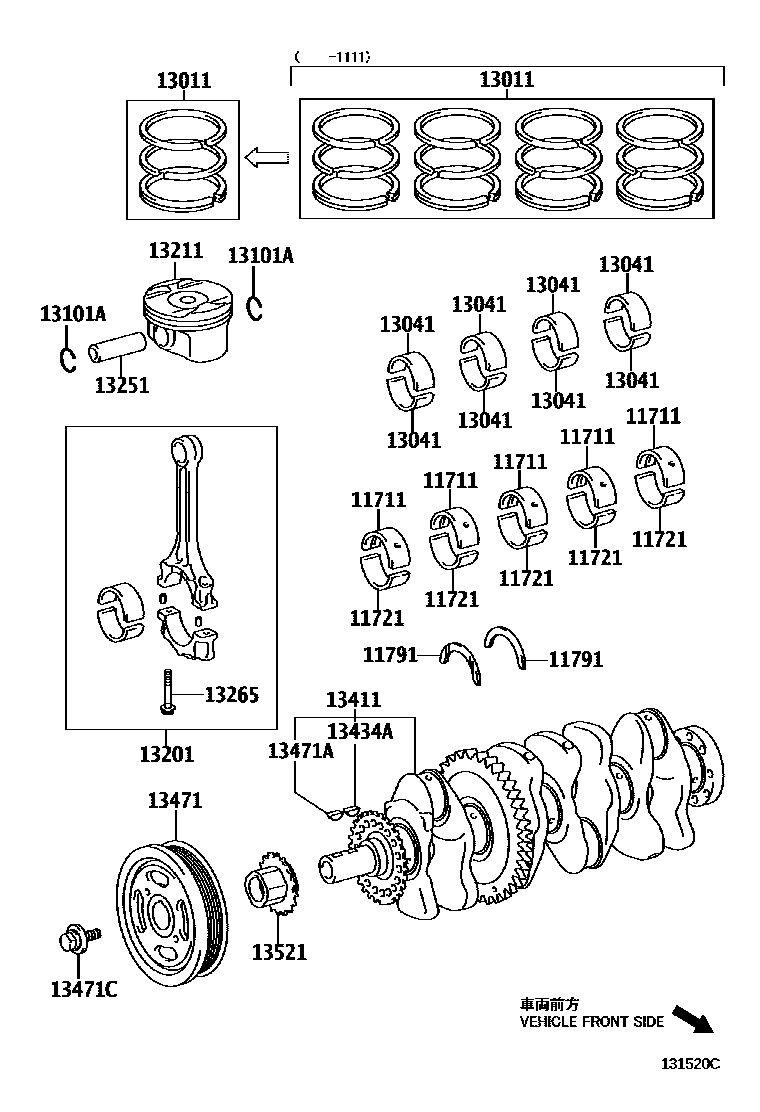

Parts diagram
11711BEARING, CRANKSHAFT
main11071-31031-01i200905-200906
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-01i200906-201502
MARK1,NO.2,REFER R/M
sub11071-31060
main11071-31031-02i200906-201502
MARK2,NO.2,REFER R/M
sub11071-31060
main11071-31031-02i200905-200906
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-03i200906-201502
MARK3,NO.2,REFER R/M
sub11071-31060
main11071-31031-03i200905-200906
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i200906-201502
MARK4,NO.2,REFER R/M
sub11071-31060
main11071-31031-04i200905-200906
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i200906-201502
MARK5,NO.2,REFER R/M
sub11071-31060
main11071-31031-05i200905-200906
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11701-31090-01i200905-200906
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-01i200906-201502
MARK 1,NO.1,REFER R/M
sub11701-31100
main11701-31090-02i200906-201502
MARK 2,NO.1,REFER R/M
sub11701-31100
main11701-31090-02i200905-200906
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i200906-201502
MARK 3,NO.1,REFER R/M
sub11701-31100
main11701-31090-03i200905-200906
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i200905-200906
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i200906-201502
MARK 4,NO.1,REFER R/M
sub11701-31100
main11701-31090-05i200906-201502
MARK 5,NO.1,REFER R/M
sub11701-31100
main11701-31090-05i200905-200906
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11711-0V020-01i201111-201307
MARK 1,REFER REPAIR MANUAL
main11711-0V020-02i201111-201307
MARK 2,REFER REPAIR MANUAL
main11711-0V020-03i201111-201307
MARK 3,REFER REPAIR MANUAL
main11711-0V020-04i201111-201307
MARK 4,REFER REPAIR MANUAL
main11711-0V040-01i201307
MARK 1,REFER REPAIR MANUAL
main11711-0V040-02i201307
MARK 2,REFER REPAIR MANUAL
main11711-0V040-03i201307
MARK 3,REFER REPAIR MANUAL
main11711-0V040-04i201307
MARK 4,REFER REPAIR MANUAL
main11711-36020-01i200905-201111
MARK 1,REFER REPAIR MANUAL
main11711-36020-02i200905-201111
MARK 2,REFER REPAIR MANUAL
main11711-36020-03i200905-201111
MARK 3,REFER REPAIR MANUAL
main11711-36020-04i200905-201111
MARK 4,REFER REPAIR MANUAL
11721BEARING, CRANKSHAFT, NO.2
main11721-0V020-01i201111-201307
MARK 1,REFER REPAIR MANUAL
main11721-0V020-02i201111-201307
MARK 2,REFER REPAIR MANUAL
main11721-0V020-03i201111-201307
MARK 3,REFER REPAIR MANUAL
main11721-0V020-04i201111-201307
MARK 4,REFER REPAIR MANUAL
main11721-0V040-01i201307
MARK 1,REFER REPAIR MANUAL
main11721-0V040-02i201307
MARK 2,REFER REPAIR MANUAL
main11721-0V040-03i201307
MARK 3,REFER REPAIR MANUAL
main11721-0V040-04i201307
MARK 4,REFER REPAIR MANUAL
main11721-36020-01i200905-201111
MARK 1,REFER REPAIR MANUAL
main11721-36020-02i200905-201111
MARK 2,REFER REPAIR MANUAL
main11721-36020-03i200905-201111
MARK 3,REFER REPAIR MANUAL
main11721-36020-04i200905-201111
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V020i201111-201205
STD
main11791-36010i200905-201111
STD
13011RING SET, PISTON
main13011-0V050i201111-201205
STD
main13011-31150i200905-201411
STD
sub13011-31151
main13011-31151i201412-201503
STD
main13011-36020i200905-201111
STD
sub13011-36060
13041BEARING, CONNECTING ROD
main13041-0P040i200905-200906
(L):REFER R/M
sub13041-0P080
main13041-31070-01i201205-201502
MARK 1,(J):REFER R/M
sub13041-31100
main13041-31070-01i200905-201205
MARK1,(J):REFER R/M
sub13041-31100
main13041-31070-02i201205-201502
MARK 2,(J):REFER R/M
sub13041-31100
main13041-31070-02i200905-201205
MARK2,(J):REFER R/M
sub13041-31100
main13041-31070-03i200905-201205
MARK3,(J):REFER R/M
sub13041-31100
main13041-31070-03i201205-201502
MARK 3,(J):REFER R/M
sub13041-31100
main13041-31070-04i201205-201502
MARK 4,(J):REFER R/M
sub13041-31100
main13041-31070-04i200905-201205
MARK4,(J):REFER R/M
sub13041-31100
main13281-0V020-01i201111-201205
MARK 1,REFER REPAIR MANUAL
sub13281-0V021
main13281-0V020-02i201111-201205
MARK 2,REFER REPAIR MANUAL
sub13281-0V021
main13281-0V020-03i201111-201205
MARK 3,REFER REPAIR MANUAL
sub13281-0V021
main13281-36020-01i200905-201111
MARK 1,REFER REPAIR MANUAL
sub13281-36021
main13281-36020-02i200905-201111
MARK 2,REFER REPAIR MANUAL
sub13281-36021
main13281-36020-03i200905-201111
MARK 3,REFER REPAIR MANUAL
sub13281-36021
13101PISTON SUB-ASSY, W/PIN
main13101-31091i200905-200906
STD
sub13101-31092
main13101-31092-A0i200906-201205
STD,MARK A,REFER REPAIR MANUAL
sub13101-31092
main13101-31092-B0i200906-201205
STD,MARK B,REFER REPAIR MANUAL
sub13101-31092
main13101-31092-C0i200906-201205
STD,MARK C,REFER REPAIR MANUAL
sub13101-31092
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200905-201205
13201ROD SUB-ASSY, CONNECTING
main13201-09A80-A0i201111-201205
MARK A,REFER REPAIR MANUAL
sub13201-09A81
sub13201-39225
main13201-09A80-B0i201111-201205
MARK B,REFER REPAIR MANUAL
sub13201-09A81
sub13201-39225
main13201-09A80-C0i201111-201205
MARK C,REFER REPAIR MANUAL
sub13201-09A81
sub13201-39225
main13201-39135i200905-201205
sub13201-39137
main13201-39135-A0i201205-201503
MARK A
sub13201-39135
sub13201-39137
main13201-39135-B0i201205-201503
MARK B
sub13201-39135
sub13201-39137
main13201-39135-C0i201205-201503
MARK C
sub13201-39135
sub13201-39137
main13201-39225-A0i200905-201111
MARK A,REFER REPAIR MANUAL
sub13201-39226
main13201-39225-B0i200905-201111
MARK B,REFER REPAIR MANUAL
sub13201-39226
main13201-39225-C0i200905-201111
MARK C,REFER REPAIR MANUAL
sub13201-39226
13211PISTON
main13211-0V060-A0i201111-201205
MARK A,REFER REPAIR MANUAL
main13211-0V060-B0i201111-201205
MARK B,REFER REPAIR MANUAL
main13211-0V060-C0i201111-201205
MARK C,REFER REPAIR MANUAL
main13211-36040-A0i200905-201011
MARK A,REFER REPAIR MANUAL
sub13211-36041
main13211-36040-B0i200905-201011
MARK B,REFER REPAIR MANUAL
sub13211-36041
main13211-36040-C0i200905-201011
MARK C,REFER REPAIR MANUAL
sub13211-36041
main13211-36041-A0i201011-201111
MARK A,REFER REPAIR MANUAL
main13211-36041-B0i201011-201111
MARK B,REFER REPAIR MANUAL
main13211-36041-C0i201011-201111
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
main13251-0H040-A0i201111-201205
MARK A,REFER REPAIR MANUAL
main13251-0H040-B0i201111-201205
MARK B,REFER REPAIR MANUAL
main13251-0H040-C0i201111-201205
MARK C,REFER REPAIR MANUAL
main13251-28020-A0i200905-201111
MARK A,REFER REPAIR MANUAL
main13251-28020-B0i200905-201111
MARK B,REFER REPAIR MANUAL
main13251-28020-C0i200905-201111
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-28010i200905-201205
sub13265-28020
main13265-31020i200905-201205
13411CRANKSHAFT
main13401-0V030i201111-201307
sub13401-36021
main13401-0V031i201307
sub13401-36021
main13401-31040i200905-201409
sub13401-31041
main13401-31041i201410-201503
sub13401-31021
main13401-36020i200905-201111
sub13401-36021
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i200905-201205
13471PULLEY, CRANKSHAFT
main13470-0V030i201111-201205
main13470-31030i200905-201205
main13470-36010i200905-201111
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i200905-201205
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200905-201412
main90119-16020i200905-201503
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0V020i201111-201205
main13521-31041i200905-201205
main13521-36010i200905-201111

17 parts on this diagram · 2 diagrams in section
