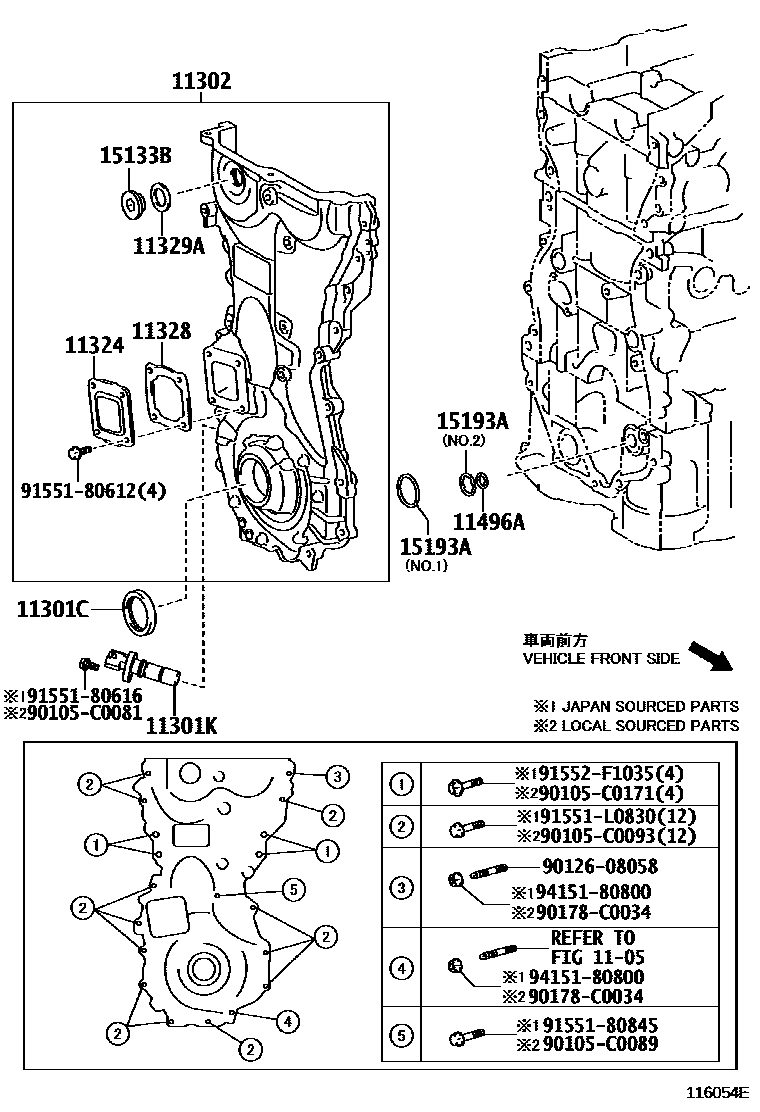

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42043i1ARFE..ASU40200905-201111

sub90311-42051

main90311-42045i2GRFE..GSU45200905-201205

main90311-C0017i1ARFE..ASU40201205-201312

main90311-C0036i1ARFE..ASU40201312

11301KSENSOR, CRANK POSITION

main90919-05070i1ARFE..ASU40200905-201205

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0V030i1ARFE..ASU40201111-201205

main11310-31020i2GRFE..GSU45200905-201205

main11310-36020i1ARFE..ASU40200905-201111

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFE..GSU45200905-201205

main11324-36010i1ARFE..ASU40201205

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFE..GSU45201205

main11328-36020i1ARFE..ASU40200905-201205

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i1ARFE..ASU40200905-201205

sub11329-36020

11496AGASKET, OIL HOLE COVER

main11496-0V010i1ARFE..ASU40201205

main11496-36010i1ARFE..ASU40200905-201111

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i1ARFE..ASU40200905-201205

15193AGASKET, OIL PUMP

main15193-0V010i1ARFE..ASU40201205

NO.1

main15193-36010i1ARFE..ASU40200905-201111

NO.1

main15197-0V010i1ARFE..ASU40201205

NO.2

main15197-36010i1ARFE..ASU40200905-201111

NO.2

90105C0081

main90105-C0081

90105C0089

main90105-C0089

90105C0093

main90105-C0093

90105C0171

main90105-C0171

9012608058

main90126-08058

90178C0034

main90178-C0034

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
