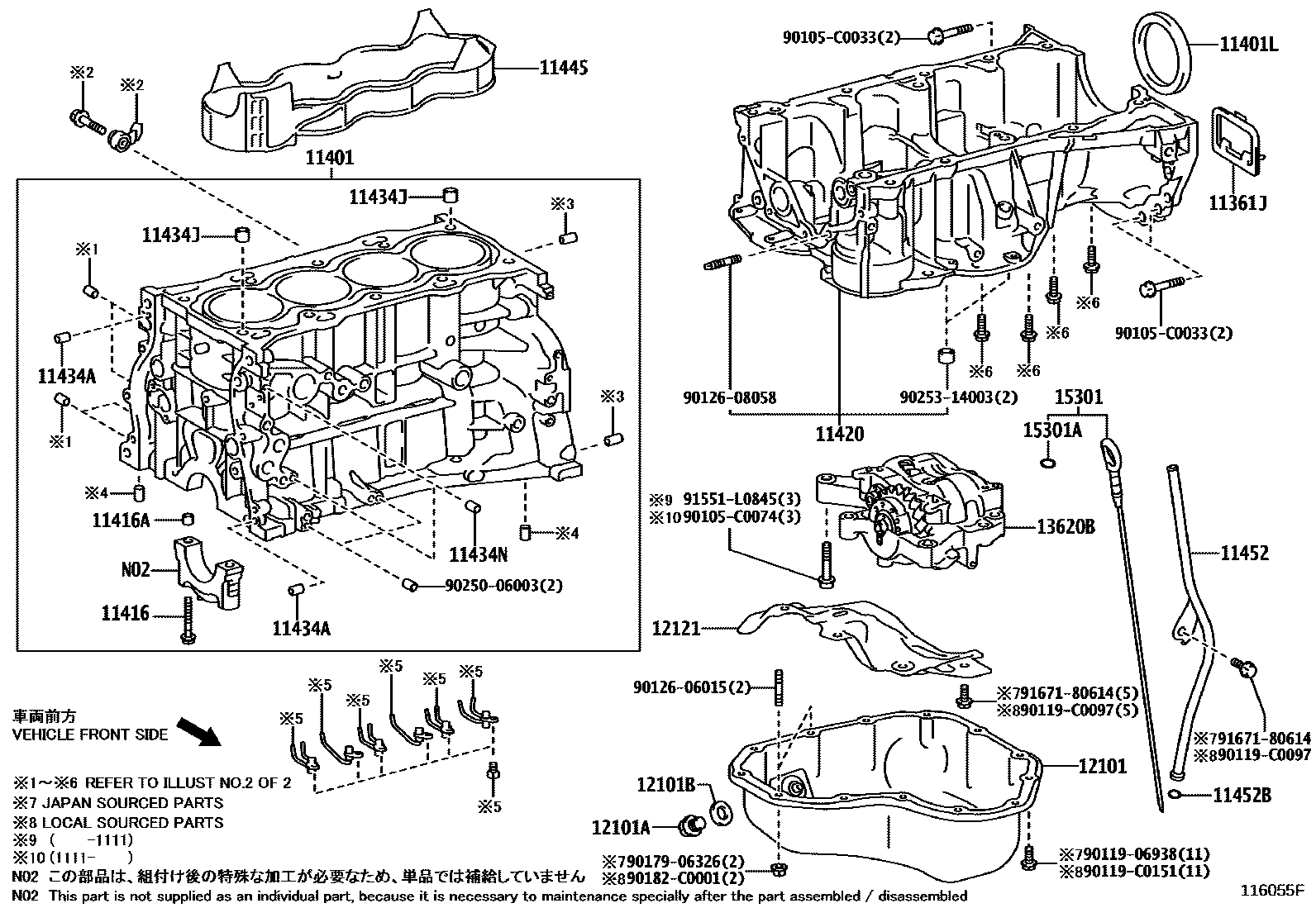

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1ARFE..ASU40200905-201205

main11361-31060i2GRFE..GSU45200905-201205

11401BLOCK SUB-ASSY, CYLINDER

main11401-80774i2GRFE..GSU45201205-201210

sub11401-80825

main11401-80800i2GRFE..GSU45201210-201406

main11401-80814i2GRFE..GSU45201407-201412

sub13011-31151

sub13011-31161

main11401-80826i2GRFE..GSU45201412-201503

sub11401-80A45

main11410-09540i1ARFE..ASU40201205

sub11410-39265

main11410-39095i1ARFE..ASU40200905-201108

main11410-39135i1ARFE..ASU40201108-201111

sub11410-39136

11401LSEAL, ENGINE REAR OIL

main90311-89005i1ARFE..ASU40200905-201111

sub90311-89006

main90311-C0016i1ARFE..ASU40201111-201112

main90311-C0023i1ARFE..ASU40201112-201205

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×8i2GRFE..GSU45201205

main90910-02173×10i1ARFE..ASU40200905-201205

main90910-C2005×10i1ARFE..ASU40201406

(L)

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1ARFE..ASU40200905-201205

main90253-C0006×10i1ARFE..ASU40201310

(L)

11420CRANKCASE ASSY, STIFFENING

main11420-0V020i1ARFE..ASU40201111-201205

main11420-36020i1ARFE..ASU40200905-201111

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFE..GSU45200905-201205

L=12,OD=4.0

main90250-06003×2i1ARFE..ASU40201205

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001×2i1ARFE..ASU40200905-201205

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003×2i1ARFE..ASU40200905-201205

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0V020i1ARFE..ASU40201205

(L)

main11445-36010i1ARFE..ASU40201111-201205

(J)

11452GUIDE, OIL LEVEL GAGE

main11452-0V020i1ARFE..ASU40201205

main11452-31060i2GRFE..GSU45201205

main11452-36020i1ARFE..ASU40200905-201111

sub11452-36021

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSU45200905-201205

main90301-C0037i1ARFE..ASU40201111-201205

main96741-19010i1ARFE..ASU40200905-201111

12101PAN SUB-ASSY, OIL

main12101-0V020i1ARFE..ASU40201111-201205

main12101-31121i2GRFE..GSU45201205

main12101-36040i1ARFE..ASU40200905-201111

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ARFE..ASU40200905-201205

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ARFE..ASU40200905-201205

main90430-C0005i1ARFE..ASU40201403

(L)

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0V020i1ARFE..ASU40201111-201205

main12121-31070i2GRFE..GSU45201205-201503

main12121-36030i1ARFE..ASU40200905-201111

13620BBALANCER ASSY, ENGINE

main13620-0V011i1ARFE..ASU40201211

(L)

main13620-36010i1ARFE..ASU40200905-201006

main13620-36011i1ARFE..ASU40201006-201111

main13620-36020i1ARFE..ASU40201211

(J)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0V010i1ARFE..ASU40201205

main15301-31090i2GRFE..GSU45201205

main15301-36030i1ARFE..ASU40200905-201111

sub15301-36031

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1ARFE..ASU40201205-201503

90105C0033

main90105-C0033

90105C0074

main90105-C0074

9011906938

main90119-06938

90119C0097

main90119-C0097

90119C0151

main90119-C0151

9012606015

main90126-06015

9012608058

main90126-08058

9017906326

main90179-06326

90182C0001

main90182-C0001

9025006003

main90250-06003

9025314003

main90253-14003

91551L0845

main91551-L0845

9167180614

main91671-80614

32 parts on this diagram · 3 diagrams in section
