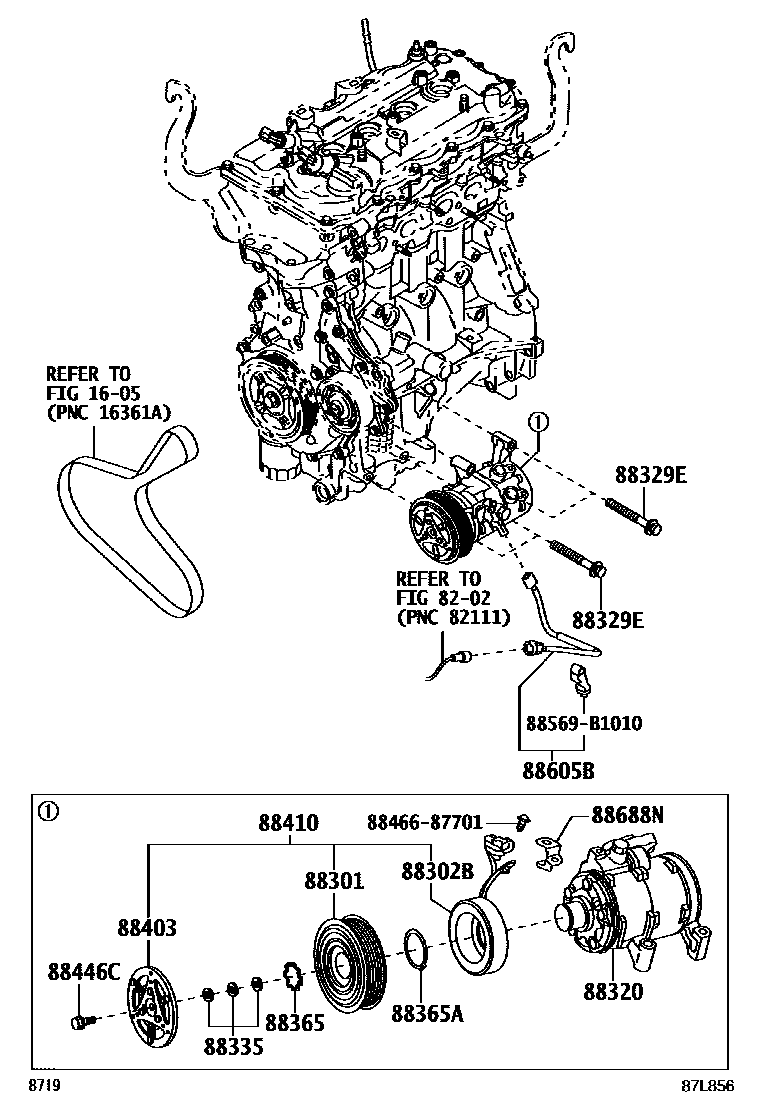

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ200iNGC200..IDNP202306

88302BSTATOR, MAGNET CLUTCH

main88411-BZ270iNGC200..MA202306

88320COMPRESSOR ASSY, COOLER

main88320-BZ400iNGC200..IDNP202306

88329EBOLT, COMPRESSOR, NO.1

main88329-B1020iNYC200..IDNP,THP¥440202306

main9004A-10144iNGC200..IDNP202306

IDN SOURCED PARTS

main90105-T0158iNGC200..MA202306

THA SOURCED PARTS

main91551-80850iNGC200..IDNP¥100202306

JAPAN SOURCED PARTS

88335GASKET KIT, OVERHAUL

main88335-14020iNGC200..IDNP202306

88365RING, SNAP

main90099-07125iNGC200..TAIW¥250202306

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iNGC200..IDNP202306

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iNGC200..IDNP202306

88410CLUTCH ASSY, MAGNET

main88410-BZ410iNGC200..IDNP202306

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iNGC200..IDNP202306

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main82210-BZ020iNGC200..IDNP202306

88688NBRACKET, COOLER

main88688-BZ290iNGC200..IDNP202306

8846687701

main88466-87701

88569B1010CLAMP (FOR COOLER RELAY)

main88569-B1010¥170

16 parts on this diagram · 2 diagrams in section
