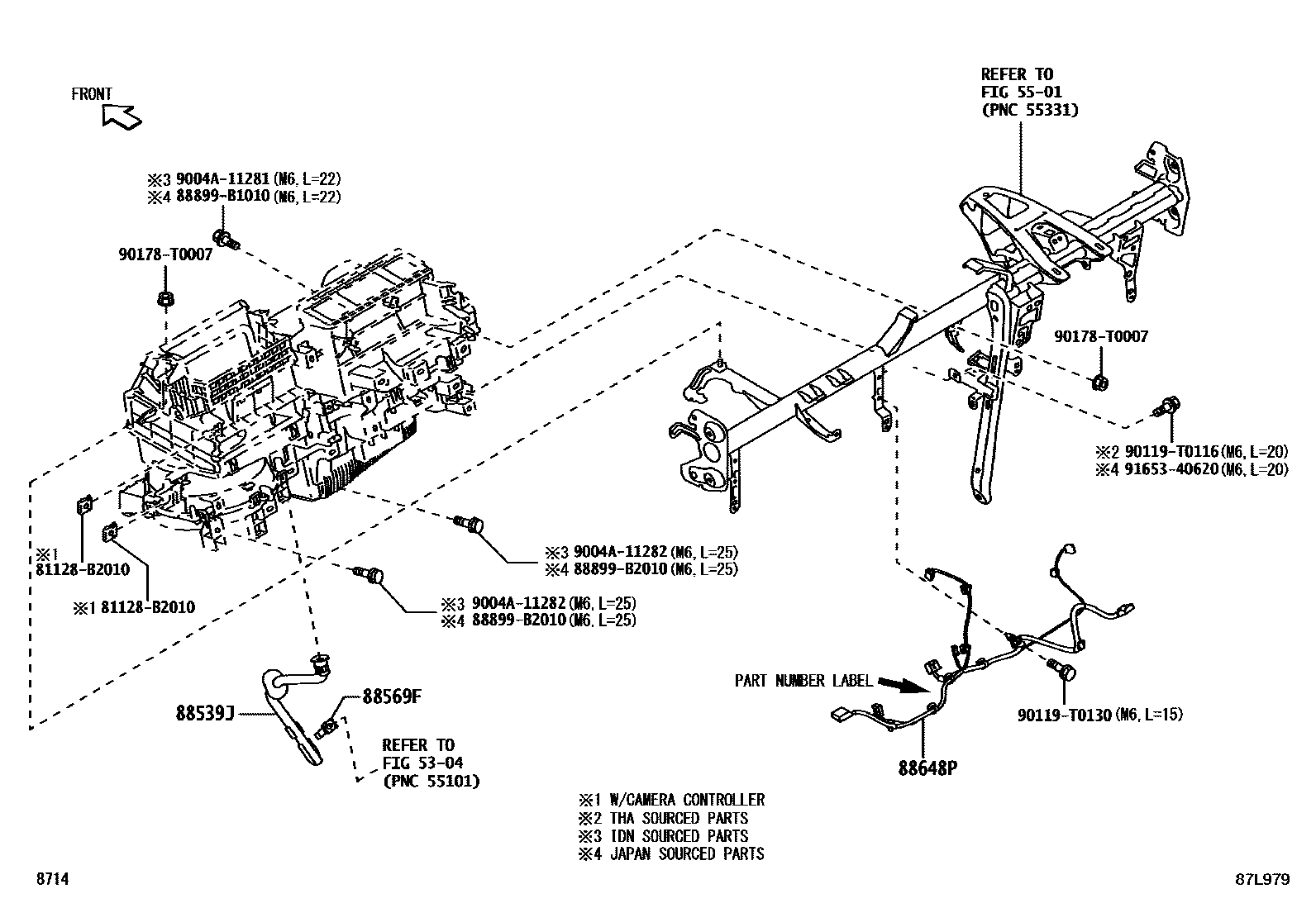

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1MANUAL 0007 1AUTO 0008 1AUTO 0009 1AUTO 0010 1AUTO 0011 1AUTO 0012 1AUTO(L/REAR,W/HEATRE&COOLER) 0014 1AUTO(W/REAR,W/HEATER&COOLER) 0016 1AUTO(W/REAR,L/HEATER)

5304

5501

88539JHOSE, DRAIN COOLER

main88539-BZ410iNYC200..RHD..(IDNP,THP)202306

main88539-BZ430iNYC200..MA202406

main88539-BZ450iNGC200..RHD..IDNP202306

main88539-BZ460iNGC200,NYC200..LHD..IDNP202306

main88539-BZ520iNGC200..MA202406

88569FCLAMP

mainC8899B1020iNYC200..MA202306

mainC8899B2010iNYC200..LHD;NGC200..IDNP202306

88648PWIRE,AIR CONDITIONER,NO.1

main88648-BZ510iNGC200..M..IDN202306

main88648-BZ530iNGC200,NYC200..H..IDN202306

main88648-BZ550iNYC200..TH202310

main88648-BZ600iNGC200..5F..LA202306

main88648-BZ610iNGC200..CVT..L..LA202306

main88648-BZ620iNGC200..LHD..M..GEN202306

PHILIPPINES

main88648-BZ630iNGC200..L..TAIW202310

main88648-BZ640iNGC200..H..TAIW202306

main88648-BZ650iNGC200..M..TAIW202310

main88648-BZ720iNGC200..RHD..M..GEN202306

main88648-BZ730iNGC200..RHD..LA;NGC200..RHD..H..GEN;NYC200..RHD..(GEN,LA)202306

81128B2010NUT, HEADLAMP

main81128-B2010¥170

88899B1010COVER, EVAPORATOR

main88899-B1010¥120

88899B2010COVER, EVAPORATOR

main88899-B2010¥150

9004A11281

main9004A-11281

9004A11282

main9004A-11282

90119T0116

main90119-T0116

90119T0130

main90119-T0130

90178T0007

main90178-T0007¥80

9165340620

main91653-40620¥60

14 parts on this diagram · 14 diagrams in section
