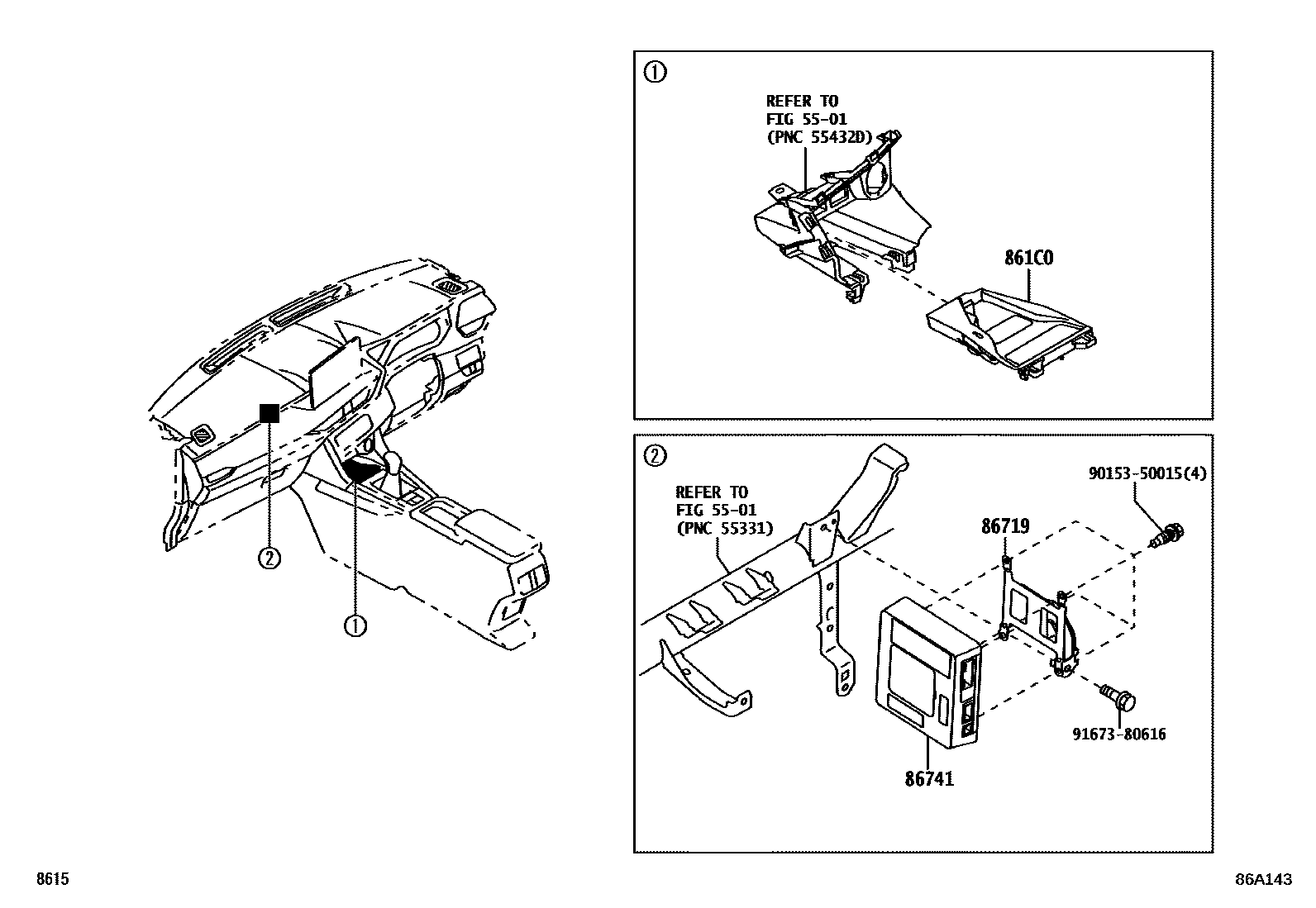

TELEPHONE & MAYDAY

0001 1 0002 1

5501

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-BZ020-C0iNYC200..RHD..(IDNP,MAP)..H202306

BLACK,TRIM2#

main861C0-BZ020-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main861C0-BZ050-C0iNGC200,NYC200..LHD..GEN202306

BLACK,TRIM2#

86719BRACKET, TELEPHONE

main86719-BP010iNYC200..TH202310

86741TRANSCEIVER, TELEPHONE

main86741-BP010iNYC200..TH202310-202401

main86741-BP011iNYC200..TH202402

9015350015

main90153-50015

9167380616

main91673-80616

6 parts on this diagram · 2 diagrams in section
