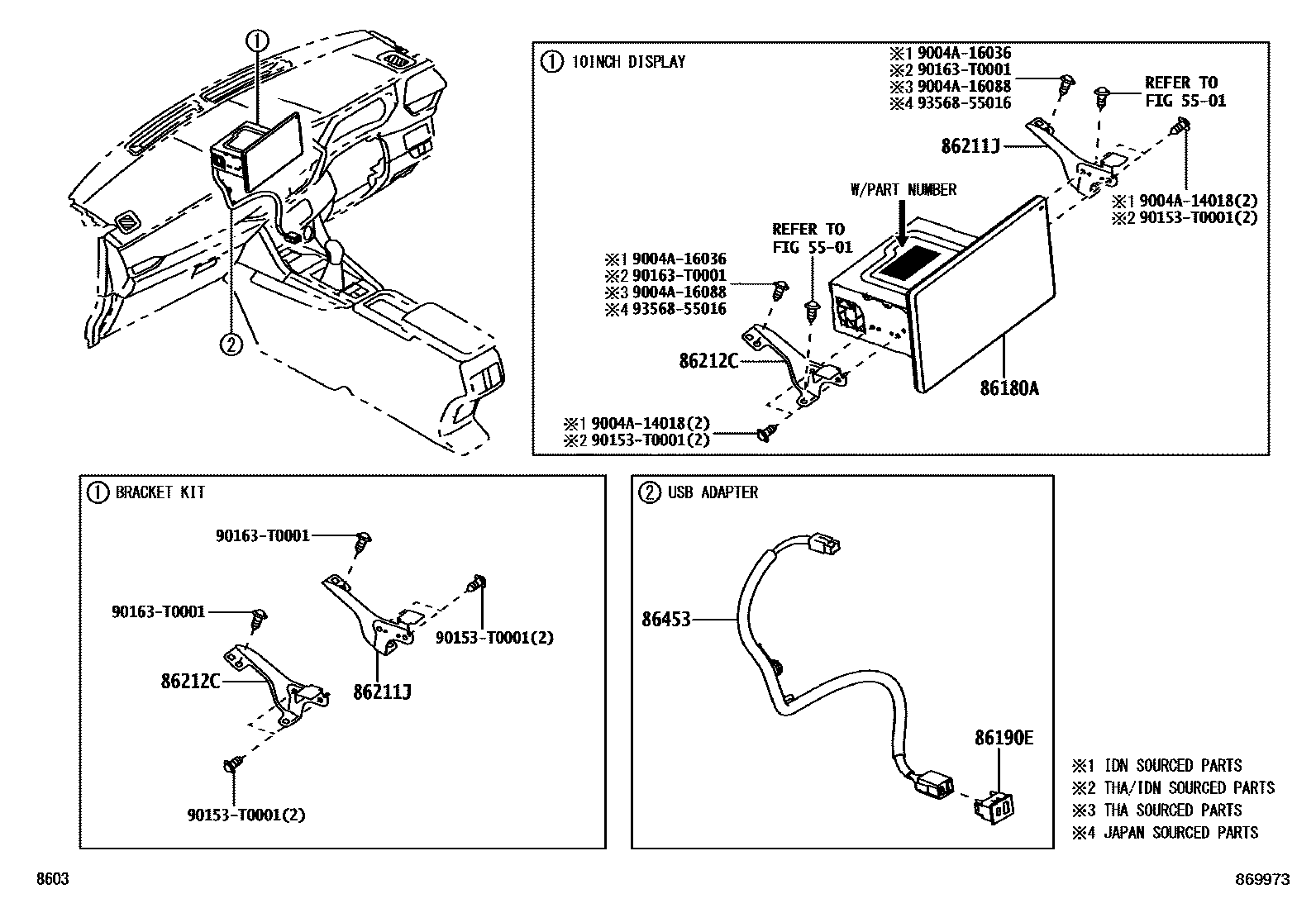

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0003 1

5501

86180ATUNER ASSY, STEREO COMPONENT

main86180-BP010iNGC200..TAIW202310

main86180-BZD20iNGC200..RHD..GEN;NYC200..(L,M)..TH;NYC200..RHD..IDNP..H202310-202312

W/PART NUMBER LABEL

sub86180-BZD21

main86180-BZD21iNGC200..RHD..GEN;NYC200..(L,M)..TH;NYC200..RHD..IDNP..H202401-202405

W/PART NUMBER LABEL

sub86180-BZD22

main86180-BZD22iNGC200..RHD..GEN;NYC200..(L,M)..TH;NYC200..RHD..IDNP..H202406

W/PART NUMBER LABEL

main86180-BZD30iNGC200..LHD..GEN202306-202402

MYANMAR

sub86180-BZD31

main86180-BZD31iNGC200..LHD..GEN202403

MYANMAR

main86180-BZD40iNGC200,NYC200..LHD..LA202306-202402

sub86180-BZD41

main86180-BZD41iNGC200,NYC200..LHD..LA202403

main86180-BZD90iNGC200,NYC200..RHD..LA202306-202402

sub86180-BZD91

main86180-BZD91iNGC200,NYC200..RHD..LA202403

main86180-BZE70iNGC200..RHD..GEN;NYC200..(L,M)..TH;NYC200..RHD..IDNP..H202306-202312

W/PART NUMBERLABEL

sub86180-BZE71

main86180-BZE71iNGC200..RHD..GEN;NYC200..(L,M)..TH;NYC200..RHD..IDNP..H202401

W/PART NUMBERLABEL

main86180-BZF00iNYC200..LHD..GEN202306-202402

sub86180-BZF01

main86180-BZF01iNYC200..LHD..GEN202403

main86180-BZF10iNYC200..H..TH202310-202312

sub86180-BZF11

main86180-BZF11iNYC200..H..TH202401-202405

sub86180-BZF12

main86180-BZF12iNYC200..H..TH202406

main86180-BZF30iNYC200..RHD..GEN202306-202402

BHUTAN

sub86180-BZF31

main86180-BZF31iNYC200..RHD..GEN202403

BHUTAN

main86180-BZF40iNYC200..L..LA;NGC200..LHD..CVT..LA202306-202402

DESTINATION PACKAGE(OTHER-ST.MARTIN

main86180-BZF41iNYC200..L..LA;NGC200..LHD..CVT..LA202403

DESTINATION PACKAGE(OTHER-ST.MARTIN

main86180-BZF50iNGC200..RHD..GEN202306-202402

EAST TIMOR

sub86180-BZF51

main86180-BZF51iNGC200..RHD..GEN202403

EAST TIMOR

86190EADAPTER ASSY, STEREO JACK

main86190-BZ100iNGC200..GEN,LA;NYC200..IDNP,THP202306

IDN SOURCED PARTS

main86190-BZ160iNGC200..GEN,LA;NYC200..IDNP,THP202306

THA SOURCED PARTS

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-BP010iNGC200..TAIW202310

main86211-BZ550iNGC200,NYC200..IDNP,THP202306

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-BP010iNGC200..TAIW202310

main86212-BZ550iNGC200,NYC200..IDNP,THP202306

86453WIRE, MULTI-MEDIA MODULE

main86203-BZ100iNGC200..GEN,LA;NYC200..IDNP,THP202306

IDN SOURCED PARTS

main86203-BZ210iNGC200..GEN,LA;NYC200..IDNP,THP202306

THA SOURCED PARTS

9004A14018

main9004A-14018

9004A16036

main9004A-16036

9004A16088

main9004A-16088

90153T0001

main90153-T0001

90163T0001

main90163-T0001

9356855016

main93568-55016

12 parts on this diagram · 2 diagrams in section
