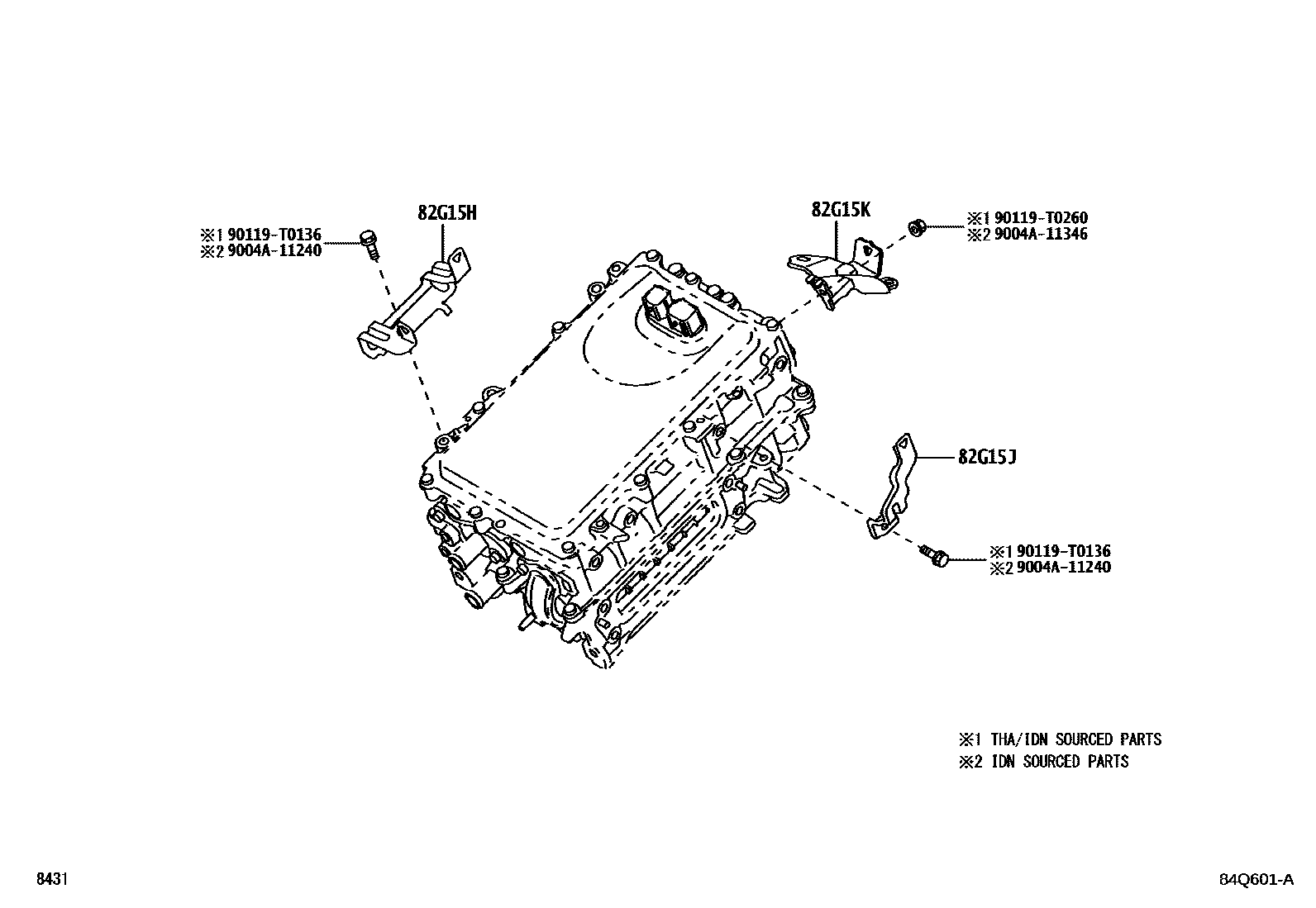

HEV INVERTER

0001 1 0002 1

82G15HBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-BZR00iNYC200..IDNP,THP202306

82G15JBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-BZR10iNYC200..IDNP,THP202306

82G15KBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-BZR40iNYC200..IDNP,THP202306

9004A11240

main9004A-11240

9004A11346

main9004A-11346

90119T0136

main90119-T0136

90119T0260

main90119-T0260

7 parts on this diagram · 2 diagrams in section
