SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1CONSOLE 0008 1SWITCH 0009 1SWITCH 0010 1SWITCH 0011 1BODY(NO.1) 0012 1BODY(NO.1) 0013 1BODY(NO.2) 0014 1SEAT 0015 1STEERING 0016 1STEERING 0017 1

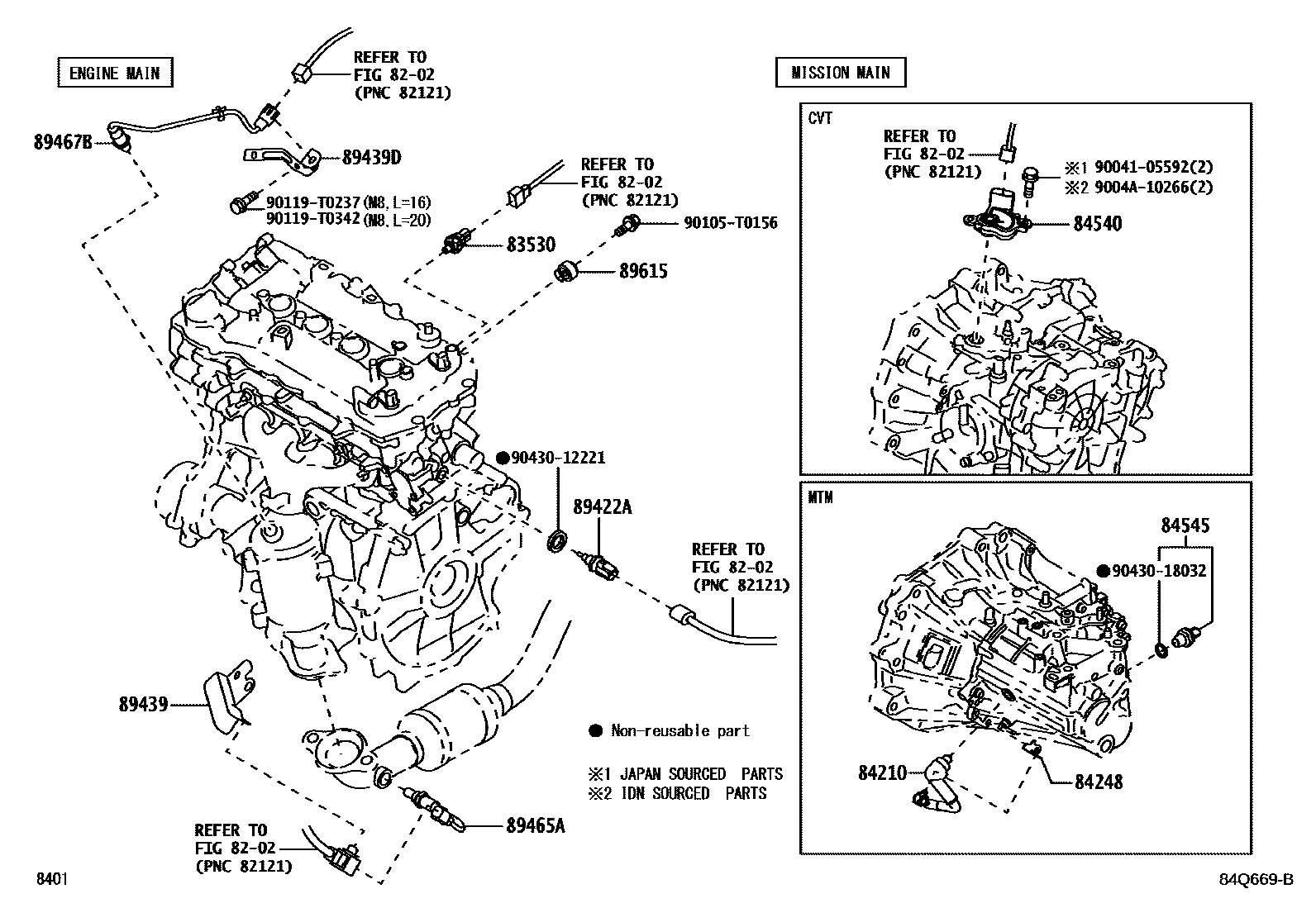

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNYC200..TH202310

main83530-52050iNGC200,NYC200..IDNP,MAP,TAIWP202306

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ120iNGC200..5F202306

84248CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-BZ110iNGC200..5F202306

84540SWITCH ASSY, NEUTRAL START

main84540-B2040iNGC200..CVT202306

84545SWITCH, NEUTRAL POSITION

main84545-BZ010iNGC200..5F202306

89422ASENSOR, WATER TEMPERATURE

main89422-33030iNGC200202306

main89422-B2030iNYC200202306

89439BRACKET, SENSOR

main89439-BZ201iNGC200..TAIW202306

main89439-BZ250iNYC200..IDNP,THP202306

89439DBRACKET, SENSOR, NO.1

main89439-BZ210iNGC200..MA202306

89465ASENSOR, OXYGEN NO.2

main89465-BZ610iNGC200,NYC200..IDNP,THP202306

89467BSENSOR, AIR FUEL RATIO

main89467-BZ020iNGC200,NYC200202306

89615SENSOR, KNOCK CONTROL

main89615-20090iNGC200,NYC200202306

9004105592

main90041-05592

9004A10266

main9004A-10266

90105T0156

main90105-T0156

90119T0237

main90119-T0237

90119T0342

main90119-T0342

9043012221

main90430-12221

9043018032

main90430-18032

19 parts on this diagram · 17 diagrams in section
