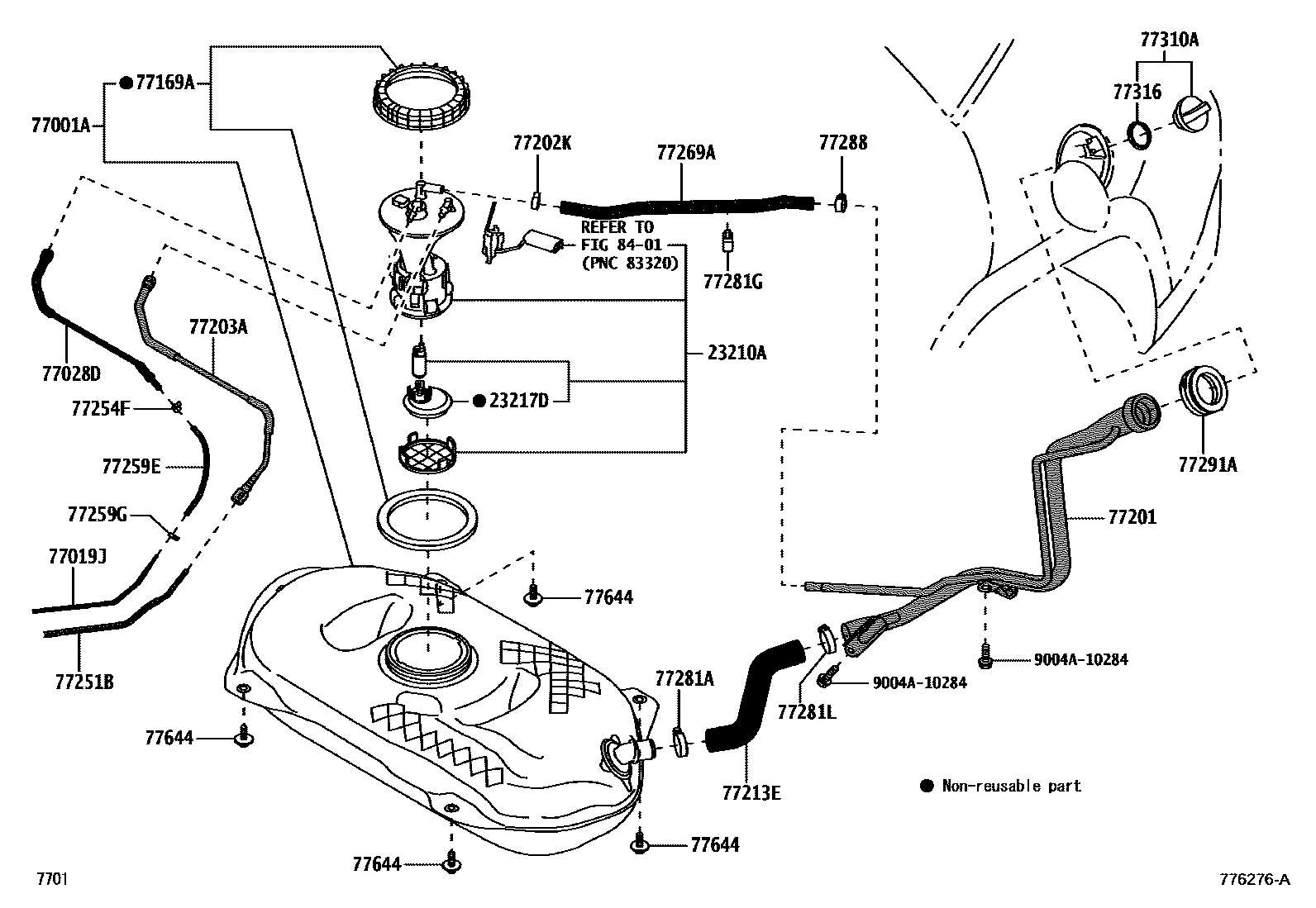

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID CABLE 0009 1FUEL LID CABLE 0010 1FUEL LID CABLE 0011 1FUEL LID CABLE

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-BZ440i2NRVE..NGC200..MA202306

main23210-BZ450i2NRVEX..NYC200..MA202306

23217DFILTER, FUEL PUMP

main23105-BZ020i2NRVEX..NYC200202306-202401

main23105-BZ030i2NRVEX..NYC200202402

77001ATANK SUB-ASSY, FUEL

main77001-BZ850iNGC200..IDNP202306

main77001-BZ860iNYC200..IDNP202306

main77001-BZ870iNGC200..MA202406

main77001-BZ880iNYC200..MA202406

main77001-BZ890iNGC200..TAIW202310

main77001-BZA00iNYC200..TH202310

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77263-BZ280iNGC200..MA202306

main77263-BZ350iNGC200..LHD..IDNP202306

main77263-BZ430iNYC200..RHD..(IDNP,THP)202306

main77263-BZ440iNYC200..LHD202306

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-BZ040iNGC200..TAIW202306

main77028-BZ050iNGC200..MA202406

main77028-BZ230iNYC200..IDNP202306

main77028-BZ231iNYC200..TH202310

main77028-BZ240iNYC200..MA202406

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNGC200,NYC200..TAIW,TH202310

main77169-B2030iNGC200,NYC200..MA202406

main77169-BZ040iNGC200,NYC200..IDNP202306

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ330iNGC200..IDNP202306

main77201-BZ350iNYC200..IDNP202306

main77201-BZ360iNGC200..MA202406

main77201-BZ370iNYC200..MA202406

main77201-BZ380iNYC200..TH202310

77202KCLAMP (FOR BREATHER HOSE)

main90044-67244iNGC200,NYC200..IDNP,THP202306

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ220iNGC200..TAIW202306

main77203-BZ440iNYC200..IDNP,THP202306

main77203-BZ450iNYC200..MA202406

main77203-BZ480iNGC200..MA202406

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ320iNGC200..MA202406

main77213-BZ380iNGC200..TAIW202306

main77213-BZ390iNYC200..IDNP202306

main77213-BZ420iNYC200..TH202310

77251BTUBE, FUEL MAIN

main77251-BZ420iNGC200..RHD..IDNP202306

main77251-BZ430iNGC200..TAIW202306

main77251-BZ540iNYC200..RHD..(IDNP,THP)202306

main77251-BZ550iNYC200..LHD202306

77254FCLAMP (FOR FUEL EMISSION HOSE, NO.1)

main90044-67271iNGC200..TAIW202306

77259EHOSE, FUEL

main77259-BZ120iNGC200,NYC200..MA202306

77259GCLIP, FUEL HOSE

main90044-67229iNGC200..TAIW202306

77269AHOSE, FUEL TANK BREATHER

main77269-BZ280iNGC200..MA202406

main77269-BZ320iNGC200..IDNP202306

main77269-BZ330iNYC200..IDNP202306

main77269-BZ340iNYC200..MA202406

main77269-BZ360iNYC200..TH202310

77281ACLAMP, FUEL FILLER PIPE

main90044-60129iNGC200,NYC200..IDNP,THP202306

77281GCLAMP, FUEL HOSE

main77281-BZ040iNGC200,NYC200..IDNP202306

main77281-BZ120iNGC200,NYC200..TAIW,TH202310

77281LCLAMP, FUEL HOSE

main90044-60129iNGC200,NYC200..IDNP,THP202306

77288CLAMP, BREATHER HOSE

main90460-22002iNGC200,NYC200..IDNP,THP202306

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ050iNGC200..TAIW202306

77310ACAP ASSY, FUEL TANK

main77300-52030iNGC200..TAIW202306

77316GASKET, FUEL TANK CAP

main77316-52040iNGC200,NYC200..IDNP,THP202306

77644BOLT, FUEL TANK

main90041-20292iNGC200,NYC200..IDNP,THP202306

8401

9004A10284

main9004A-10284

25 parts on this diagram · 10 diagrams in section
