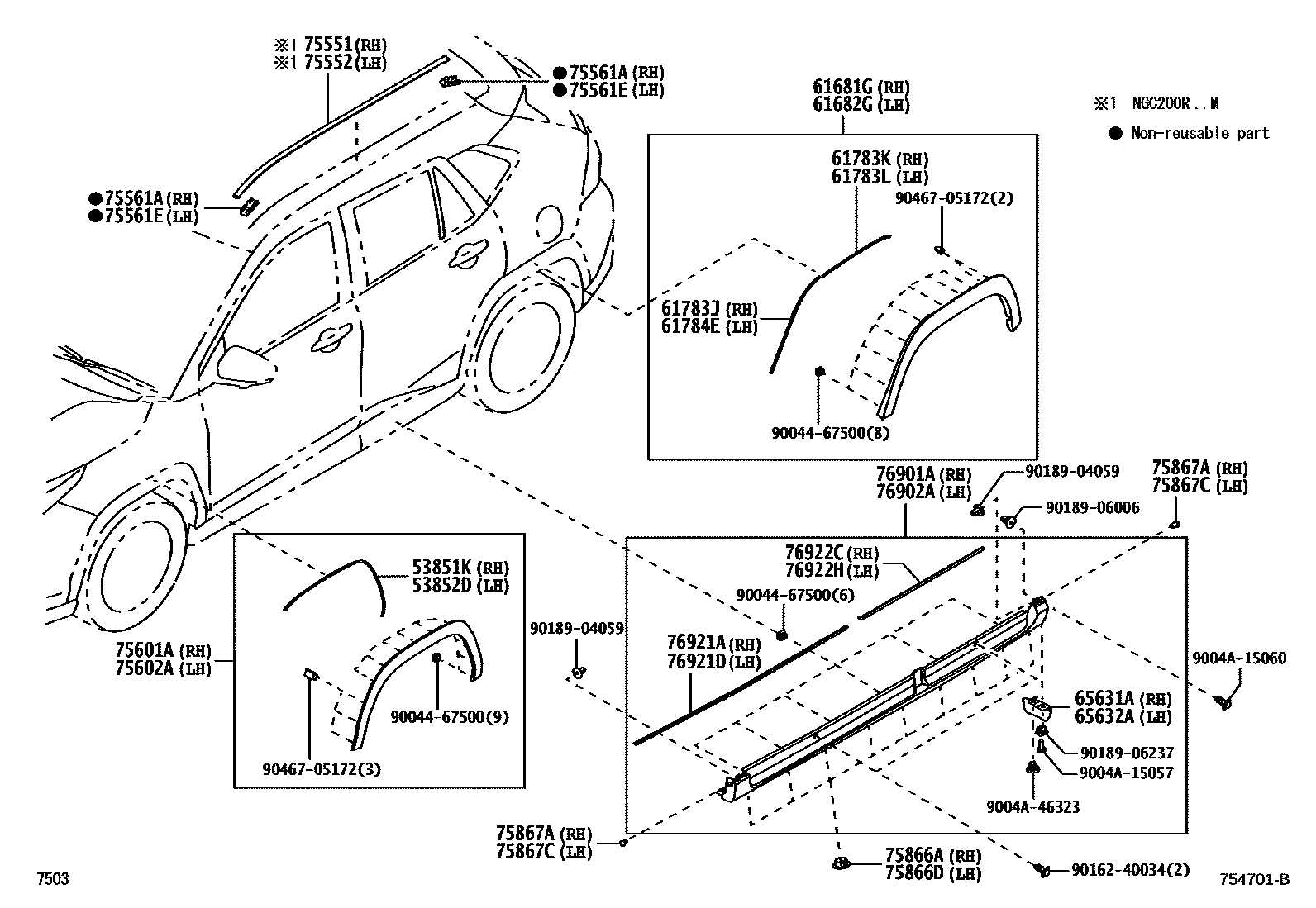

SIDE MOULDING
53851KPAD, FRONT WHEEL OPENING EXTENSION, RH
53852DPAD, FRONT WHEEL OPENING EXTENSION, LH
61681GEXTENSION, REAR WHEEL OPENING, RH
61682GEXTENSION, REAR WHEEL OPENING, LH
61783JPAD, REAR WHEEL OPENING EXTENSION, NO.2
61783KPAD, REAR WHEEL OPENING EXTENSION, RH
61783LPAD, REAR WHEEL OPENING EXTENSION, LH
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
65631APLATE, REAR WHEEL HOUSE, FRONT RH
65632APLATE, REAR WHEEL HOUSE, FRONT LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75561ECLIP, ROOF DRIP SIDE FINISH MOULDING, LH
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75866ARETAINER, ROCKER PANEL MOULDING
75866DRETAINER, ROCKER PANEL MOULDING
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
76901AMUDGUARD SUB-ASSY, SIDE, RH
76902AMUDGUARD SUB-ASSY, SIDE, LH
76921APROTECTOR, SIDE MUDGUARD, NO.1
76921DPROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76922HPROTECTOR, SIDE MUDGUARD, NO.2
9004467500
9004A15057
main9004A-15057
9004A15060
main9004A-15060
9004A46323
9016240034
9018904059
9018906006
9018906237
9046705172
35 parts on this diagram · 6 diagrams in section
