BATTERY CARRIER

0001 1 0002 1

1107

74404ACLAMP SUB-ASSY, BATTERY

main74404-BZ190iNGC200..MA202306

main74404-BZ220iNYC200..IDNP,THP202306

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-BZ140iNYC200..IDNP,THP202306

74405CCOVER SUB-ASSY,BATTERY

main74405-BZ070iNGC200..IDNP,TAIWP202306

main74405-BZ130iNGC200..MA202406

74410CARRIER ASSY, BATTERY

main74410-BZ080iNGC200..TAIW202306

main74410-BZ100iNYC200..IDNP,THP202306

74411CARRIER, BATTERY

main74411-BZ160iNGC200..IDNP202306

74451BBOLT, BATTERY CLAMP

main74451-BZ150iNGC200..IDNP202306

9004A10156

main9004A-10156

90105T0216

main90105-T0216

90182T0024

main90182-T0024

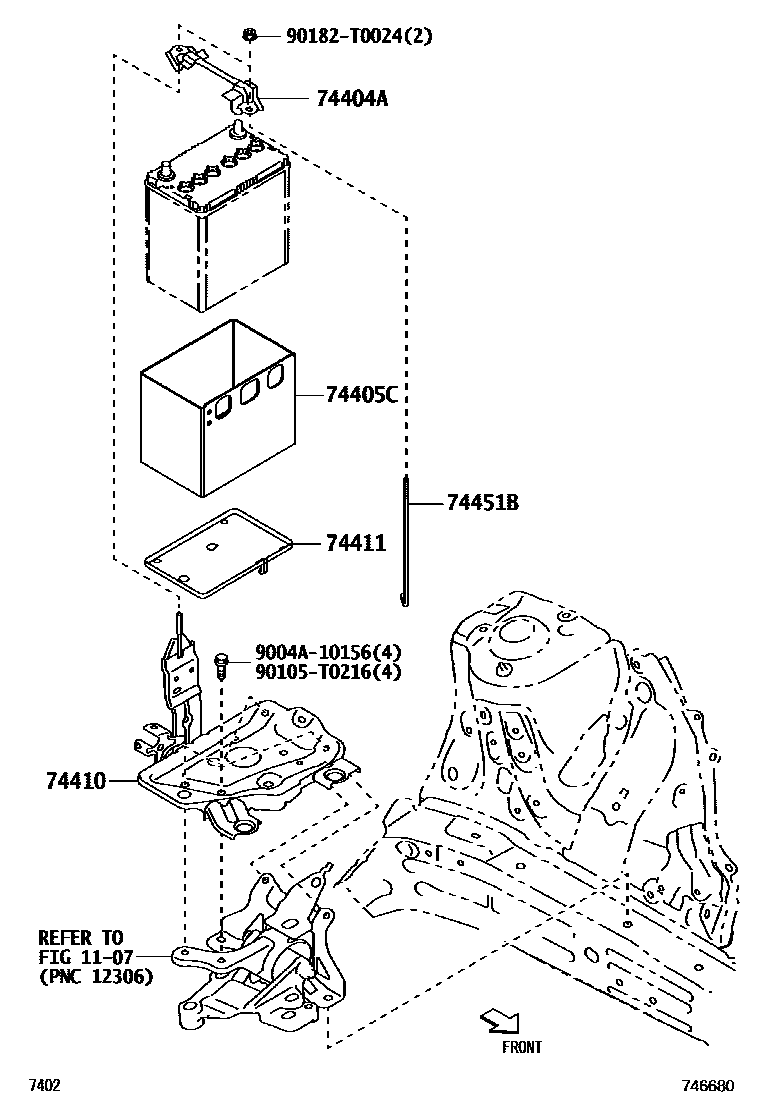

10 parts on this diagram · 2 diagrams in section
