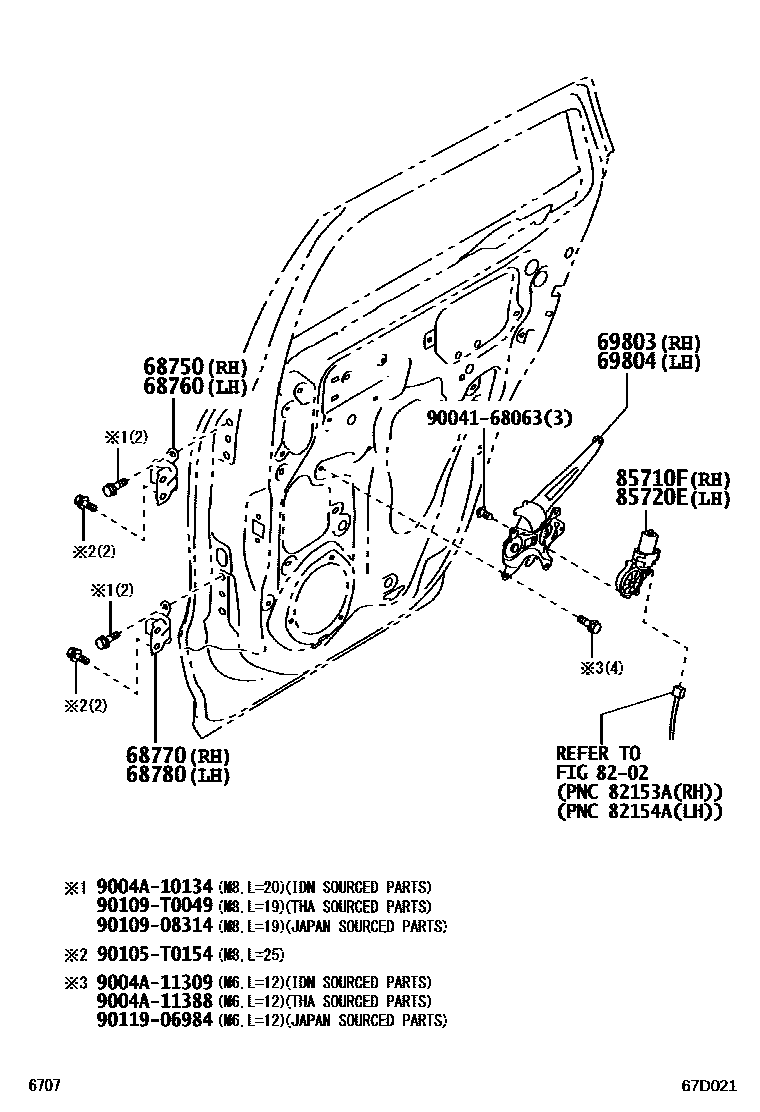

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0003 1 0004 1

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-BZ130iNGC200,NYC200..MA202406

main68750-BZ140iNGC200..TAIW202306

main68750-BZ150iNYC200..TH202310

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-BZ130iNGC200,NYC200..MA202406

main68760-BZ140iNGC200,NYC200..IDNP202306

main68760-BZ150iNYC200..TH202310

68770HINGE ASSY, REAR DOOR, LOWER RH

main68760-BZ130iNGC200,NYC200..MA202406

main68760-BZ140iNGC200,NYC200..IDNP202306

main68760-BZ150iNYC200..TH202310

68780HINGE ASSY, REAR DOOR, LOWER LH

main68750-BZ130iNGC200,NYC200..MA202406

main68750-BZ140iNGC200..TAIW202306

main68750-BZ150iNYC200..TH202310

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-BZ100iNGC200,NYC200..IDNP202306

main69803-BZ150iNGC200,NYC200..MA202406

main69803-BZ160iNYC200..TH202310

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-BZ100iNGC200..TAIW202306

main69804-BZ110iNYC200..TH202310

main69804-BZ140iNGC200,NYC200..MA202406

8202

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-BZ240iNGC200,NYC200..IDNP,THP202306

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-BZ270iNGC200,NYC200..IDNP,THP202306

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A11309

main9004A-11309

9004A11388

main9004A-11388

90105T0154

main90105-T0154

9010908314

main90109-08314

90109T0049

main90109-T0049

9011906984

main90119-06984

17 parts on this diagram · 3 diagrams in section
