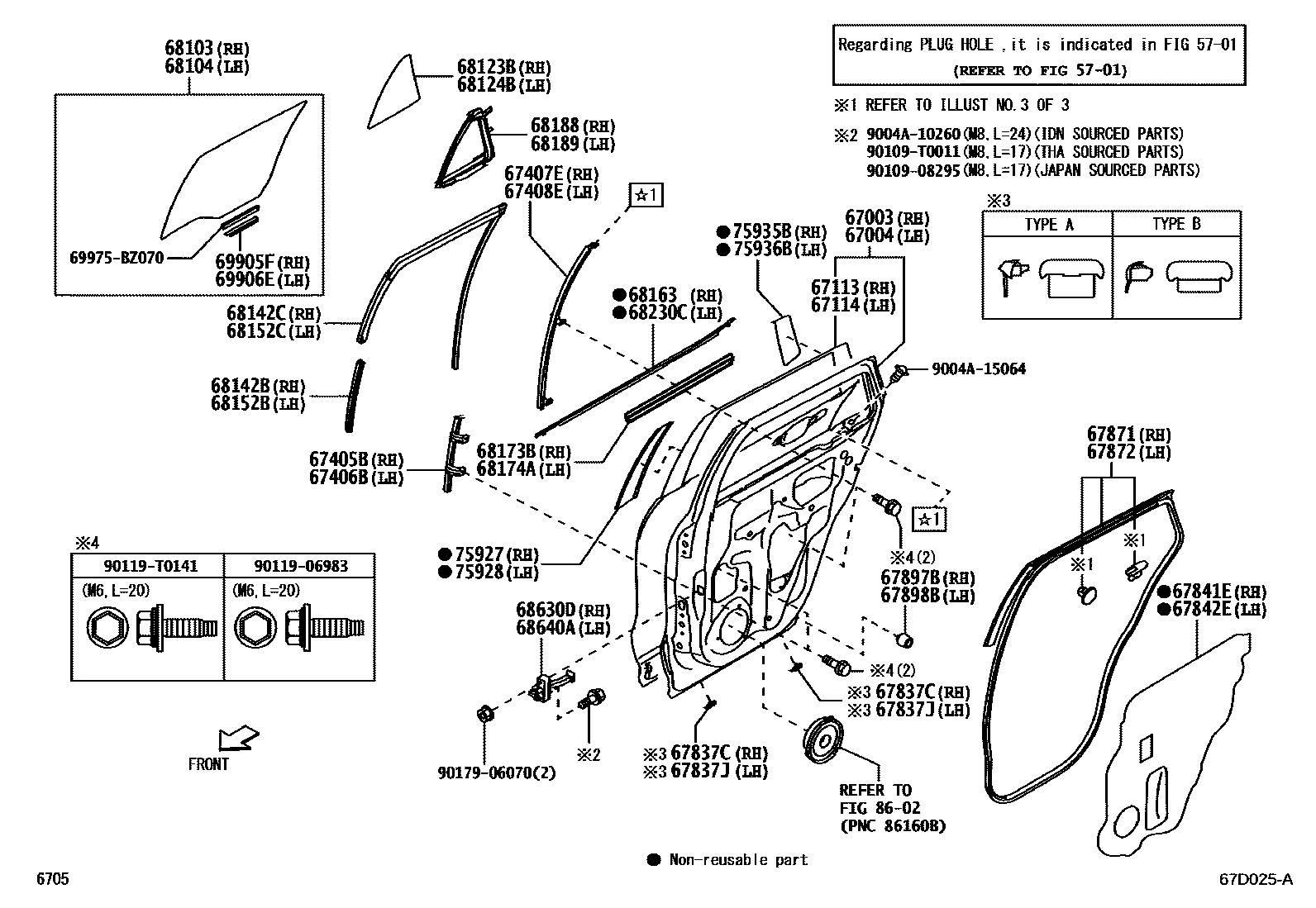

REAR DOOR PANEL & GLASS
5701
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
TYPE A
TYPE B
67837JSEAL, DOOR DUST PROOF
TYPE A
TYPE B
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142BRUN, REAR DOOR WINDOW, RH
68142CRUN, REAR DOOR GLASS, RH
68152BRUN, REAR DOOR WINDOW, LH
68152CRUN, REAR DOOR GLASS, LH
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
75927TAPE, BLACK OUT, NO.4 RH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75928TAPE, BLACK OUT, NO.4 LH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75935BTAPE, BLACK OUT, OUTER REAR RH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75936BTAPE, BLACK OUT, OUTER REAR LH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
8602
69975BZ070FILLER, REAR DOOR GLASS BRACKET
main69975-BZ070
9004A10260
main9004A-10260
9004A15064
main9004A-15064
9010908295
main90109-08295
90109T0011
main90109-T0011
9011906983
main90119-06983
90119T0141
main90119-T0141
9017906070
main90179-06070
48 parts on this diagram · 4 diagrams in section
