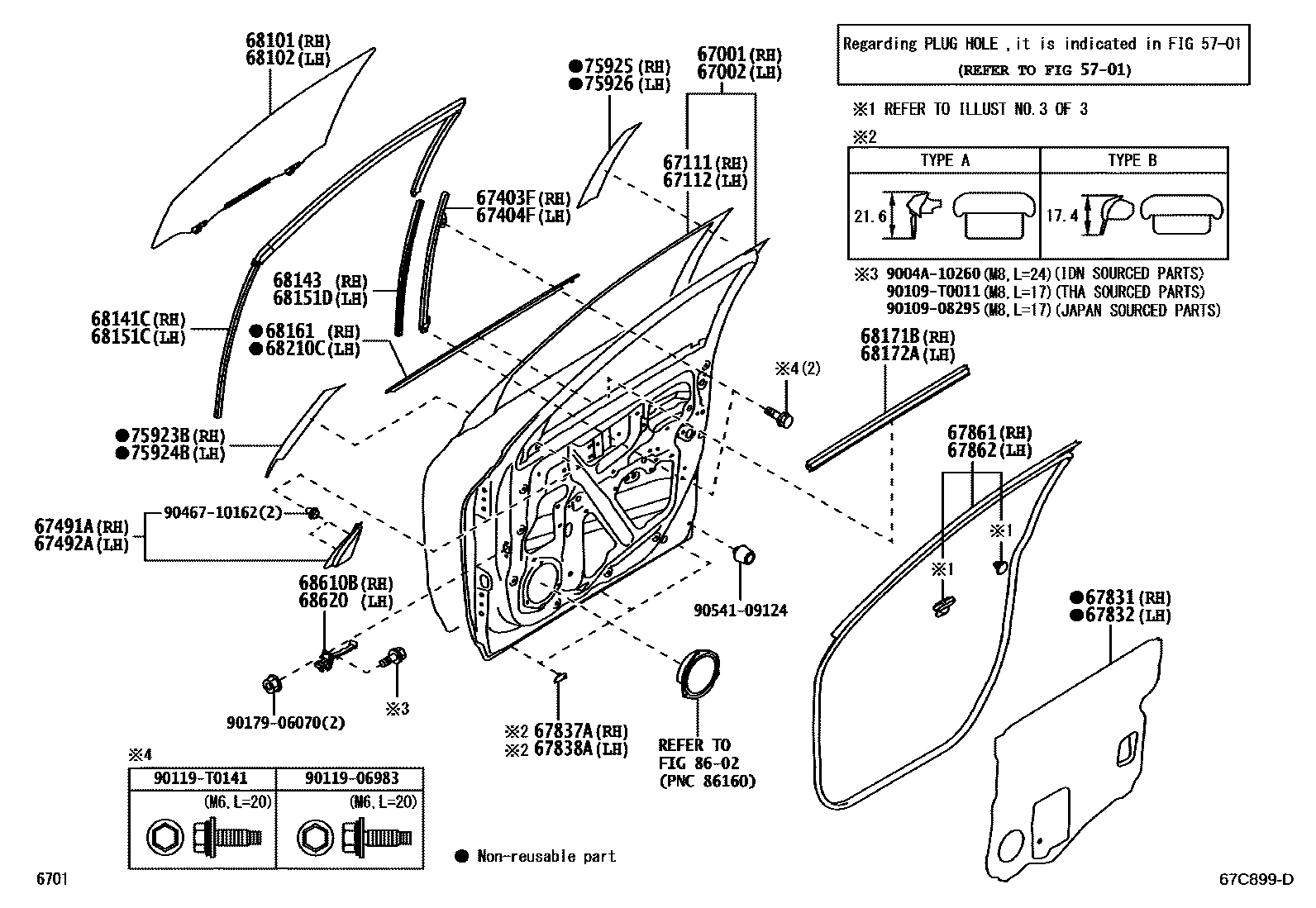

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
TYPE A
TYPE B
67838ASEAL, FRONT DOOR VENT, LH
TYPE A
TYPE B
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68143RUN, FRONT DOOR GLASS, LOWER
68151CRUN, FRONT DOOR GLASS, LH
68151DRUN, FRONT DOOR GLASS, LH
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75923BTAPE, BLACK OUT, NO.2 RH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75924BTAPE, BLACK OUT, NO.2 LH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75925TAPE, BLACK OUT, NO.3 RH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
75926TAPE, BLACK OUT, NO.3 LH
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,3Q3 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,3Q3 ,G64 ,S28
TUYAKESI BLACK DUMMYCOLOR,040 ,089 ,B88 ,G64 ,R77 ,S28
TUYAKESI BLACK DUMMYCOLOR,089 ,1K0 ,B88 ,R77 ,S44
TUYAKESI BLACK DUMMYCOLOR,040 ,1F7 ,1G3 ,3R3 ,B88
TUYAKESI BLACK DUMMYCOLOR,089 ,1D4 ,B88 ,R77
8602
9004A10260
main9004A-10260
9010908295
90109T0011
main90109-T0011
9011906983
90119T0141
main90119-T0141
9017906070
9046710162
9054109124
40 parts on this diagram · 7 diagrams in section
