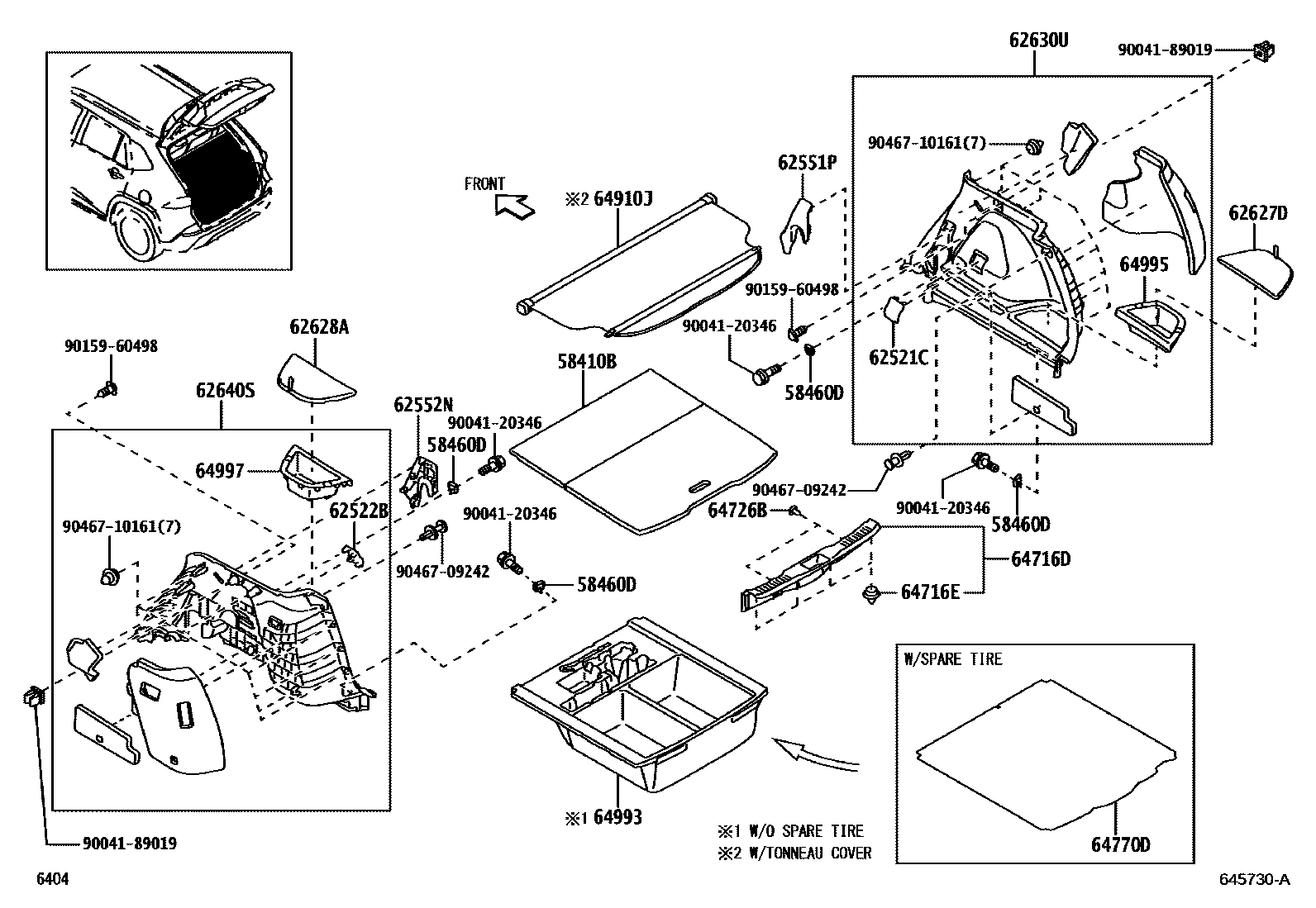

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-BZ390-C0iNGC200,NYC200..IDNP202306

BLACK,TRIM2#

main58410-BZ410-C0iNYC200..H..TH202310

BLACK,TRIM2#

main58410-BZ410-C0iNGC200..TAIW;NYC200..(L,M)..TH202310

BLACK,TRIM1#,2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNGC200,NYC200..IDNP,THP202306

62521CCOVER, QUARTER TRIM RH

main62521-BZ070-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62521-BZ070-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62522BCOVER, QUARTER TRIM LH

main62522-BZ020-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62522-BZ020-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62551PCOVER, REAR SEAT SIDE, RH

main62551-BZ150-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main62551-BZ150-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

62552NCOVER, REAR SEAT SIDE, LH

main62552-BZ050-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62552-BZ050-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62627DCOVER, SIDE TRIM, RH

main62627-BZ030-C1iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main62627-BZ030-C1iNGC200..TAIW202310

BLACK,TRIM1#,2#

62628ACOVER, SIDE TRIM, LH

main62628-BZ010-C1iNGC200..IDNP202306

BLACK,TRIM2#

main62636-BZ010-C0iNYC200..L,M;NYC200..IDNP..H202306

BLACK,TRIM2#

main62636-BZ010-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-BZ120-C0iNGC200..TAIW202306

BLACK,TRIM2#

main62630-BZ120-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-BZ120-C0iNGC200..IDNP202306

BLACK,TRIM2#

main62640-BZ130-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main62640-BZ130-C0iNYC200..MA202306

BLACK,TRIM2#

64716DCOVER, DECK TRIM, REAR

main64716-BZ120-C0iNGC200..TAIW202306

BLACK,TRIM2#

main64716-BZ120-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-T0021iNGC200,NYC200..IDNP,THP202306

64726BCLIP, DECK REAR TRIM

main90467-T0045-C0iNYC200..L,M;NGC200..IDNP;NYC200..IDNP..H202306

BLACK,TRIM2#

main90467-T0045-C0iNGC200..TAIW202310

BLACK,TRIM1#,2#

64770DCOVER ASSY, SPARE WHEEL

main64770-BZ060-C0iNGC200..IDNP202306

BLACK,TRIM2#

main64770-BZ120-C0iNYC200..IDNP202306

BLACK,TRIM2#

64910JCOVER ASSY, TONNEAU

main64910-BZ030-C0iNYC200..M;NGC200..IDNP;NYC200..IDNP..(H,L)202306

BLACK,TRIM2#

main64910-BZ030-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main64910-BZ050-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

64993BOX, DECK FLOOR, REAR

main64993-BZ070iNYC200..MA202310

main64993-BZ080iNGC200..MA202310

64995BOX, DECK FLOOR, RH

main64995-BZ010-C0iNGC200..IDNP202306

BLACK,TRIM2#

64997BOX, DECK FLOOR, LH

main64997-BZ010-C0iNGC200..IDNP202306

BLACK,TRIM2#

9004120346

main90041-20346

9004189019

main90041-89019

9015960498

main90159-60498

9046709242

main90467-09242

9046710161

main90467-10161

23 parts on this diagram · 2 diagrams in section
