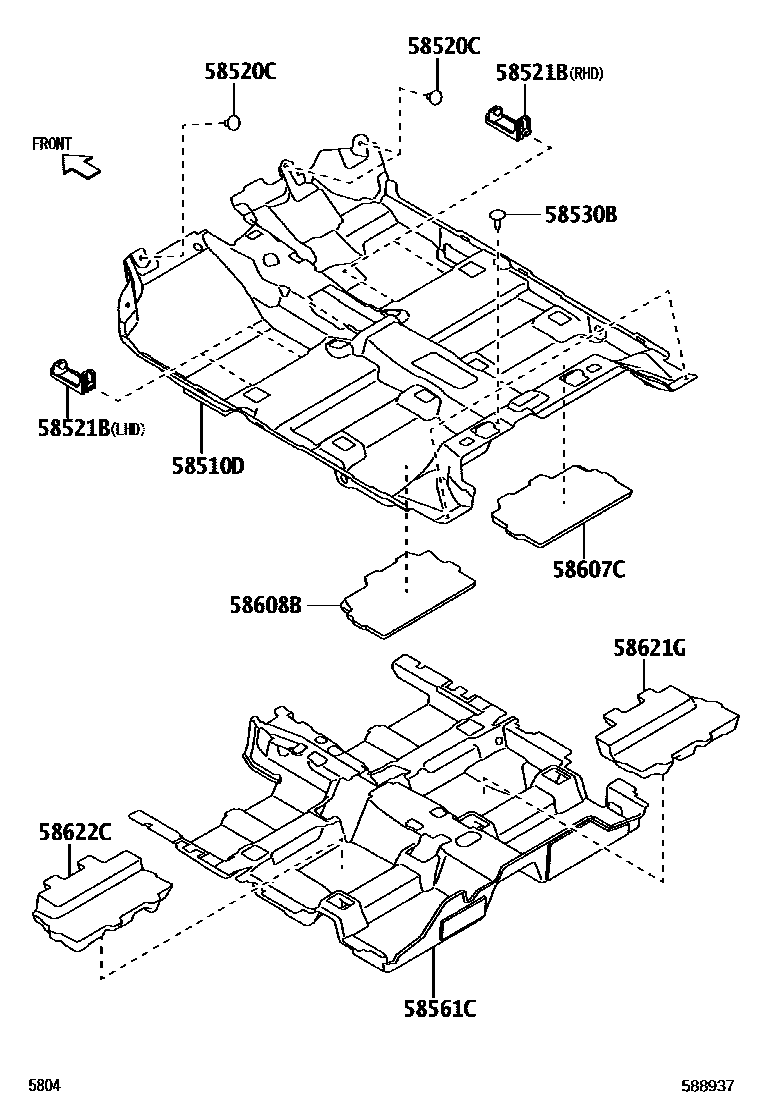

MAT & CARPET

0001 1 0002 1 0003 1FLOOR MAT 0005 1FLOOR MAT 0006 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58051-BZ390-C0iNGC200..5F..IDN202306

BLACK,TRIM2#

main58051-BZ400-C0iNGC200..RHD..IDNP..CVT202306

BLACK,TRIM2#

main58051-BZ410-C0iNYC200..RHD..IDNP202306

BLACK,TRIM2#

main58510-BY450-C0iNGC200..LHD..IDNP202306

BLACK,TRIM2#

main58510-BY460-C0iNYC200..LHD202306

BLACK,TRIM2#

main58510-BY470-C0iNYC200..(L,M)..TH202310

BLACK,TRIM2#

main58510-BY470-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main58510-BY480-C0iNGC200..MA202406

BLACK,TRIM2#

main58510-BY490-C0iNYC200..MA202406

BLACK,TRIM2#

main58510-BY500-C0iNGC200..TAIW202310

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-C1iNGC200..TAIW202306

BLACK,TRIM2#

main9004A-46131-C1iNGC200..TAIW202310

BLACK,TRIM1#,2#

58521BHOOK, FLOOR CARPET

main58522-52030iNGC200,NYC200..IDNP,THP¥380202306

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iNGC200..IDNP202306

BLACK,TRIM2#

sub90467-07049¥90

58561CSILENCER, FRONT FLOOR, NO.1

main58561-BZ100iNGC200..IDNP202306

main58561-BZ110iNYC200..IDNP202306

main58561-BZ120iNYC200..TH202310

main58561-BZ130iNGC200..MA202406

main58561-BZ140iNYC200..MA202406

main58561-BZ150iNGC200..TAIW202310

58607CPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

main58676-BZ060iNYC200..MA202306

main58676-BZ070iNGC200..IDNP202306

58608BPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

main58677-BZ060iNYC200..IDNP,THP202306

main58677-BZ070iNGC200..IDNP202306

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-BZ150iNGC200,NYC200..IDNP,THP202306

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-BZ080iNGC200,NYC200..MA202306

9 parts on this diagram · 5 diagrams in section
