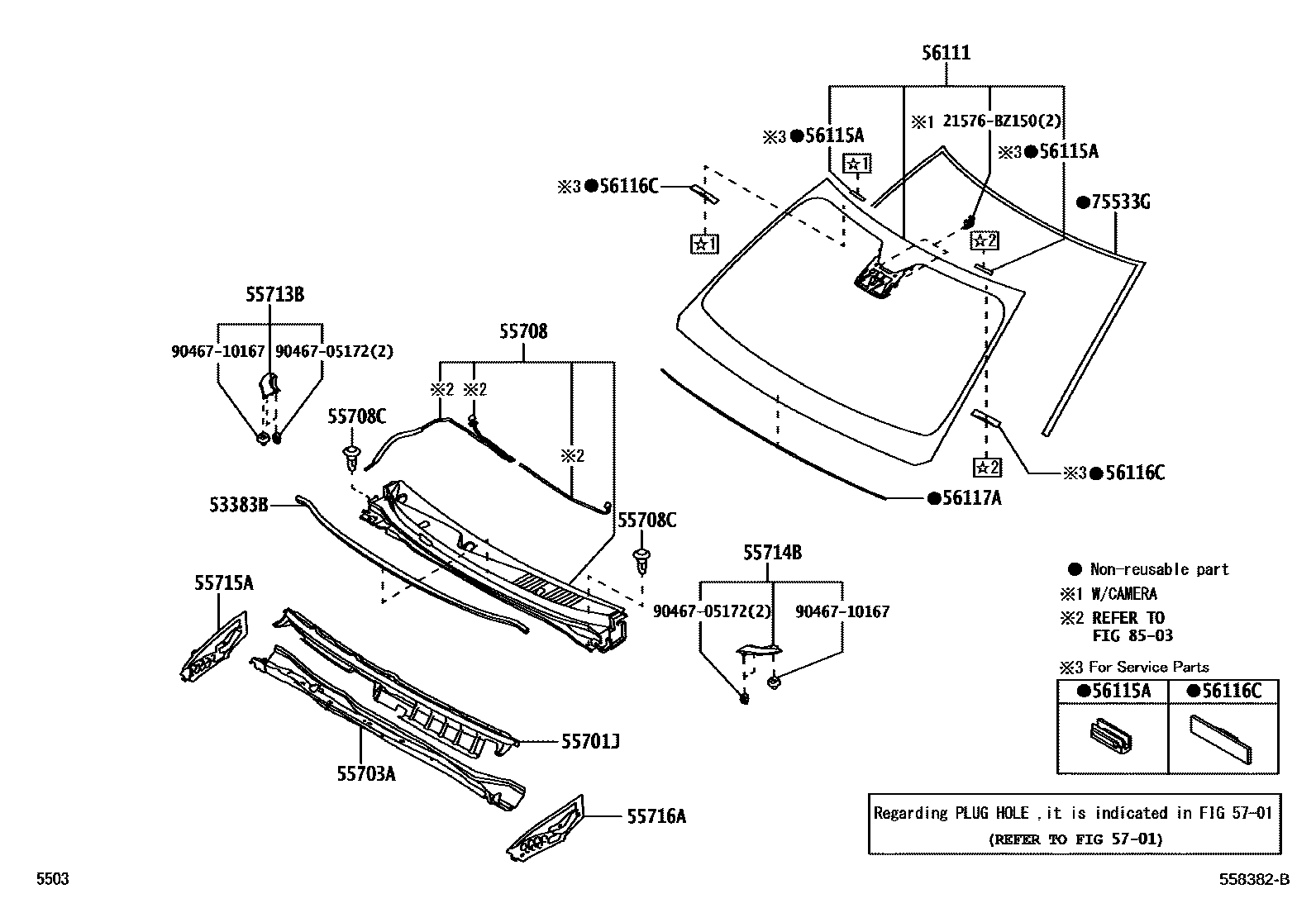

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-BZ210iNGC200,NYC200..IDNP202306

main53383-BZ230iNYC200..TH202310

main53383-BZ270iNGC200,NYC200..MA202406

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-BZ340iNGC200,NYC200..MA202306

main55701-BZ350iNGC200..TAIW202306

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ860iNGC200,NYC200..RHD..(IDNP,THP)202306

main55703-BZ870iNGC200..LHD..IDNP202306

main55703-BZ880iNYC200..LHD202306

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ260iNGC200,NYC200..RHD..(IDNP,THP)202306

main55708-BZ270iNGC200..TAIW202306

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90044-68378iNYC200..TH202310

main9004A-46323iNGC200,NYC200..IDNP202306

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-BZ170iNGC200..TAIW202306

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-BZ170iNGC200,NYC200..IDNP,THP202306

55715ABRACE, COWL TOP TO APRON, RH

main55715-BZ080iNGC200,NYC200..IDNP,THP202306

55716ABRACE, COWL TOP TO APRON, LH

main55716-BZ090iNGC200,NYC200..IDNP,THP202306

56111GLASS, WINDSHIELD

main56101-BZ919iNGC200..TAIW202310

main56101-BZ920iNGC200..M..IDN;NGC200..RHD..(GEN,LA)202306

main56101-BZ921iNGC200..H..IDN202306

main56101-BZ922iNYC200..L..LA;NGC200..LHD..IDNP..(L,M)202306

main56101-BZ923iNYC200..L..TH202310

main56101-BZ924iNGC200,NYC200..MA202406

main56101-BZ925iNYC200..M..TH202310

main56101-BZ926iNGC200..LHD..H..GEN202306

main56101-BZ928iNYC200..RHD..IDNP202306

main56101-BZ929iNYC200..LHD..(H,M)202306

main56101-BZ930iNYC200..H..TH202310

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNGC200,NYC200..IDNP,THP202306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNGC200,NYC200..IDNP,THP202306

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ310iNGC200,NYC200202306

L=1294

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-BZ220iNGC200,NYC200..IDNP,THP202306

8503

21576BZ150CLIP, PUMP STRAINER

main21576-BZ150

9046705172

main90467-05172

9046710167

main90467-10167

19 parts on this diagram · 1 diagram in section
