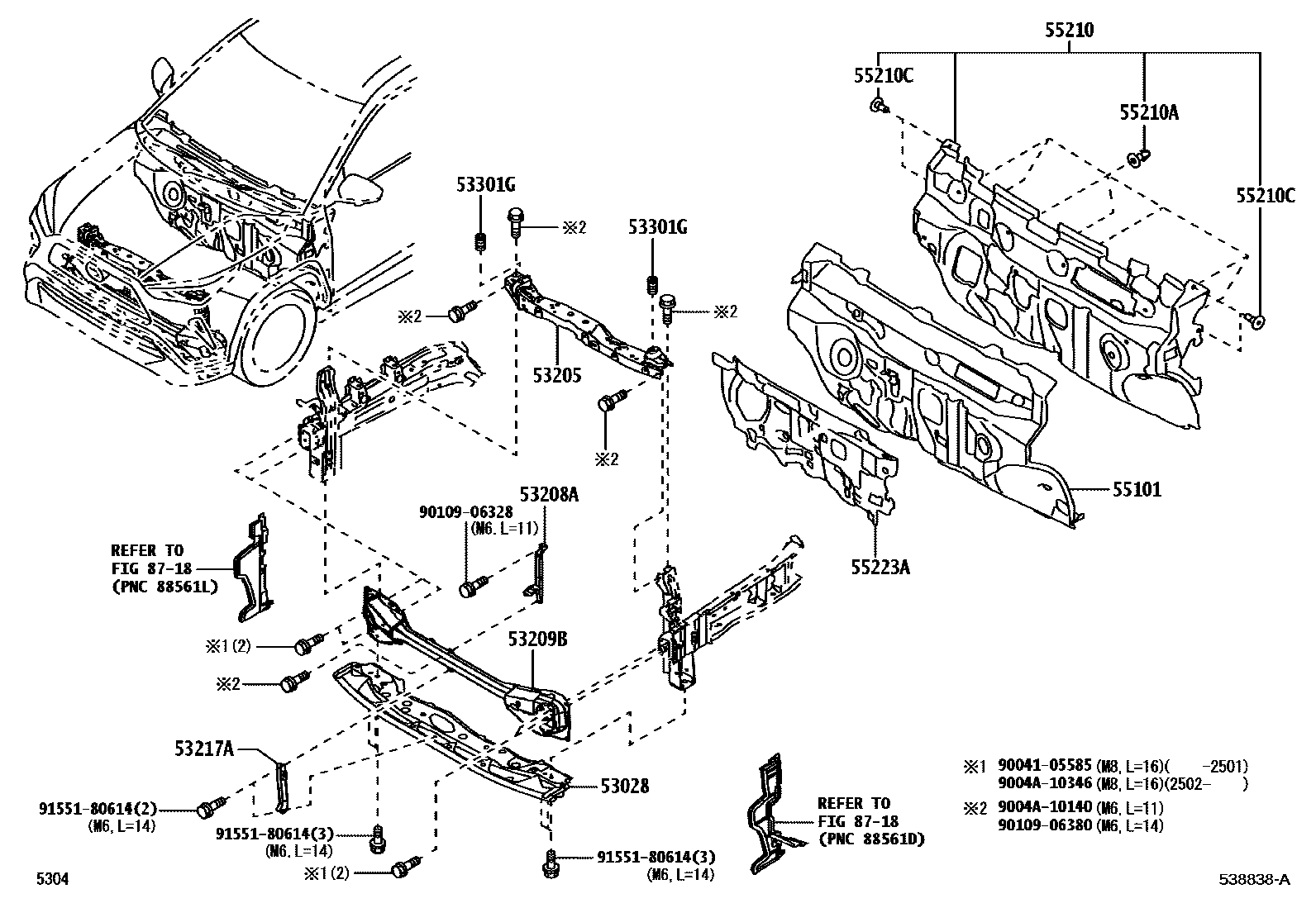

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ340iNGC200,NYC200..IDNP,THP202306

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ260iNGC200..IDNP202306

main53205-BZ270iNYC200..IDNP202306

main53205-BZ280iNYC200..TH202310

main53205-BZ300iNGC200..TAIW202310

main53205-BZ310iNYC200..MA202406

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-BZ170iNGC200..TAIW202306

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-BZ060iNGC200..MA202406

main53209-BZ080iNGC200,NYC200..TAIW,TH202310

main53209-BZ160iNGC200..RHD..IDNP202306

main53209-BZ170iNYC200..IDNP;NGC200..LHD..IDNP202306

53217ABRACE, HOOD LOCK SUPPORT

main53217-BZ030iNGC200..TAIW202306

53301GCUSHION, HOOD BUMPER

main90541-15033iNGC200,NYC200..IDNP,THP202306

55101PANEL SUB-ASSY, DASH

main55101-BZ903iNGC200..MA202406

main55101-BZ904iNYC200..TH202310

main55101-BZT40iNGC200..5F..IDN202306

main55101-BZT60iNGC200..CVT..IDN202306

main55101-BZT70iNGC200..RHD..(GEN,LA)202306

main55101-BZT80iNYC200..IDN202306

main55101-BZT90iNYC200..RHD..(GEN,LA)202306

main55101-BZU10iNGC200..5F..LA202306

main55101-BZU40iNGC200..TAIW202310

main55101-BZU50iNYC200..LHD202306

main55101-BZU90iNGC200..LHD..M..GEN202306

PHILIPPINES

main55101-BZV00iNGC200..LHD..M..LA;NGC200..LHD..IDNP..CVT..(H,L)202306

55210INSULATOR ASSY, DASH PANEL

main55210-BZ780iNGC200..RHD..IDNP202306

main55210-BZ790iNYC200..MA202306

main55210-BZ800iNGC200..TAIW202306

main55210-BZ810iNYC200..LHD202306

main55210-BZA30iNYC200..TH202310

55210ACLIP

main90467-11122iNGC200..TAIW202306

55210CCLIP

main90467-13079iNGC200,NYC200..IDNP,THP202306

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ300iNGC200..MA202306

main55223-BZ310iNYC200..MA202306

main55223-BZ320iNGC200..LHD..IDNP202306

main55223-BZ330iNYC200..LHD202306

main55223-BZ460iNYC200..TH202310

main55223-BZ470iNGC200..TAIW202310

8718

9004105585

main90041-05585

9004A10140

main9004A-10140

9004A10346

main9004A-10346

9010906328

main90109-06328

9010906380

main90109-06380

9155180614

main91551-80614

18 parts on this diagram · 4 diagrams in section
