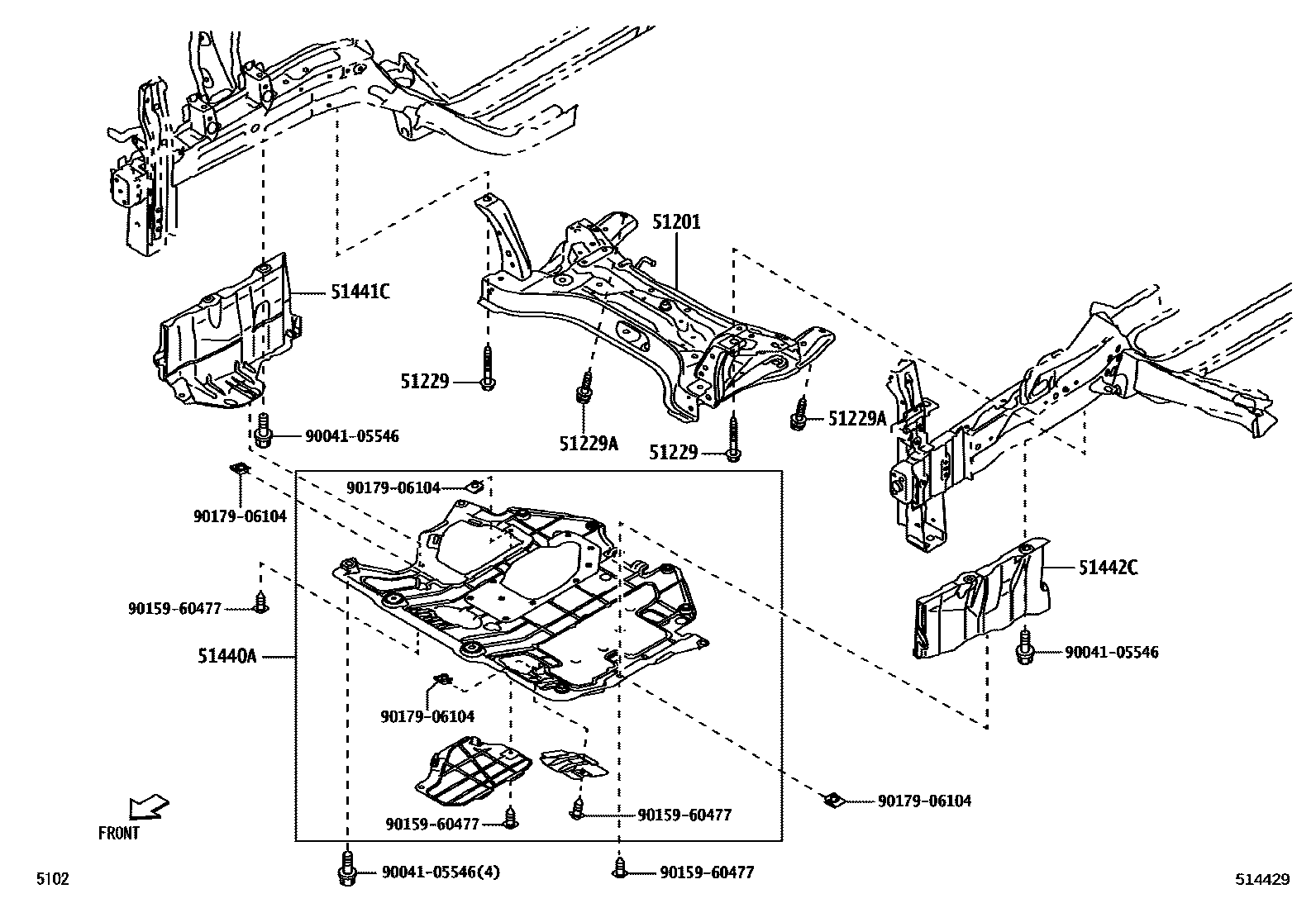

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ161iNGC200..TAIW202306

main51201-BZ200iNYC200..IDNP202306

main51201-BZ210iNYC200..TH202310

main51201-BZ250iNYC200..MA202406

51229BOLT, SUSPENSION MEMBER SET

main90041-05594iNGC200,NYC200..MA202306

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025iNGC200202306-202501

M10,L=31

51440ACOVER ASSY, ENGINE UNDER

main51405-BZ130iNGC200..TAIW202310

main51405-BZ170iNGC200,NYC200..IDNP,THP202306

51441CCOVER, ENGINE UNDER, RH

main51441-BZ340iNGC200..IDNP202306

main51441-BZ390iNYC200..IDNP202306

main51441-BZ400iNYC200..TH202310

main51441-BZ410iNGC200..TAIW202310

51442CCOVER, ENGINE UNDER, LH

main51442-BZ150iNGC200..IDNP202306

main51442-BZ190iNYC200..IDNP202306

main51442-BZ210iNYC200..TH202310

main51442-BZ220iNGC200..TAIW202310

9004105546

main90041-05546

9015960477

main90159-60477

9017906104

main90179-06104

9 parts on this diagram · 2 diagrams in section
