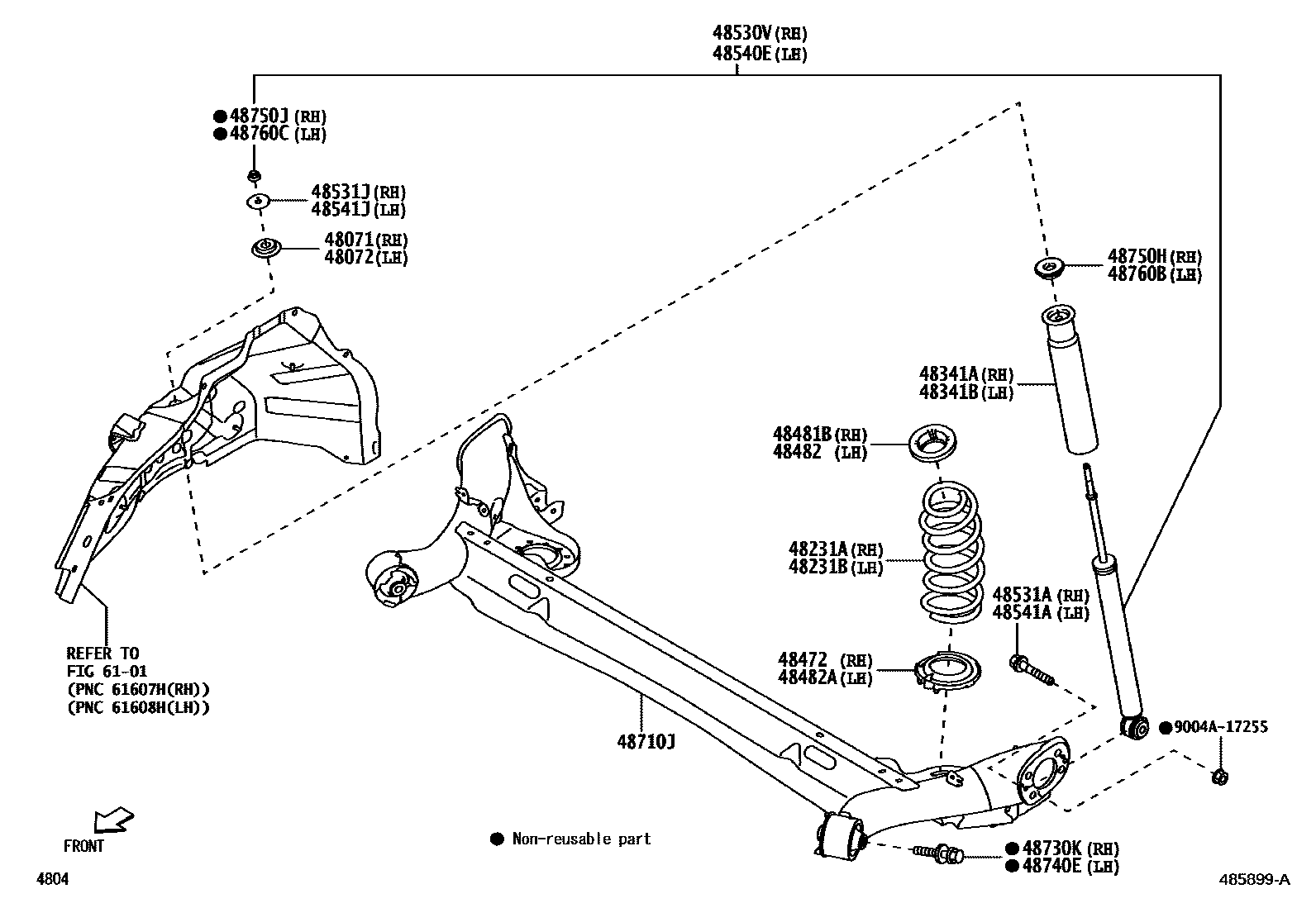

REAR SPRING & SHOCK ABSORBER
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48472SEAT, REAR SPRING, LOWER
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48482ASEAT, REAR SPRING, LOWER
48530VABSORBER SET, SHOCK, REAR RH
MARK 48531-BZC50
MARK 48531-BZC60
MARK 48531-BZE40
MARK 48531-BZE50
MARK 48531-BZE60
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
JAPAN SOURCED PARTS
IDN SOURCED PARTS
48540EABSORBER SET, SHOCK, REAR LH
MARK 48531-BZC50
MARK 48531-BZC60
MARK 48531-BZE40
MARK 48531-BZE50
MARK 48531-BZE60
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
JAPAN SOURCED PARTS
IDN SOURCED PARTS
48710JARM ASSY, REAR SUSPENSION, NO.1
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
JAPAN SOURCED PARTS
M12,L=129
IDN SOURCED PARTS
THA SOURCED PARTS
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
JAPAN SOURCED PARTS
M12,L=129
IDN SOURCED PARTS
THA SOURCED PARTS
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
6101
9004A17255
main9004A-17255
25 parts on this diagram · 1 diagram in section
