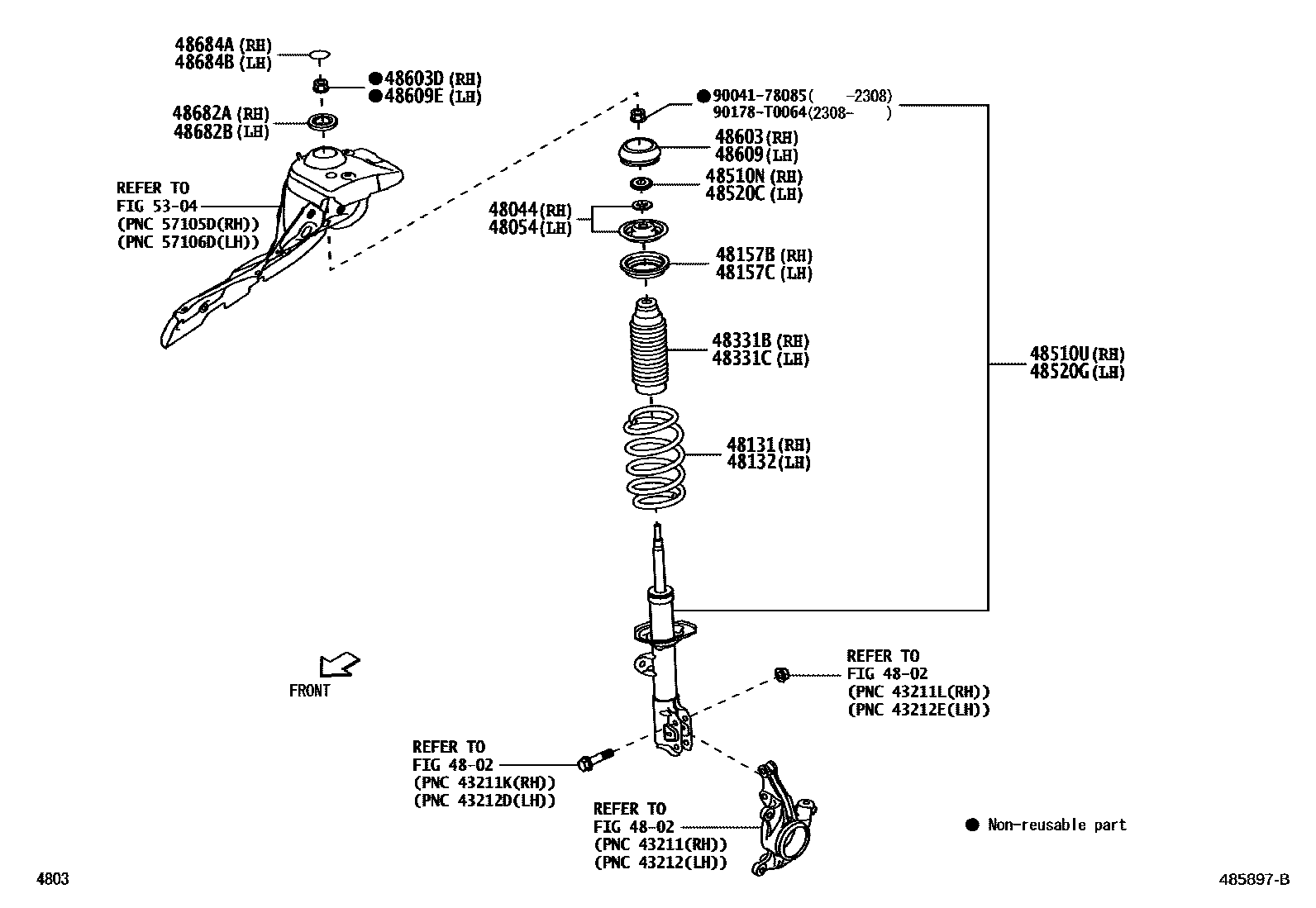

FRONT SPRING & SHOCK ABSORBER
4802
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48054SEAT SUB-ASSY, FRONT SPRING, NO.2
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510UABSORBER SET, SHOCK, FRONT RH
MARK 48510-BZG50
MARK 48510-BZG60
MARK 48510-BZK50
MARK 48510-BZK60
MARK 48510-BZK70
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48520GABSORBER SET, SHOCK, FRONT LH
MARK 48520-BZC50
MARK 48520-BZC60
MARK 48520-BZE40
MARK 48520-BZE50
MARK 48520-BZE60
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
5304
9004178085
90178T0064
main90178-T0064
24 parts on this diagram · 2 diagrams in section
