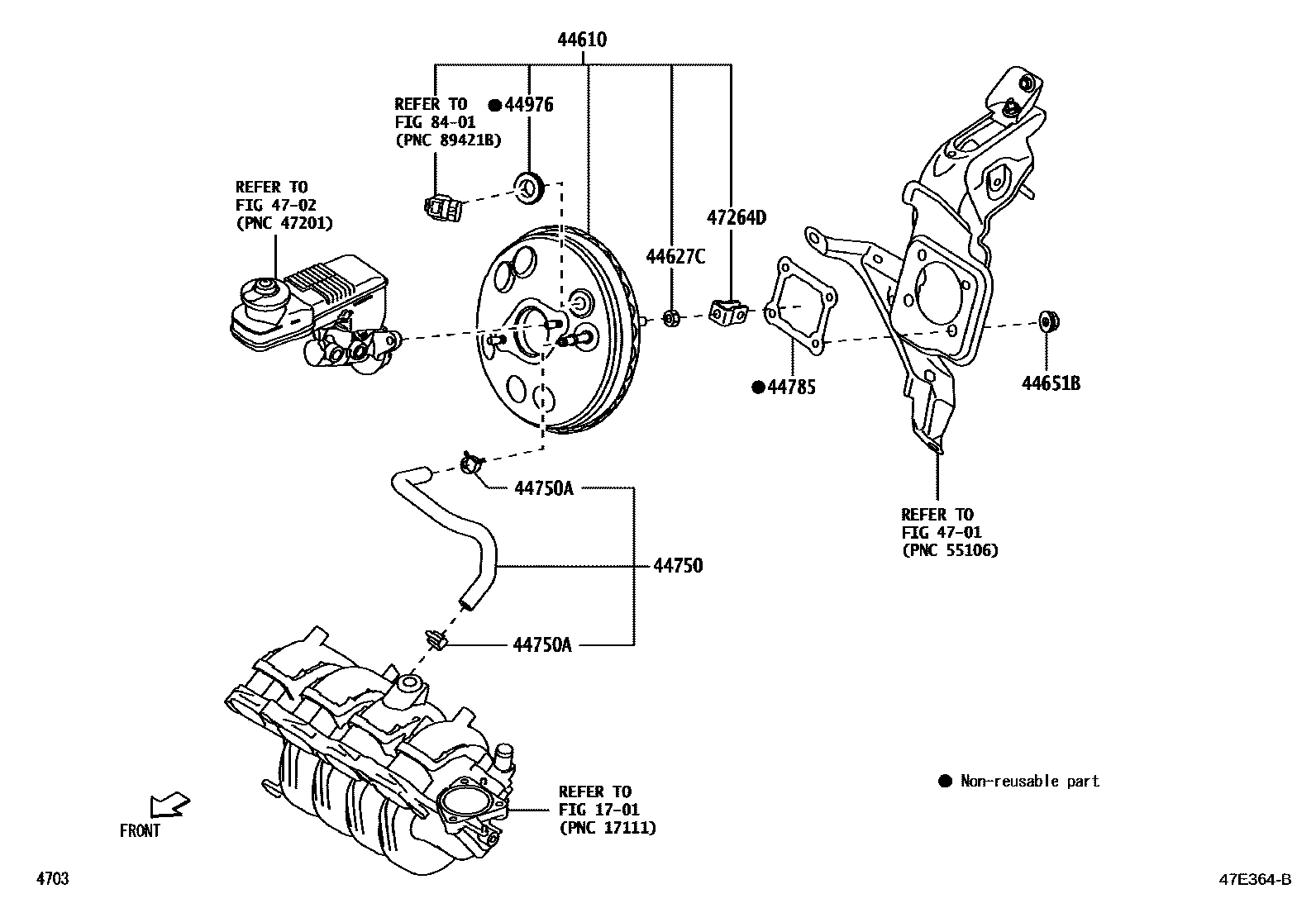

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1W/EJECTOR 0004 1W/EJECTOR

1701

44610BOOSTER ASSY, BRAKE

main44610-BZ730iNGC200..RHD..IDNP202306

main44610-BZA10iNGC200..LHD..IDNP202306

main44610-BZA30iNGC200..TAIW202310

main44610-BZB80iNGC200..MA202406

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17229iNGC200..IDNP202306

main94130-01002iNGC200..MA202406

44651BNUT, BOOSTER

main90041-79300iNGC200..IDNP202306

44750HOSE ASSY, VACUUM

main44750-BZ450iNGC200..RHD..IDNP202306

main44750-BZ460iNGC200..LHD..CVT..LA202306

DESTINATION PACKAGE(OTHER-BOLIVIA

main44750-BZ460iNGC200..LHD..CVT..LA202306

DESTINATION PACKAGE(OTHER-PERU

main44750-BZ510iNGC200..MA202406

main44750-BZ610iNGC200..TAIW202310

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iNGC200..IDNP202306

DESTINATION PACKAGE(OTHER-BOLIVIA

main90044-67161iNGC200..LHD..CVT..LA202306

DESTINATION PACKAGE(OTHER-PERU

main90044-67161iNGC200..TAIW202310

44785GASKET, BRAKE BOOSTER

main47275-BZ010iNGC200..IDNP202306

sub47278-87703

44976SEAL, BOOSTER

main44685-B2010iNGC200..IDNP,TAIWP202306

main44685-BZ030iNGC200..MA202406

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iNGC200..IDNP202306

8401

12 parts on this diagram · 4 diagrams in section
