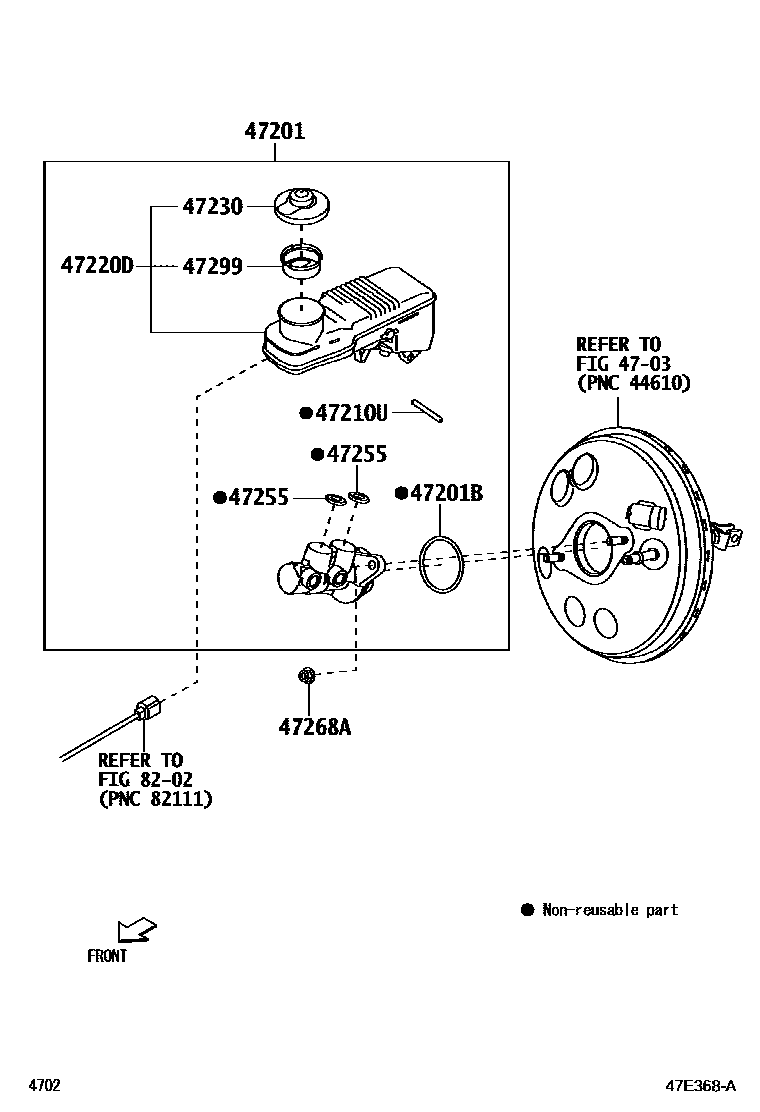

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47050-B1010iNYC200..L..TH202310

main47050-B1010iNYC200..RHD..GEN202306

NEPAL&ACTIVE SAFETY PACKAGE-W/O

main47050-B1010iNYC200..RHD..GEN202306

BHUTAN&ACTIVE SAFETY PACKAGE-W/O

main47050-B1020iNYC200..MA202306

main47050-B1050iNYC200..L..LA202306

main47050-B1070iNYC200..LHD..(H,M)202306

main47201-BZ700iNGC200..MA202406

main47201-BZ760iNGC200..RHD..IDNP..CVT202306

main47201-BZ770iNGC200..5F..IDN202306

main47201-BZB90iNGC200..LHD..IDNP..CVT202306

main47201-BZC00iNGC200..5F..LA202306

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main9004A-30046iNGC200..IDNP202306

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iNGC200..IDNP,TAIWP202306

main9004A-24026iNGC200..MA202406

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-BZ270iNGC200..MA202406

main47220-BZ380iNGC200..RHD..IDNP..CVT202306

main47220-BZ490iNGC200..5F..IDN202306

main47220-BZ500iNGC200..LHD..IDNP..CVT202306

main47220-BZ510iNGC200..5F..LA202306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iNYC200..IDNP,THP202306

main47230-BZ130iNGC200..IDNP202306

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ100iNGC200..MA202406

main47255-BZ110iNGC200..IDNP202306

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iNGC200..IDNP202306

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iNGC200..IDNP202306

8202

10 parts on this diagram · 3 diagrams in section
