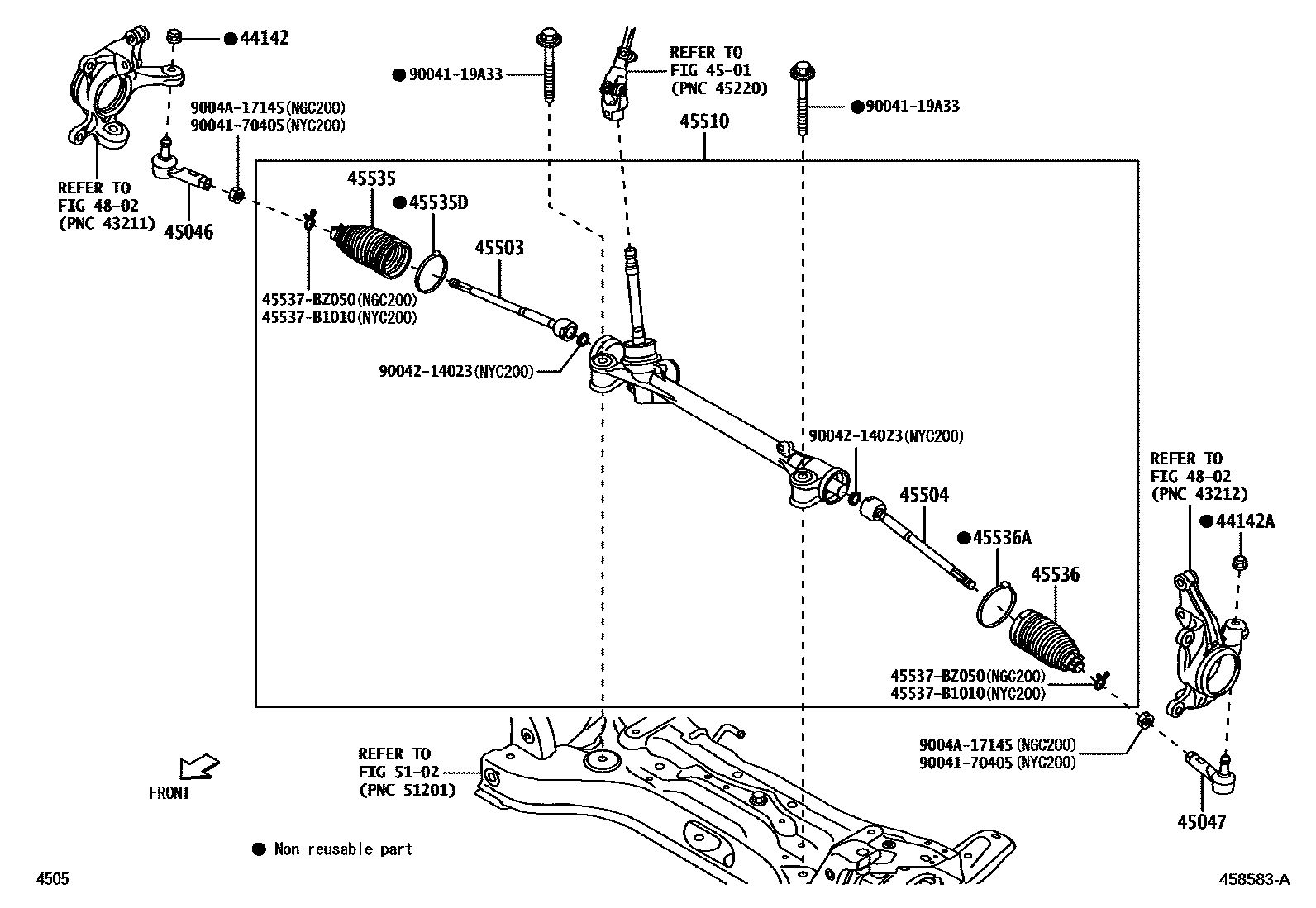

FRONT STEERING GEAR & LINK

0001 1RHD 0002 1LHD

44142NUT, LOCK

main90041-77011iNGC200,NYC200..IDNP,THP202306

44142ANUT, LOCK, NO.1

main90041-77011iNGC200,NYC200..IDNP,THP202306

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-B1060iNYC200202306-202312

sub45046-B1061

main45046-B1061iNYC200202401

main45046-BZ350iNGC200..IDNP,TAIWP202306

main45046-BZ370iNGC200..MA202406

45047END SUB-ASSY, TIE ROD, LH

main45046-B1060iNYC200202306-202312

sub45046-B1061

main45046-B1061iNYC200202401

main45046-BZ350iNGC200..IDNP,TAIWP202306

main45046-BZ370iNGC200..MA202406

45503END SUB-ASSY, STEERING RACK

main45503-B1050iNYC200..MA202306

main45503-BZ260iNGC200..TAIW202306

main45503-BZ360iNGC200..MA202406

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-B1050iNYC200..IDNP,THP202306

main45503-BZ260iNGC200..IDNP202306

main45503-BZ360iNGC200..MA202406

45510GEAR ASSY, STEERING

main45510-B1450iNYC200..RHD..(IDNP,THP)202306

main45510-B1460iNYC200..LHD202306

main45510-BZ670iNGC200..RHD..IDNP202306

main45510-BZ690iNGC200..TAIW202306

main45510-BZ780iNGC200..MA202406

45535BOOT, STEERING RACK, NO.1

main45535-B1020iNYC200..IDNP,THP202306

main45535-BZ200iNGC200..TAIW202306

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-B1010iNYC200..MA202306

main45538-BZ080iNGC200..IDNP202306

45536BOOT, STEERING RACK, NO.2

main45535-B1020iNYC200..MA202306

main45535-BZ200iNGC200..MA202306

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-B1010iNYC200..MA202306

main45538-BZ080iNGC200..MA202306

4802

5102

45537B1010

main45537-B1010

45537BZ050

main45537-BZ050

9004119A33

main90041-19A33

9004170405

main90041-70405

9004214023

main90042-14023

9004A17145

main9004A-17145

20 parts on this diagram · 2 diagrams in section
