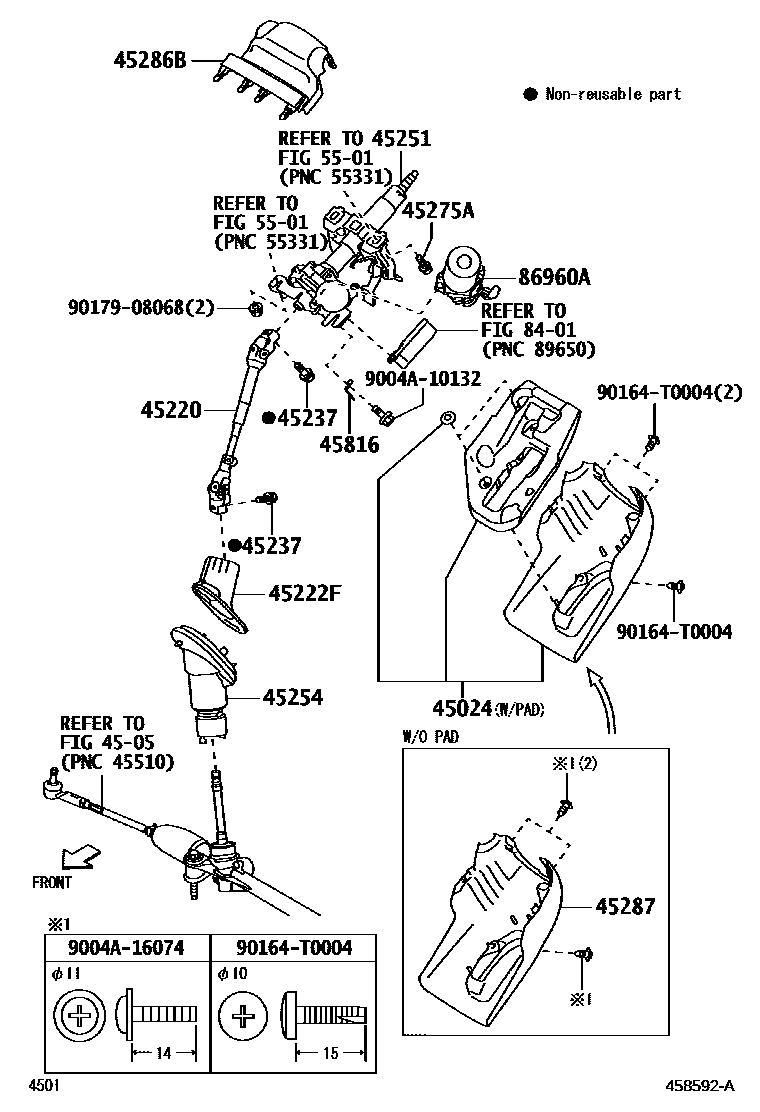

STEERING COLUMN & SHAFT

0001 1RHD 0002 1LHD 0003 1LHD

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ210-C0iNGC200,NYC200..MA202306

BLACK,TRIM2#

main45024-BZ220-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main45024-BZ220-C0iNYC200..(L,M)..TH202310

BLACK,TRIM2#

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ450iNGC200,NYC200..RHD..IDNP202306

main45220-BZ460iNGC200,NYC200..LHD202306

main45220-BZ610iNGC200,NYC200..MA,TH202310

45222FCOVER, DUST

main45222-BZ210iNGC200,NYC200..RHD..(IDNP,THP)202306

main45222-BZ220iNGC200,NYC200..LHD..IDNP202306

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90041-19747iNGC200,NYC200..IDNP202306

45251TUBE SET, STEERING COLUMN

main45251-B9440iNYC200..TH202310

main45251-B9450iNGC200..5F..IDN202306

main45251-B9480iNGC200..5F..LA202306

main45251-B9490iNGC200..H..TAIW202306

main45251-B9500iNYC200..LHD..(H,M)202306

main45251-B9510iNYC200..L..LA202306

main45251-B9520iNGC200..(L,M)..TAIW202306

main45251-B9540iNGC200,NYC200..RHD..IDNP..CVT202306

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ270iNGC200,NYC200..MA202306

main45254-BZ280iNGC200,NYC200..LHD..IDNP202306

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90041-20097iNGC200,NYC200..MA202306

45286BCOVER, STEERING COLUMN, UPR

main45023-BZ040-C0iNGC200,NYC200..MA202306

BLACK,TRIM2#

main45023-BZ050-C0iNYC200..(L,M)..TH202310

BLACK,TRIM2#

main45023-BZ050-C0iNYC200..(L,M)..TH202310

BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45287-BZ570-C0iNGC200,NYC200..LA202306

NEPAL,BLACK,TRIM2#

main45287-BZ570-C0iNGC200,NYC200..LA202306

BHUTAN,BLACK,TRIM2#

main45287-BZ570-C0iNGC200,NYC200..LA202306

EAST TIMOR,BLACK,TRIM2#

main45287-BZ570-C0iNGC200,NYC200..RHD..H..GEN202306

BLACK,TRIM2#

45816BRACKET, WIRE HARNESS

main82715-BZE80iNGC200;NYC200..RHD202306

main82715-BZR20iNYC200..LHD202306

5501

8401

86960AMOTOR SET, POWER STEERING

main80960-B9220iNGC200,NYC200..MA202310

main80960-B9240iNYC200..LHD202306

main80960-B9250iNGC200..IDNP;NYC200..RHD..IDNP202306

9004A10132

main9004A-10132

9004A16074

main9004A-16074

90164T0004

main90164-T0004

9017908068

main90179-08068

18 parts on this diagram · 3 diagrams in section
