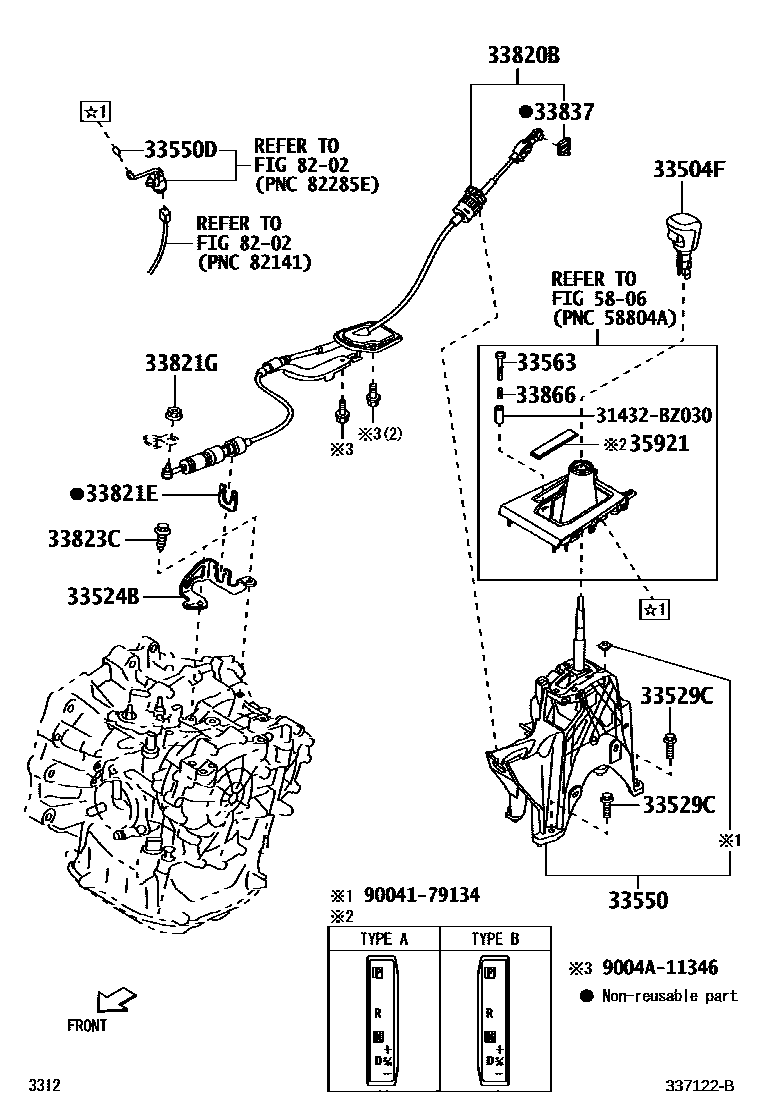

SHIFT LEVER & RETAINER

0001 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ282-C1iNYC200..LA;NGC200..RHD..CVT..M;NGC200..LHD..CVT..(LA,TAIW)202306

BLACK,TRIM2#

main33504-BZ294-C4iNYC200..H..TH202310

PIANO BLACK,TRIM1#,2#

main33504-BZ294-C4iNYC200..(L,M)..TH;NGC200..LHD..M..GEN;NGC200,NYC200..(IDNP,MAP)..H202306

PIANO BLACK,TRIM2#

main33504-BZ300-C1iNGC200..5F202306

BLACK,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-BZ040iNGC200..TAIW202306

main33524-BZ050iNGC200..MA202406

main33524-BZ100iNYC200..MA202306

33529CBOLT, SHIFT LEVER

main9004A-11274iNGC200..TAIW202306

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ581-C0iNGC200..IDNP..CVT202306

BLACK,TRIM2#

main33550-BZ601-C0iNGC200..5F202306

BLACK,TRIM2#

main33550-BZ631-C0iNGC200..MA202406

BLACK,TRIM2#

main33550-BZ860-C0iNYC200..L,M;NYC200..IDNP..H202306

BLACK,TRIM2#

main33550-BZ860-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

33550DBULB, POSITION INDICATOR LAMP

main35955-B2040iNGC200,NYC200..MA202406

main35955-BZ030iNGC200..TAIW202306

main35955-BZ070iNYC200..TH202310

33563BUTTON, SHIFT LOCK RELEASE

main33563-BZ040-C0iNGC200..TAIW202310

BLACK,TRIM2#

main33563-BZ080-C0iNYC200..H..TH202310

BLACK,TRIM1#,2#

main33563-BZ080-C0iNYC200..L,M;NYC200..IDNP..H;NGC200..IDNP..CVT202306

BLACK,TRIM2#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ440iNGC200..(IDNP,TAIWP)..CVT202306

main33820-BZ451iNGC200..5F202306

main33820-BZ460iNGC200..MA202406

main33820-BZ540iNYC200..MA202406

main33820-BZ550iNYC200..TH202306-202408

main33820-BZ580iNYC200..IDNP202409

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010iNGC200..TAIW202306

main90468-14016iNYC200..MA202306

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main9004A-17243iNYC200..IDNP202306

THA/IDN SOURCED PART

main9004A-17243iNYC200..TH202310

IDN SOURCED PARTS

main90178-T0019iNYC200..MA202310

THA SOURCED PARTS

main90178-T0019iNYC200..IDNP202306

THA/IDN/MYS SOURCED

main90179-06274iNGC200..MA202306

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ090iNGC200..5F202306

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main9004A-10127iNGC200,NYC200..IDNP,THP202306

IDN SOURCED PARTS

main90105-T0120iNYC200..TH;NGC200..IDNP..CVT202306

THA/IDN SOURCED PART

main90105-T0120iNGC200..5F;NYC200..IDNP202306

THA SOURCED PARTS

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iNGC200,NYC200..CVT202306

main90044-68076iNGC200..5F202306

33866SPRING, SHIFT LOCK RELEASE

main33866-BZ010iNGC200,NYC200..MA202306

main33866-BZ050iNYC200..TH202310

35921PLATE, CONTROL POSITION INDICATOR

main35921-BZ240iNYC200..RHD..IDNP202306

TYPE A

main35921-BZ290iNYC200..LHD202306

TYPE B

main35921-BZ310iNYC200..TH202310

TYPE A

main35921-BZ320iNGC200..RHD..IDNP..CVT202306

TYPE A

main35921-BZ330iNGC200..LHD..IDNP..CVT202306

TYPE B

5806

8202

31432BZ030WASHER, CLUTCH RESERVOIR SET BOLT

main31432-BZ030

9004179134

main90041-79134

9004A11346

main9004A-11346

19 parts on this diagram · 5 diagrams in section
