CLUTCH MASTER CYLINDER

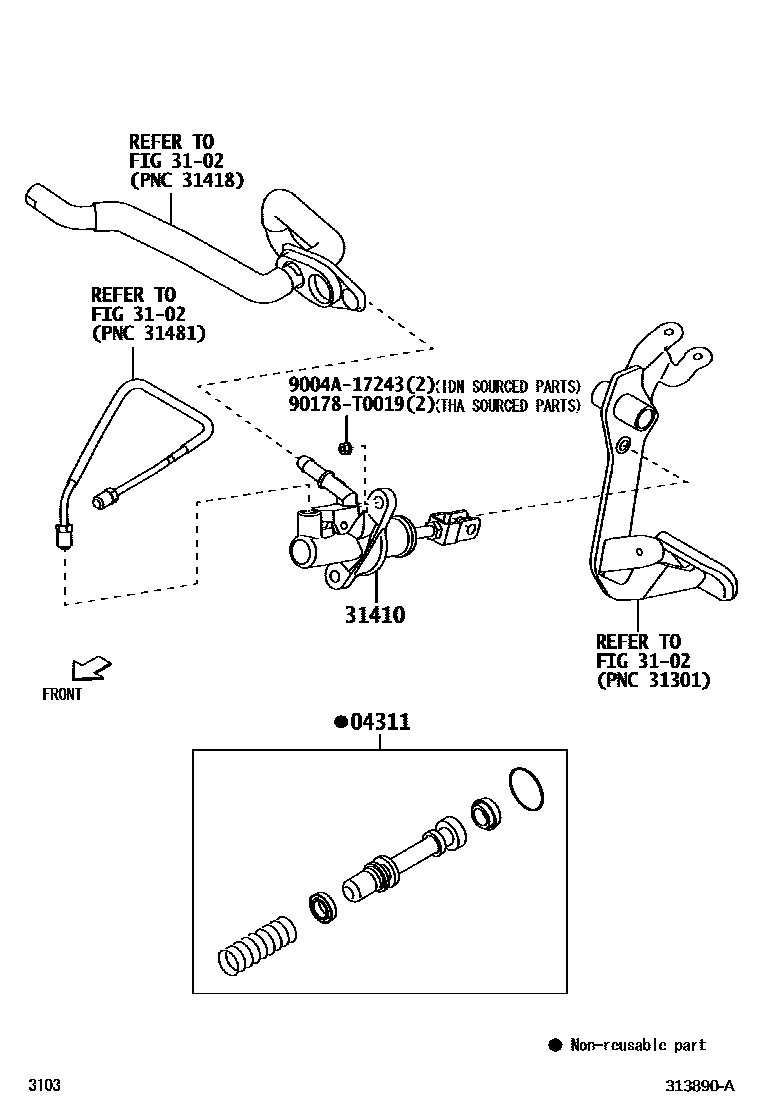

Parts diagram

04311CYLINDER KIT, CLUTCH MASTER

main04311-BZ020i202306

3102

31410CYLINDER ASSY, CLUTCH MASTER

main31420-BZ040i202306

9004A17243

main9004A-17243

90178T0019

main90178-T0019

5 parts on this diagram · 1 diagram in section
