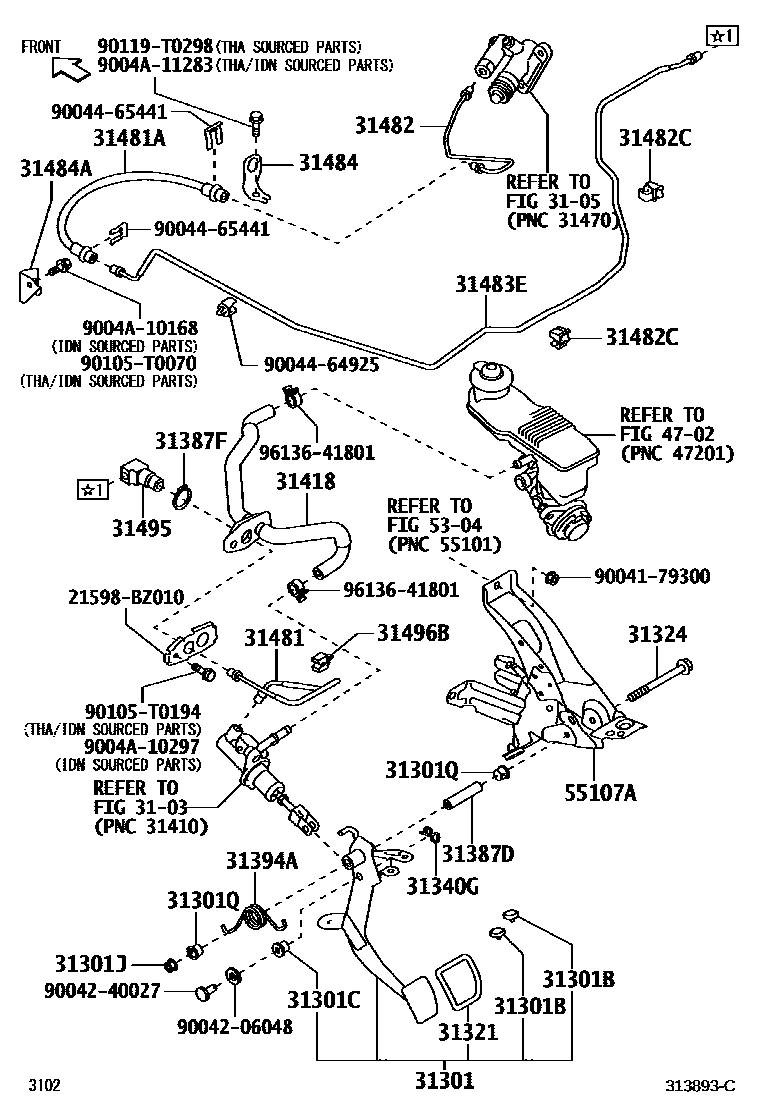

CLUTCH PEDAL & FLEXIBLE HOSE
3103
3105
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31301QBUSH(FOR CLUTCH PEDAL SPRING)
31324SHAFT, CLUTCH PEDAL
31340GCLIP(FOR CLUTCH RELEASE CABLE)
31387DSPACER(FOR CLUTCH RELEASE SECTOR)
31387FRING, SNAP
31394ASPRING, PEDAL W/HOOK
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481AHOSE, CLUTCH, NO.1
31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482CCLAMP(FOR CLUTCH TUBE)
31483ETUBE, BLEEDER CLUTCH RELEASE
31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31495WAY, CLUTCH TUBE
31496BCLAMP, CLUTCH TUBE
4702
5304
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
21598BZ010RETAINER(FOR INJECTION PUMP BALL BEARING)
main21598-BZ010
9004179300
main90041-79300
9004206048
main90042-06048
9004240027
main90042-40027
9004464925
main90044-64925
9004465441
main90044-65441
9004A10168
main9004A-10168
9004A10297
main9004A-10297
9004A11283
main9004A-11283
90105T0070
main90105-T0070
90105T0194
main90105-T0194
90119T0298
main90119-T0298
9613641801
main96136-41801
39 parts on this diagram · 2 diagrams in section
