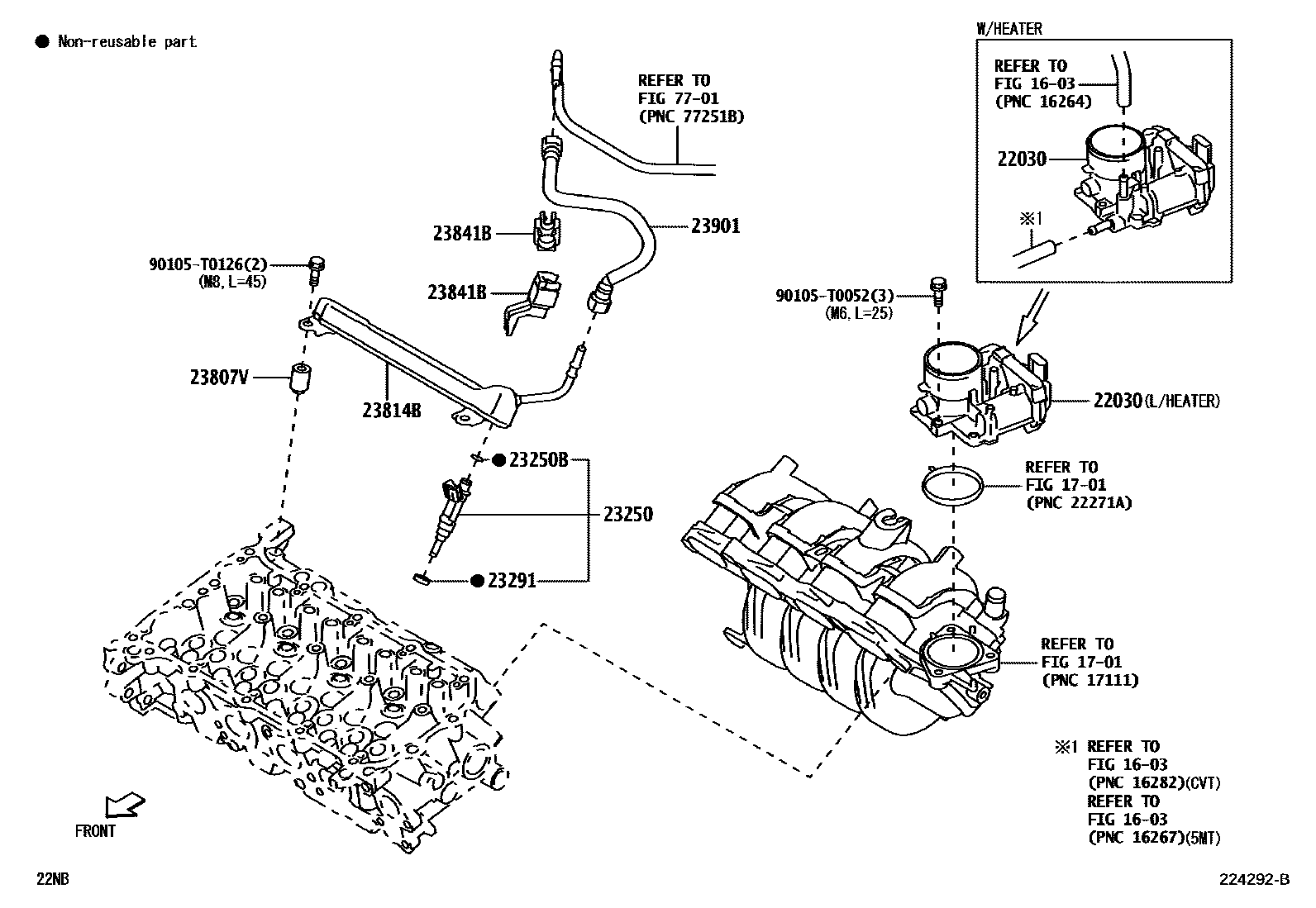

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-BZ150i2NRVE..NGC200..LHD..M..GEN;2NR#..NGC200,NYC200..IDN,MA,TH202306

PHILIPPINES

main22030-BZ160i2NRVE..NGC200..LHD..H..GEN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..(LA,TAIW)202306

main22030-BZ180i2NRVEX..NYC200..GEN,LA202306

23250INJECTOR ASSY, FUEL

main23209-09340i2NRVE..NGC200202306

main23209-B9080i2NRVEX..NYC200..TH202310

main23209-B9090i2NRVEX..NYC200..IDNP,MAP202306

23250BRING, O(FOR FUEL INJECTOR)

main9004A-30072i2NRVEX..NYC200..IDNP,THP202306

main90301-07042i2NRVE..NGC200..IDNP,TAIWP202306

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

main23291-0Y050i2NRVEX..NYC200..TH202310

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i2NR#..NGC200,NYC200202306

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NR#..NGC200,NYC200202306

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i2NR#..NGC200,NYC200..IDNP,THP202306

23901TUBE SUB-ASSY, FUEL

main23901-BZ160i2NRVE..NGC200..IDNP202306

main23901-BZ170i2NRVE..NGC200..MA202406

main23901-BZ280i2NRVEX..NYC200..RHD..IDNP202306

main23901-BZ300i2NRVEX..NYC200..LHD202306

main23901-BZ310i2NRVEX..NYC200..TH202310

main23901-BZ370i2NRVEX..NYC200..MA202406

7701

90105T0052

main90105-T0052

90105T0126

main90105-T0126

13 parts on this diagram · 2 diagrams in section
