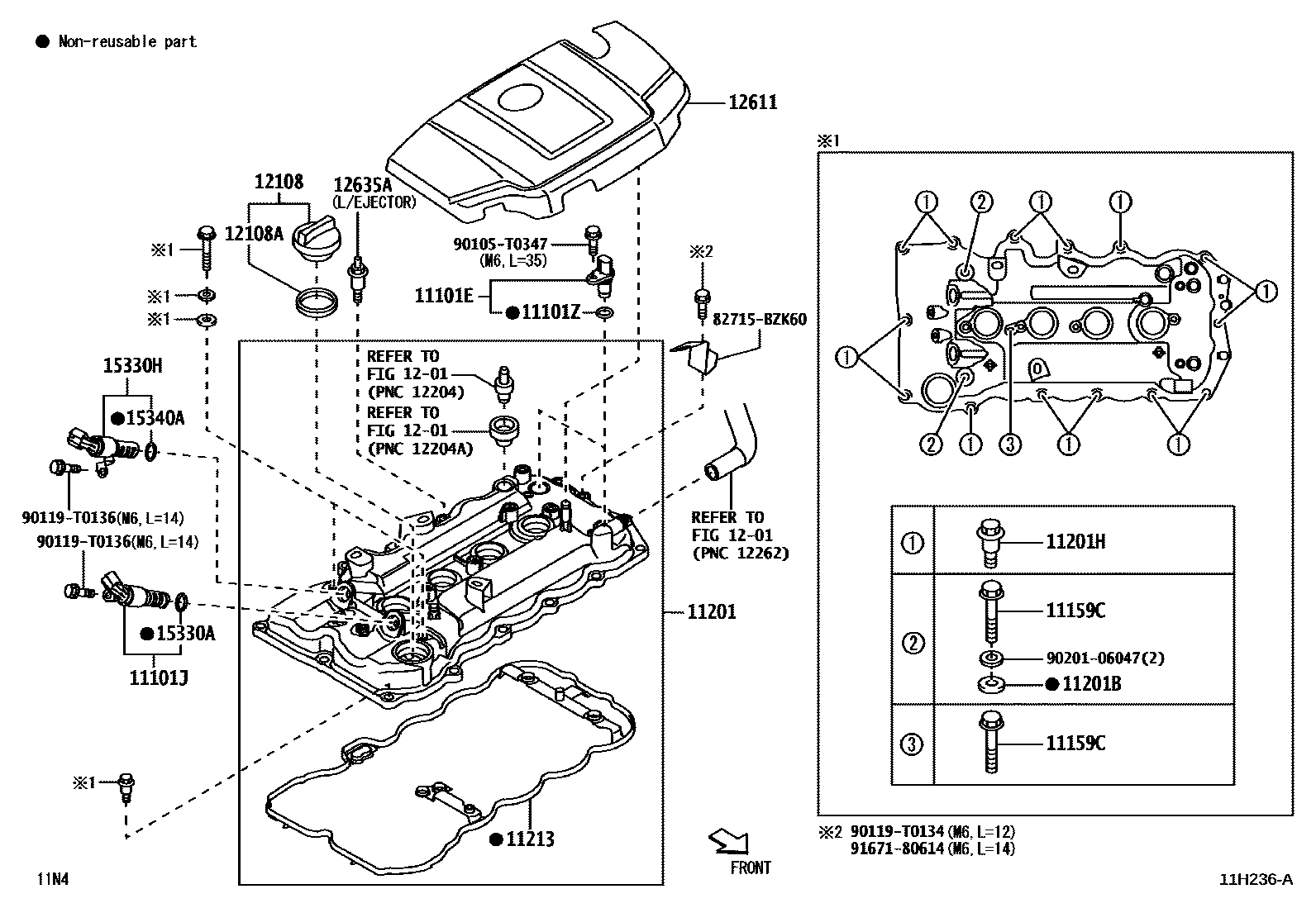

CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD COVER 0003 1CYLINDER HEAD 0005 1CYLINDER HEAD COVER 0006 1CYLINDER HEAD 0007 1CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-B9625i2NRVE..NGC200..IDN;2NRVE..NGC200..LHD..M..GEN202306

PHILIPPINES

main11101-B9635i2NRVE..NGC200..LHD..H..GEN;2NRVE..NGC200..RHD..(GEN,LA);2NRVE..NGC200..LHD..(LA,TAIW)202306

main11101-B9641i2NRVE..NGC200..MA202406

main11101-B9651i2NRVEX..NYC200..GEN,LA202306

main11101-B9655i2NRVEX..NYC200..IDN202306

PHILIPPINES

main11101-B9810i2NRVEX..NYC200..TH202310

main11101-B9820i2NRVEX..NYC200..MA202406

11101ESENSOR, CAM POSITION

main90919-T5002i2NR#..NGC200,NYC200202306

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y060i2NR#..NGC200,NYC200202306

11101ZO RING, CAM POSITION SENSOR

main9004A-30059i2NR#..NGC200,NYC200202306

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i2NR#..NGC200,NYC200202306

M6,L=35

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ160i2NRVE..NGC200202306

main11201-BZ180i2NRVEX..NYC200202306

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-T0001i2NRVEX..NYC200..TH202310

main90210-T0002i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

11201HBOLT(FOR CYLINDER HEAD COVER)

main90109-T0055i2NR#..NGC200,NYC200202306

M6,L=23.5

11213GASKET, CYLINDER HEAD COVER

main11213-BZ110i2NR#..NGC200,NYC200202306

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2NR#..NGC200,NYC200202306

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i2NR#..NGC200,NYC200202306

12611COVER, ENGINE, NO.1

main12611-BZ030i2NR#..NGC200,NYC200..IDNP202306

main12611-BZ040i2NRVEX..NYC200..TH202310

main12611-BZ050i2NRVE..NGC200..TAIW202310

main12611-BZ090i2NR#..NGC200,NYC200..MA202406

12635AJOINT, ENGINE COVER

main12635-BZ010i2NR#..NGC200,NYC200..IDNP,THP202306

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

15330HVALVE ASSY, CAM TIMING OIL CONTROL

main15330-0Y050i2NR#..NGC200,NYC200202306

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i2NR#..NGC200,NYC200..IDNP,MAP,TAIWP202306

82715BZK60BRACKET,WIRING HARNESS CLAMP

main82715-BZK60

90105T0347

main90105-T0347

90119T0134

main90119-T0134

90119T0136

main90119-T0136

9020106047

main90201-06047

9167180614

main91671-80614

23 parts on this diagram · 6 diagrams in section
